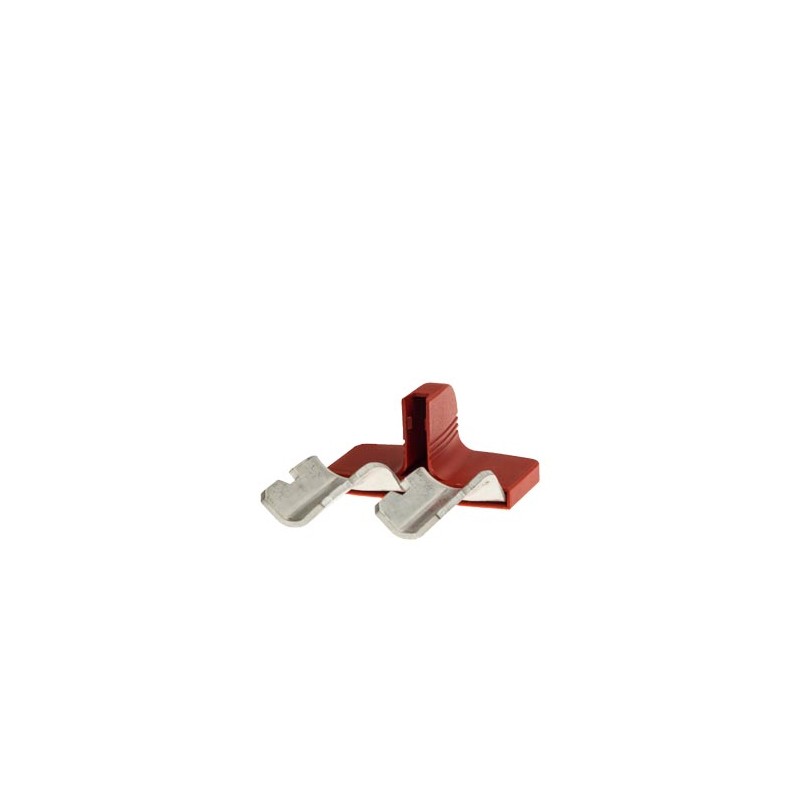

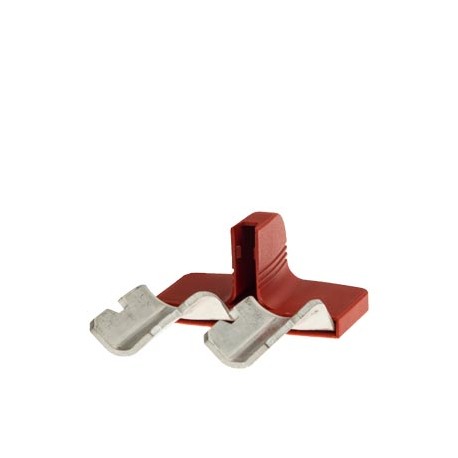

8WH9020-3AD00 SIEMENS jumper, 2-pole for iPo terminals 95 mm2
8WH9020-3AD00
SIEMENS
5
jumper, 2-pole for iPo terminals 95 mm2
BRIDGE 2 POLES FOR TERMINALS IPO 95 mm2 ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 5 Units ** ). Cancelations and returns limited. Consult conditions.
Terminal blocks > Cross-connector for terminal block
POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Terminals
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 8WH9020-3AD00 | |||||||||||||||||||||||||||||||||
| Product Description | jumper, 2-pole for iPo terminals 95 mm2 | |||||||||||||||||||||||||||||||||
| Product family | Ordering Data Overview | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12X / 1BT | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 5 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,052 Kg | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 52,00 x 82,00 x 4,00 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Minimum order quantity | 5 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4001869533414 | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 85369010 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10 | |||||||||||||||||||||||||||||||||
| Product Group | 5558 | |||||||||||||||||||||||||||||||||
| Group Code | P310 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2016 | |||||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000489 - Cross-connector for terminal block
| Value | Unit | |
|---|---|---|
| Model (EF000010) | Transverse connector | |
| Number of bridged clamps (EF002550) | 2 | |
| Explosion-tested version 'Ex e' (EF008498) | false | |
| Rated current In (EF008250) | 150.0 | A |
| Rated voltage (EF000228) | 1500 | V |
| Insulated (EF000019) | true | |
| With shock protection (EF008186) | true | |
| Mounting method (EF000003) | Pluggable | |
| Modular spacing (EF000394) | 25.0 | mm |
| Colour (EF000007) | Other |
