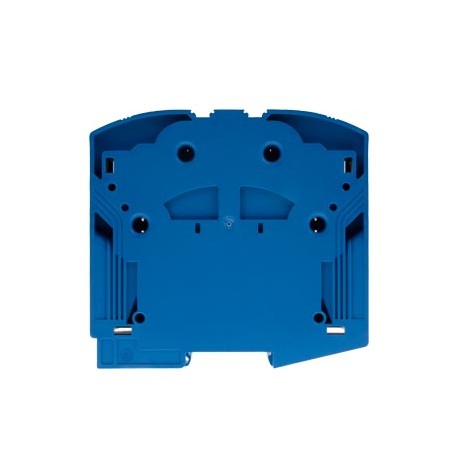

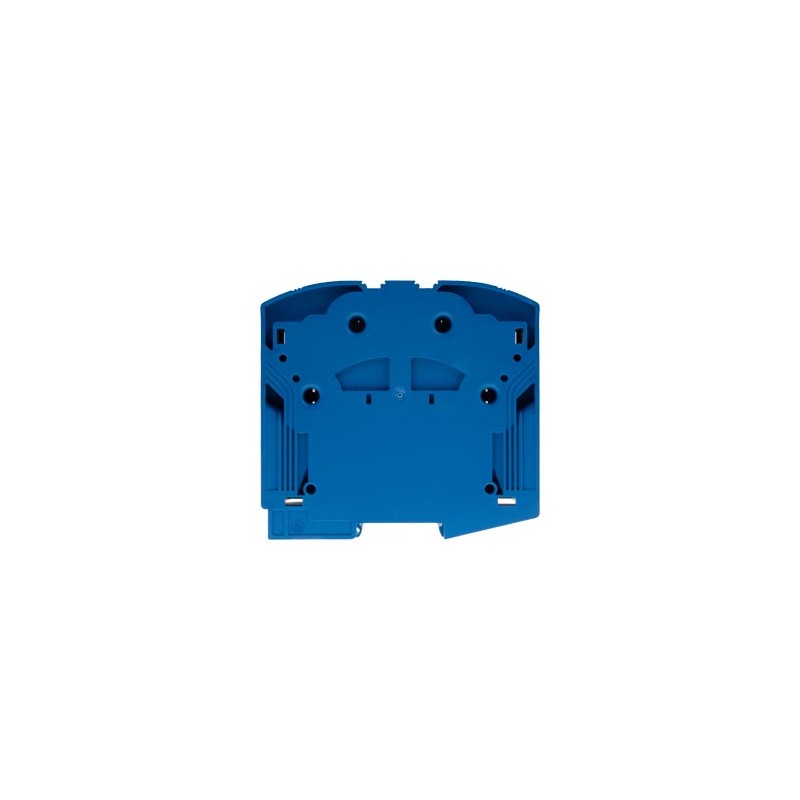

8WH6000-0AS01 SIEMENS N through-type terminal 150mm2 iPo plug-in terminal blue
8WH6000-0AS01
SIEMENS
3
N through-type terminal 150mm2 iPo plug-in terminal blue
STEP TERMINAL N, 150mm2 PLUG-IN TYPE IPO BLUE ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 3 Units ** ). Cancelations and returns limited. Consult conditions.
POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Terminals
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 8WH6000-0AS01 | |||||||||||||||||||||||||||||||||
| Product Description | N through-type terminal 150mm2 iPo plug-in terminal blue | |||||||||||||||||||||||||||||||||
| Product family | iPo plug-in terminals | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12X / 1BT | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 5 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,357 Kg | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 52,00 x 82,00 x 4,00 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Minimum order quantity | 3 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4001869533384 | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 85369010 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10 | |||||||||||||||||||||||||||||||||
| Product Group | 5731 | |||||||||||||||||||||||||||||||||
| Group Code | P310 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2016 | |||||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC001257 - Neutral disconnect terminal block
| Value | Unit | |
|---|---|---|
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | ['50.0', '150.0'] | mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | ['50.0', '150.0'] | mm² |
| Connectable conductor cross section solid-core (EF007337) | ['50.0', '150.0'] | mm² |
| Connectable conductor cross section multi-wired (EF007343) | ['50.0', '150.0'] | mm² |
| Rated current In (EF008250) | 309.0 | A |
| Rated voltage (EF000228) | 1500 | V |
| Type of electric connection (EF003961) | Push-in clamp connection | |
| Number of clamp positions (EF000584) | 2 | |
| Mounting method (EF000003) | Other | |
| Material insulation body (EF007543) | Thermoplastic | |
| Operating temperature (EF002393) | ['-25', '55'] | °C |
| Inflammability class of insulation material according to with UL94 (EF002521) | V0 | |
| Width/grid dimension (EF002522) | 31.0 | mm |
| Height at lowest possible mounting height (EF002523) | 116.5 | mm |
| Length (EF001438) | 116.4 | mm |
| Connecting plate required (EF002528) | false | |
| Colour (EF000007) | Blue | |
| Suitable for N-busbar (EF002557) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 8WH6000-0AS01 8WH6000-0AS01 EN_8WH6000-0AS01.pdf | 288 Kbytes |
|
