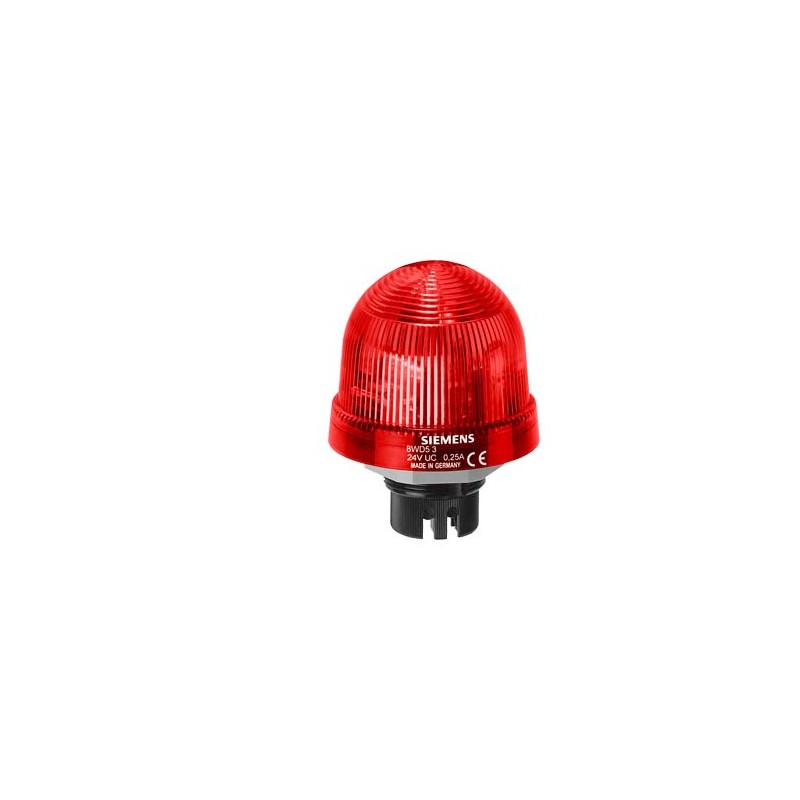

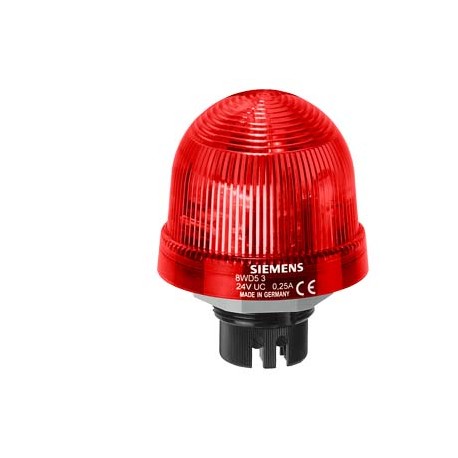

8WD5350-0CB SIEMENS Integrated signal lamp, single flash light, w. built-in electronic flash, red, 230 V AC,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

8WD5350-0CB SIEMENS Integrated signal lamp, single flash light, w. built-in electronic flash, red, 230 V AC,..

8WD5350-0CB

SIEMENS

Integrated signal lamp, single flash light, w. built-in electronic flash, red, 230 V AC, Diameter 70 mm

More details


CONTROL AND CONTACTORS > Commanding and signaling devices

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $160.15
Unit price: $160.15

Quantity Price
1+$160.15
2+$148.40
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Technical data

Integrated signal lamp, single flash light, w. built-in electronic flash, red, 230 V AC, Diameter 70 mm
General technical data
product designationFlashlight element
consumed current maximum35 mA
type of voltage of the operating voltageAC
operating voltage
● 1 at AC at 50 Hz rated value230 V
● 1 at AC at 60 Hz rated value230 V
relative positive tolerance of the operating voltage10 %
relative negative tolerance of the operating voltage-10 %
reference code according to IEC 81346-2P
fastening methodBayonet / flush mounting
materialPC; PC/ABS; PA
colorred
Mechanical data
product component light sourceYes
type of electrical connectionscrew-type terminals
outer diameter of the signal column element75 mm
Lamp
design of the optical signalflash light
type of light sourceXenon gas discharge lamp
light intensity7 806 cd
flash frequency1 Hz
number of flashes of light element4 000 000
Ambient conditions
ambient temperature during operation-20 ... +50 °C
protection class IPIP65
depth31 mm
height66 mm
width75 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

Confirmation

UL

EAC

RCM

UK Declaration of Conformity

EC/EU-Declaration of Conformity

other

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/23/2020
Date
5/12/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)8WD5350-0CB
Product DescriptionIntegrated signal lamp, single flash light, w. built-in electronic flash, red, 230 V AC, Diameter 70 mm
Product family8WD53 integrated signal lamps, 70 mm diameter
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,145 Kg
Packaging Dimension77,00 x 100,00 x 77,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209358126
UPC754554846675
Commodity Code85318070
LKZ_FDB/ CatalogIDCC-IC10
Product Group5833
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-14-32-05
eClass7.127-14-32-05
eClass827-14-32-05
eClass927-14-32-05
eClass9.127-14-32-05
ETIM5EC001333
ETIM6EC001333
ETIM7EC001333
ETIM8EC001333
IDEA44766
UNSPSC1439-12-15-34
UNSPSC1539-12-15-34

ETIM data

ETIM: EC001333 - Strobe luminaire

Value Unit
With contact (EF003602) -
Degree of protection (NEMA) (EF011959) -
Coverage volume (EF012224) -m³
According to EN 54-23 (EF012223) -
Nominal voltage (EF000002) -V
Type of current (EF000143) AC
Electricity consumption (EF000587) 0.035A
Degree of protection (IP) (EF005474) IP65
Material housing (EF001596) Plastic
Colour of lamp hood (EF002749) red / red
Mounting method (EF000003) Built-in
Lamp type (EF002423) Xenon
Suitable for wall mounting (EF006644) Bayonet / flush mounting
Suitable for ceiling mounting (EF021180) Bayonet / flush mounting
Power (EF000076) -J
