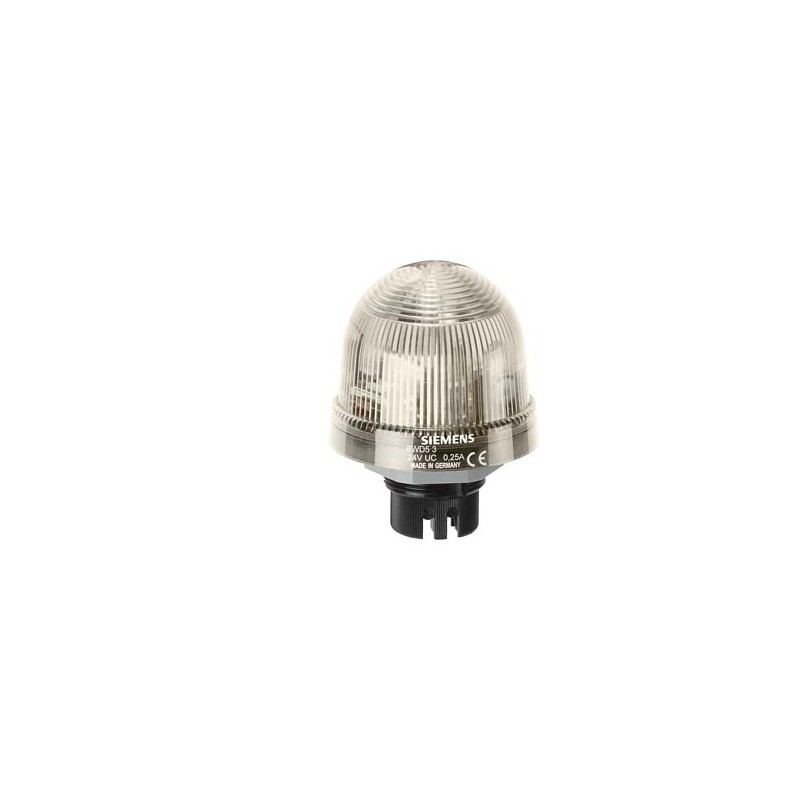

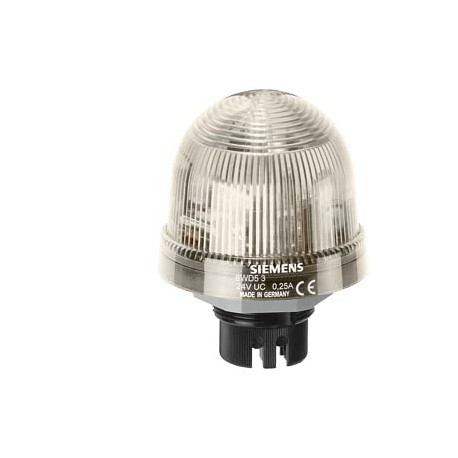

8WD5340-0CE SIEMENS Integrated signal lamp, single flash light, w. built-in electronic flash, clear, 115 V A..
8WD5340-0CE
SIEMENS
Integrated signal lamp, single flash light, w. built-in electronic flash, clear, 115 V AC, Diameter 70 mm
SIRIUS Signaling, built-in lamp transparent 115v flash element. Manufactured to order. Non-Cancelable Non-Returnable.
CONTROL AND CONTACTORS > Commanding and signaling devices
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Related products
▲Best sellers
▲More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 8WD5340-0CE | |||||||||||||||||||||||||||||||||||||||
| Product Description | Integrated signal lamp, single flash light, w. built-in electronic flash, clear, 115 V AC, Diameter 70 mm | |||||||||||||||||||||||||||||||||||||||
| Product family | 8WD53 integrated signal lamps, 70 mm diameter | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 2 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,152 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 75,00 x 75,00 x 100,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209359345 | |||||||||||||||||||||||||||||||||||||||
| UPC | 754554846651 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85318070 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5833 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |||||||||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC001333 - Strobe luminaire
| Value | Unit | |
|---|---|---|
| According to EN 54-23 (EF012223) | - | |
| Degree of protection (NEMA) (EF011959) | - | |
| With contact (EF003602) | - | |
| Coverage volume (EF012224) | - | m³ |
| Nominal voltage (EF000002) | - | V |
| Type of current (EF000143) | AC | |
| Electricity consumption (EF000587) | 0.022 | A |
| Degree of protection (IP) (EF005474) | IP65 | |
| Material housing (EF001596) | Plastic | |
| Colour of lamp hood (EF002749) | clear / clear | |
| Mounting method (EF000003) | Built-in | |
| Lamp type (EF002423) | Xenon | |
| Suitable for wall mounting (EF006644) | Bayonet / flush mounting | |
| Suitable for ceiling mounting (EF021180) | Bayonet / flush mounting | |
| Power (EF000076) | - | J |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 8WD5340-0CE 8WD5340-0CE EN_8WD5340-0CE.pdf | 233 Kbytes |
|
