> SIEMENS>CONTROL AND CONTACTORS>Commanding and signaling devices>8WD4420-5BC SIEMENS Flashlight element, with integrated LED, green, 24 V AC/DC, Diameter 70 mm
Previous Product Next Product

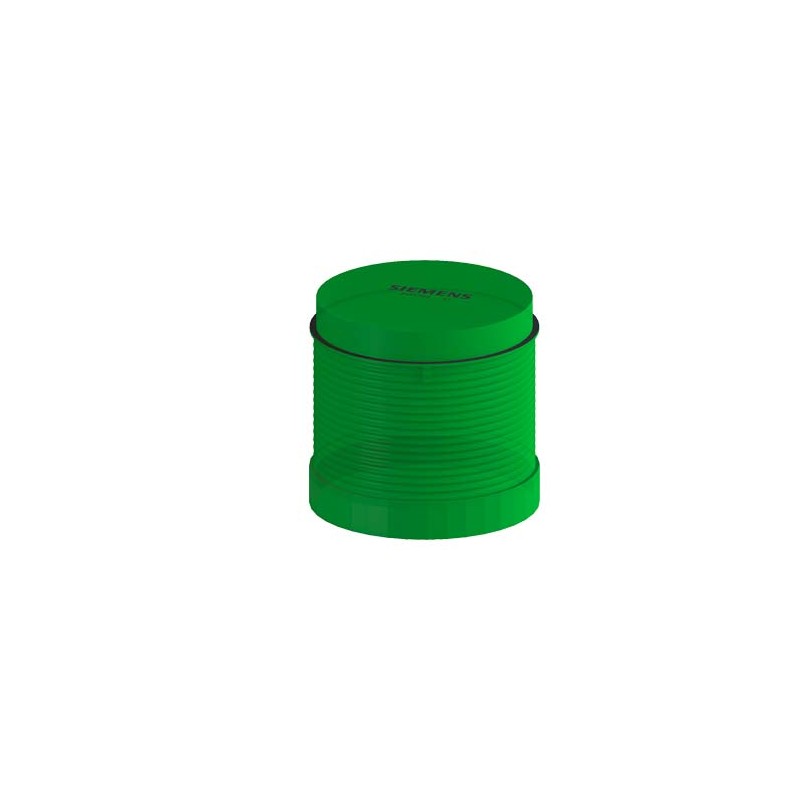

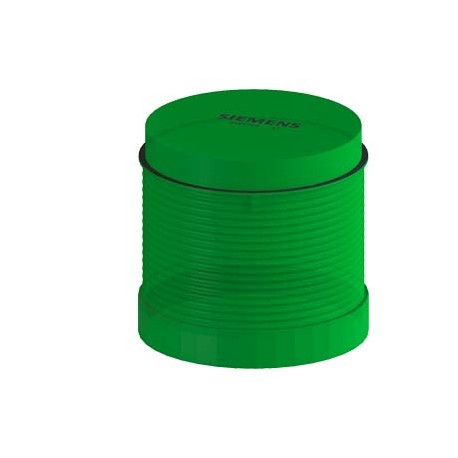

8WD4420-5BC SIEMENS Flashlight element, with integrated LED, green, 24 V AC/DC, Diameter 70 mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

8WD4420-5BC SIEMENS Flashlight element, with integrated LED, green, 24 V AC/DC, Diameter 70 mm

8WD4420-5BC

SIEMENS

Flashlight element, with integrated LED, green, 24 V AC/DC, Diameter 70 mm

SIRIUS Signaling, column signaling element flashing light led green, 24V AC/DC

More details


Low-voltage industrial components > Optical module for signal tower

CONTROL AND CONTACTORS > Commanding and signaling devices

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $127.97
Unit price: $127.97

Quantity Price
1+$127.97
2+$113.03
3+$106.94
4+$103.50
6+$99.78
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Often bought together

▲

Best sellers

▲

More info

▲


Technical data

Flashlight element, with integrated LED, green, 24 V AC/DC, Diameter 70 mm
product brand nameSIRIUS
product designationRepeated-flash light element
General technical data
type of voltage of the operating voltageAC/DC
operating voltage
● 1 at DC rated value24 V
● 1 at AC at 50 Hz rated value24 V
● 1 at AC at 60 Hz rated value24 V
relative positive tolerance of the operating voltage10 %
relative negative tolerance of the operating voltage-10 %
consumed current maximum30 mA
reference code
● according to EN 61346-2P
● according to IEC 81346-2P
Lamp
product component light sourceYes
type of light sourceLED
service life of LED100 000 h
design of the optical signalblinklight
light intensity0.88 cd
light intensity0.6 ... 1.36 cd
flashing frequency1 Hz
Enclosure
height65.5 mm
width70 mm
outer diameter of the signal column element70 mm
materialPC
colorgreen
fastening methodBayonet
protection class IPIP65
Ambient conditions
ambient temperature during operation-20 ... +50 °C
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

Confirmation

UL

EAC

RCM

UK Declaration of Conformity

EC/EU-Declaration of Conformity

other

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/23/2020
Date
5/4/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)8WD4420-5BC
Product DescriptionFlashlight element, with integrated LED, green, 24 V AC/DC, Diameter 70 mm
Product family8WD44 signaling columns, 70 mm diameter
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,074 Kg
Packaging Dimension76,00 x 74,00 x 69,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209497375
UPC040892555127
Commodity Code85318070
LKZ_FDB/ CatalogIDCC-IC10
Product Group5833
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-12-20
eClass7.127-37-12-20
eClass827-37-12-20
eClass927-37-12-20
eClass9.127-37-12-20
ETIM5EC000232
ETIM6EC000232
ETIM7EC000232
ETIM8EC000232
IDEA44766
UNSPSC1439-12-15-34
UNSPSC1539-12-15-34

ETIM data

ETIM: EC000232 - Optical module for signal tower

Value Unit
Degree of protection (NEMA) (EF011959) -
Function (EF000030) Blinker light
Colour (EF000007) Green
Outer diameter (EF000015) 70.0mm
Operating voltage at AC 50 Hz (EF008206) ['-', '-']V
Operating voltage at AC 60 Hz (EF008207) ['-', '-']V
Operating voltage at DC (EF008208) ['-', '-']V
Voltage type (EF000187) AC/DC
Lamp type (EF002423) LED
Colour housing (EF000136) Green
Degree of protection (IP) (EF005474) IP65


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
8WD4420-5BC 8WD4420-5BC EN_8WD4420-5BC.pdf 144 Kbytes 8WD4420-5BC 8WD4420-5BC EN_8WD4420-5BC.pdf
