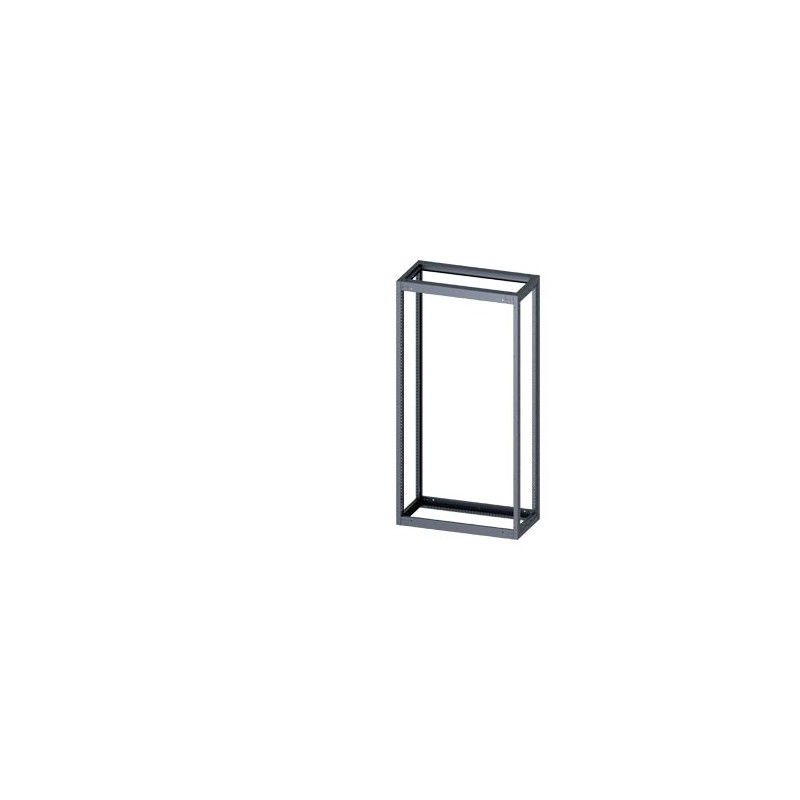

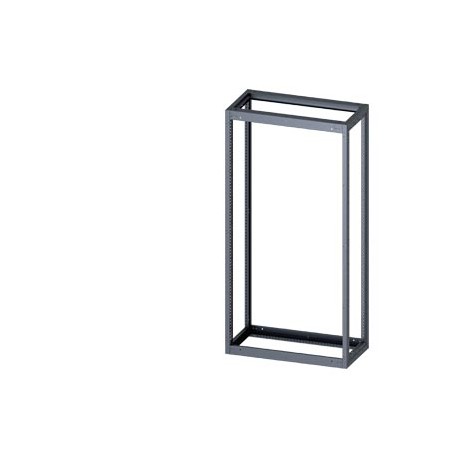

8MF1005-2GS30 SIEMENS SIVACON, Supporting structure, for standard Empty enclosure, H: 2000 mm, W: 1000 mm, T..
8MF1005-2GS30
SIEMENS
SIVACON, Supporting structure, for standard Empty enclosure, H: 2000 mm, W: 1000 mm, T: 500 mm, zinc-plated
SIVACON sicube, armazon, H: 2000 mm, W: 1000 mm, P: 500 mm, galvanized. Cancelations and returns limited. Consult conditions.
Cabinet enclosures > Component for installation (switchgear cabinet)
POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Power Distribution Boards SIVACON S4 up to 6.300 A and SICUBE
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 8MF1005-2GS30 | ||||||||||||||||||||||||||||||
| Product Description | SIVACON, Supporting structure, for standard Empty enclosure, H: 2000 mm, W: 1000 mm, T: 500 mm, zinc-plated | ||||||||||||||||||||||||||||||
| Product family | Components and Accessories | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 14V / 1BS | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||
| Standard lead time ex-works | 10 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 49,000 Kg | ||||||||||||||||||||||||||||||
| Packaging Dimension | 600,00 x 1800,00 x 400,00 | ||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | 4001869544274 | ||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||
| Commodity Code | 94039910 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10 | ||||||||||||||||||||||||||||||
| Product Group | 3799 | ||||||||||||||||||||||||||||||
| Group Code | P310 | ||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2016 | ||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002620 - Component for installation (switchgear cabinet)
| Value | Unit | |
|---|---|---|
| Max. load capacity (EF000258) | - | kg |
| Model (EF000010) | Other | |
| Suitable for enclosure building width (EF000326) | 1000.0 | mm |
| Suitable for enclosure building height (EF009583) | 2000.0 | mm |
| Suitable for enclosure building depth (EF000327) | 500.0 | mm |
| Width (EF000008) | 1000.0 | mm |
| Height (EF000040) | 2000.0 | mm |
| Depth (EF000049) | 500.0 | mm |
| Material (EF002169) | Other | |
| Colour (EF000007) | Other | |
| RAL-number (EF000116) | - |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 8MF1005-2GS30 8MF1005-2GS30 EN_8MF1005-2GS30.pdf | 4 Mbytes |
|
