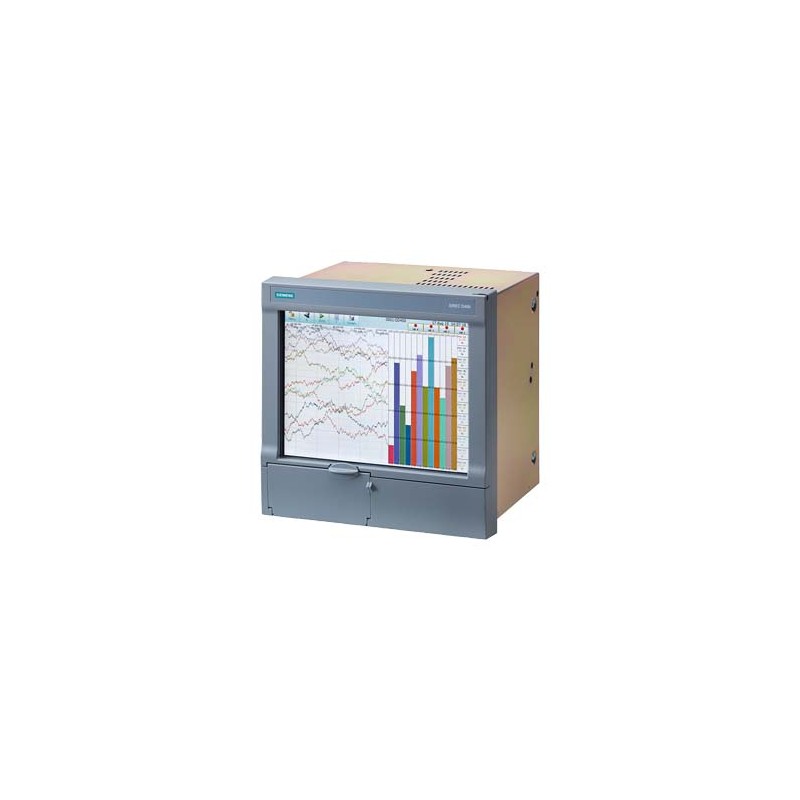

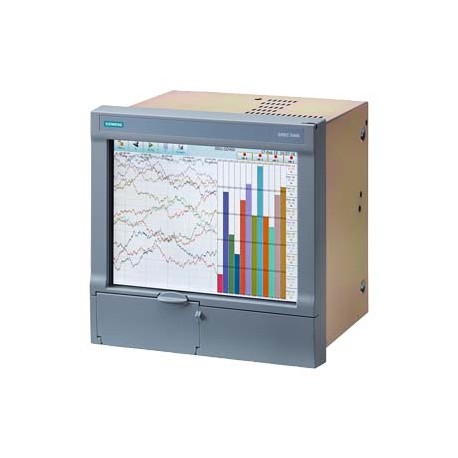

7ND4461-2AA77-2BA2 SIEMENS SIREC D400 Displayrecorder Front dimensions 300 x 300 mm, for all applications sc..
7ND4461-2AA77-2BA2
SIEMENS
SIREC D400 - Displayrecorder Front dimensions 300 x 300 mm, for all applications scanning rate: 200 ms of mA, V,mV; Rearsite: Ethernet; RS485; USB interfaces Front side: Slot for CF-Card; USB interface; AC 50 or 60 Hz, 90 to 240 V, Power supply: 24V DC max. 200 mA Allocation plug-in position 1 till 4: 16 analog inputs, none pulse inputs . Allocation plug-in position 5 and 6: 0 Analog Inputs Analog Outputs: none Switching Outputs and Switching Inputs (devided into 3 plug-in positions): 24 BA/BE (Relays 24V / freely configurable) (16 + 8) 2 GByte Internal memory expansion Extended System Security (ESS): With 10 credits IP54, without Seismic capability Manual in English
SIREC D400 Display Recorder Front dimensions 300 X 300 mm, for all applications, cycle time: 200 ms for mA, V, mV; 500 ms for TC/RTD/R, Rear side: Ethernet interface; RS485; USB interface; front side: CF card slot; USB AC interface 50 or 60 HZ, 90 to 240 V, transmitter power: 24 V DC max. 200 mA Allocation plug-in position 1 till 4: 16 analog inputs, none pulse inputs . Slot Assignment 5 & 6: Analog Inputs/Pulse Inputs: 0 Analog Inputs, No Analog Outputs Binary Outputs and Binary Inputs (spread over three slots): 24 BA/BE (24V Relay / configurable) (16 + 8) 2 GB Internal Data Memory Extended System Security (ESS): With 10 credits No Optional Firmware. Manual in English language.
SENSORS AND COMMUNICATIONS
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | ||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7ND4461-2AA77-2BA2 | |||||||||||||||||||||||||||
| Product Description | SIREC D400 - Displayrecorder Front dimensions 300 x 300 mm, for all applications scanning rate: 200 ms of mA, V,mV; Rearsite: Ethernet; RS485; USB interfaces Front side: Slot for CF-Card; USB interface; AC 50 or 60 Hz, 90 to 240 V, Power supply: 24V DC max. 200 mA Allocation plug-in position 1 till 4: 16 analog inputs, none pulse inputs . Allocation plug-in position 5 and 6: 0 Analog Inputs Analog Outputs: none Switching Outputs and Switching Inputs (devided into 3 plug-in positions): 24 BA/BE (Relays 24V / freely configurable) (16 + 8) 2 GByte Internal memory expansion Extended System Security (ESS): With 10 credits IP54, without Seismic capability Manual in English | |||||||||||||||||||||||||||
| Product family | SIREC D300 and SIREC D400 | |||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 8S2 / 8S2 | |||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||
| Export Control Regulations | ECCN : EAR99I / AL : N | |||||||||||||||||||||||||||
| Estimated dispatch time (Working Days) | 20 Day/Days | |||||||||||||||||||||||||||
| Net Weight (kg) | 8,000 Kg | |||||||||||||||||||||||||||
| Package size unit of measure | Not available | |||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||
| EAN | Not available | |||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||
| Commodity Code | 90308400 | |||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | MP20-5 | |||||||||||||||||||||||||||
| Product Group | 4736 | |||||||||||||||||||||||||||
| Group Code | R3P2 | |||||||||||||||||||||||||||
| Country of origin | Mexico | |||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 31.12.2016 | |||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||
| SCIP number | ||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||
