7ND4461-2AA36-2DE2
SIEMENS
1

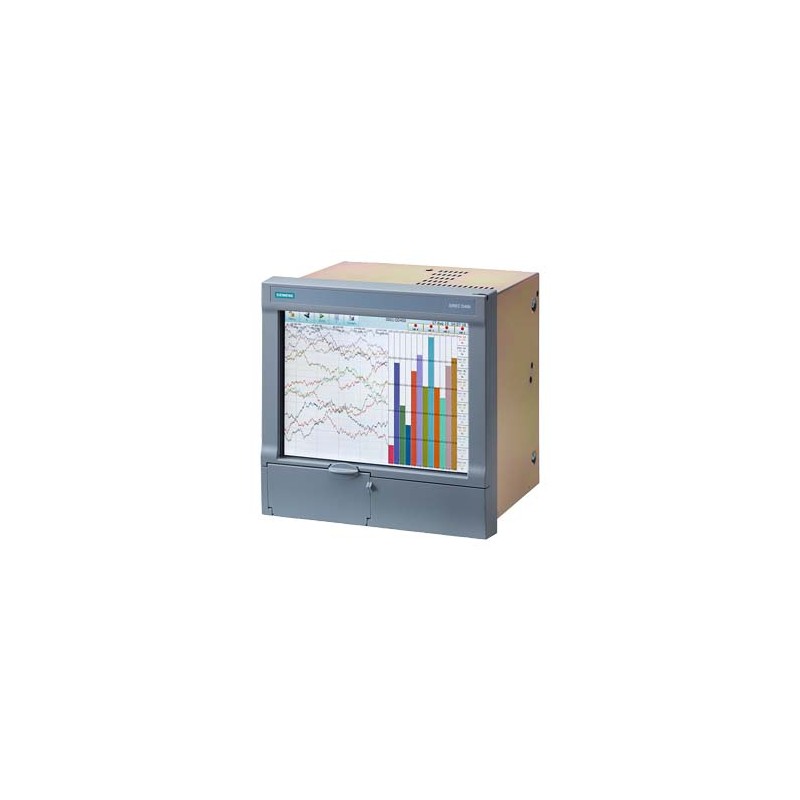

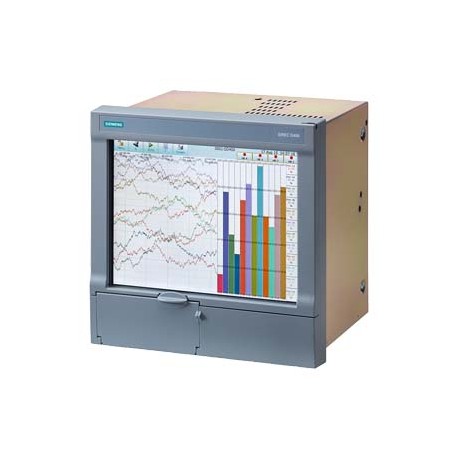

SIREC D400 - Displayrecorder Front dimensions 300 x 300 mm, for all applications scanning rate: 200 ms of mA, V,mV; Rearsite: Ethernet; RS485; USB interfaces Front side: Slot for CF-Card; USB interface; AC 50 or 60 Hz, 90 to 240 V, Power supply: 24V DC max. 200 mA Allocation plug-in position 1 till 4: 16 analog inputs, none pulse inputs . Allocation plug-in position 5 and 6: 0 Analog Inputs Analog Outputs: none Switching Outputs and Switching Inputs (devided into 3 plug-in positions): 16 Relays (optional 4 of them as BE configurable) (240V) 1 GByte Internal memory expansion Extended System Security (ESS): With 30 Credits IP66 (NEMA 4X), with Seismic capability Manual in English
SENSORS AND COMMUNICATIONS
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product | |||||||||||||||||||||||||
Article Number (Market Facing Number) | 7ND4461-2AA36-2DE2 | ||||||||||||||||||||||||
Product Description | SIREC D400 - Displayrecorder Front dimensions 300 x 300 mm, for all applications scanning rate: 200 ms of mA, V,mV; Rearsite: Ethernet; RS485; USB interfaces Front side: Slot for CF-Card; USB interface; AC 50 or 60 Hz, 90 to 240 V, Power supply: 24V DC max. 200 mA Allocation plug-in position 1 till 4: 16 analog inputs, none pulse inputs . Allocation plug-in position 5 and 6: 0 Analog Inputs Analog Outputs: none Switching Outputs and Switching Inputs (devided into 3 plug-in positions): 16 Relays (optional 4 of them as BE configurable) (240V) 1 GByte Internal memory expansion Extended System Security (ESS): With 30 Credits IP66 (NEMA 4X), with Seismic capability Manual in English | ||||||||||||||||||||||||
Product family | Not available | ||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||
Delivery information | |||||||||||||||||||||||||
Export Control Regulations | ECCN : EAR99I / AL : N | ||||||||||||||||||||||||
Standard lead time ex-works | 20 Day/Days | ||||||||||||||||||||||||
Net Weight (kg) | 8.000 Kg | ||||||||||||||||||||||||
Product Dimensions (W x L x H) | Not available | ||||||||||||||||||||||||
Packaging Dimension | Not available | ||||||||||||||||||||||||
Package size unit of measure | Not available | ||||||||||||||||||||||||
Quantity Unit | 1 Piece | ||||||||||||||||||||||||
Packaging Quantity | 1 | ||||||||||||||||||||||||
Additional Product Information | |||||||||||||||||||||||||
EAN | Not available | ||||||||||||||||||||||||
UPC | Not available | ||||||||||||||||||||||||
Commodity Code | 90308400 | ||||||||||||||||||||||||
LKZ_FDB/ CatalogID | MP20-5 | ||||||||||||||||||||||||
Product Group | 4736 | ||||||||||||||||||||||||
Country of origin | Mexico | ||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 18/07/17 | ||||||||||||||||||||||||
Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||
Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. | |||||||||||||||||||||||||
Classifications | |||||||||||||||||||||||||
| |||||||||||||||||||||||||
Version | Classification | ||||||||||||||||||||||||
eClass | 5.1 | 27-21-02-04 | |||||||||||||||||||||||
eClass | 6 | 27-21-02-04 | |||||||||||||||||||||||
eClass | 7.1 | 27-21-02-04 | |||||||||||||||||||||||
eClass | 8 | 27-21-02-04 | |||||||||||||||||||||||
eClass | 9 | 27-21-02-04 | |||||||||||||||||||||||
eClass | 9.1 | 27-21-02-04 | |||||||||||||||||||||||
UNSPSC | 15 | 32-15-17-03 |
