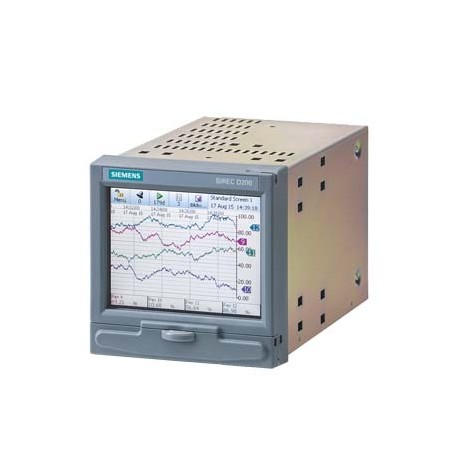

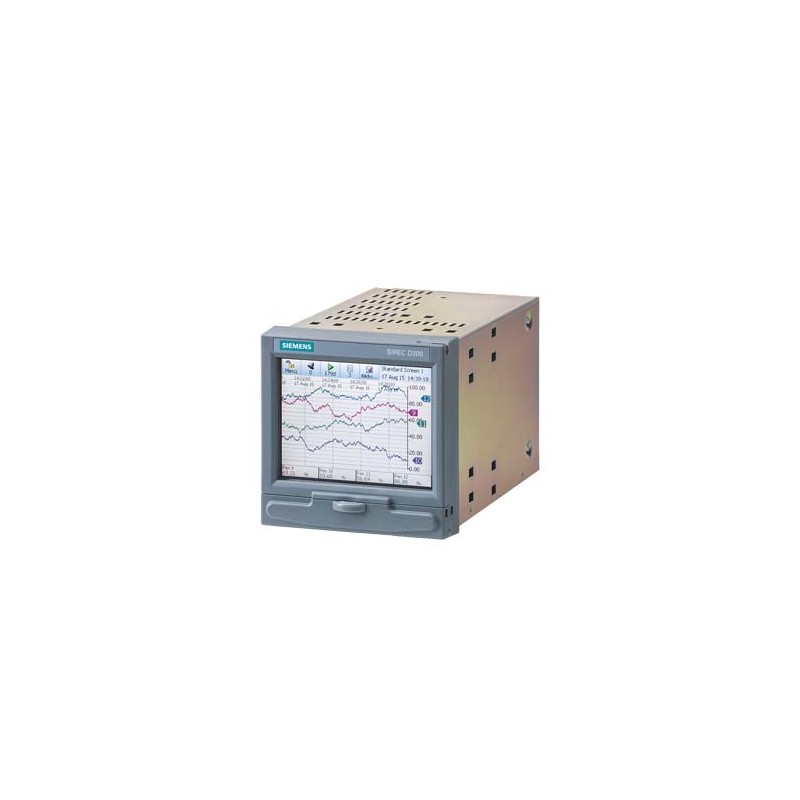

7ND4121-4AA23-3EA2 SIEMENS SIREC D200 Displayrecorder Front dimensions 144 x 144 mm, for all standard applic..
7ND4121-4AA23-3EA2
SIEMENS
SIREC D200 - Displayrecorder Front dimensions 144 x 144 mm, for all standard applications/ 5" TFT Display, Ethernet interface (rear side) and USB interface (front side) DC 24 V 3 universal inputs: mA, mV, V, TC, RTD, R . . 4 Relays (240V) 1 GByte DC 24 V max. 200 mA 40 Credits without Extended System Security (ESS), IP54 Manual in English
SIREC D200, recorder with display, front dimensions 144 X 144 mm, for all standard applications, TFT display, Ethernet interface (rear side) and USB interface (front side), Power supply: 24 V.dc. Recording channels: 3, for universal mA, mV, V, TC and RTD signals. . 4 relays (240V) Internal data memory of 1 GByte DC 24 V max. 200 mA 40 credits without Phoenix safety system (ESS), IP54 protection degree Manual in English language.
SENSORS AND COMMUNICATIONS
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | ||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7ND4121-4AA23-3EA2 | |||||||||||||||||||||||||||
| Product Description | SIREC D200 - Displayrecorder Front dimensions 144 x 144 mm, for all standard applications/ 5" TFT Display, Ethernet interface (rear side) and USB interface (front side) DC 24 V 3 universal inputs: mA, mV, V, TC, RTD, R . . 4 Relays (240V) 1 GByte DC 24 V max. 200 mA 40 Credits without Extended System Security (ESS), IP54 Manual in English | |||||||||||||||||||||||||||
| Product family | SIREC D200 | |||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 8S2 / 8S2 | |||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||
| Export Control Regulations | ECCN : EAR99I / AL : N | |||||||||||||||||||||||||||
| Estimated dispatch time (Working Days) | 20 Day/Days | |||||||||||||||||||||||||||
| Net Weight (kg) | 2,500 Kg | |||||||||||||||||||||||||||
| Package size unit of measure | Not available | |||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||
| EAN | Not available | |||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||
| Commodity Code | 90308400 | |||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | MP20-5 | |||||||||||||||||||||||||||
| Product Group | 4736 | |||||||||||||||||||||||||||
| Group Code | R3P2 | |||||||||||||||||||||||||||
| Country of origin | Mexico | |||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 31.12.2016 | |||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||
| SCIP number | ||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
