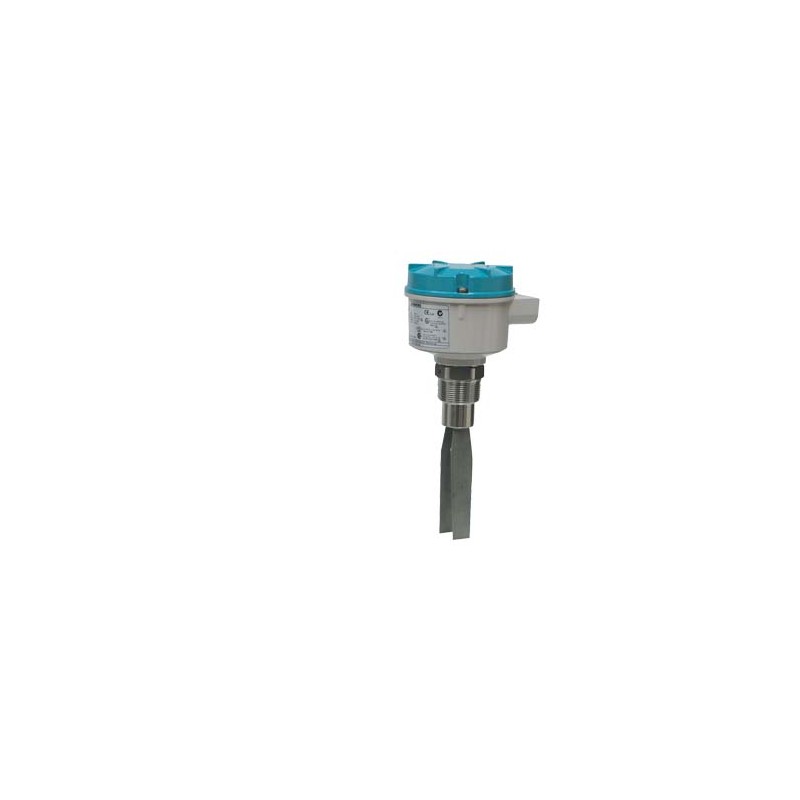

7ML5735-1AA11-0BA0 SIEMENS SITRANS LVS100 Vibrating fork point level switch: level and material detection fo..
7ML5735-1AA11-0BA0
SIEMENS
Product on demand only, returns will not be accepted.
SITRANS LVS100 Vibrating fork point level switch: level and material detection for dry bulk solids. Extension options to 4 m (13.12 ft). Input Voltage: DPDT Relay - 19 to 230 V AC, 19 to 40 V DC Process Temperature: up to +150 C (+302 F) Process connection Threaded: R 1 1/2" ((BSPT), EN 10226) Extension length: Stainless steel 316L (1.4404): Standard length, 170 mm (6.69 inch) . Approvals: CSA/FM Class II, Div. 1, Group E,F, G, Class III, ATEX II 1/2 D, RCM . .
. SITRANS LVS100 Vibrating fork level switch: . Dry Solid Material Level Detection at . bulk. Optional extensions up to 4 m (13.12 ft). Input voltage: DPDT relay - AC 19 ... 230 V, DC 19 ... 40 V process temperature: Up to +150 C (+302 F) connection to the process thread: R 1 1/2" ((BSPT), EN 10226) Arm length: Stainless steel, mat no. 316L (1.4404): Standard length, 170 mm (6.69 inches) Approvals: CSA/FM Class II, Div. 1, Group E, F, G, Class III, ATEX II 1/2 D, RCM
SENSORS AND COMMUNICATIONS > Non-ultrasonic level measuring equipment
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7ML5735-1AA11-0BA0 | ||||||||||||||||||||||||||||||
| Product Description | SITRANS LVS100 Vibrating fork point level switch: level and material detection for dry bulk solids. Extension options to 4 m (13.12 ft). Input Voltage: DPDT Relay - 19 to 230 V AC, 19 to 40 V DC Process Temperature: up to +150 C (+302 F) Process connection Threaded: R 1 1/2" ((BSPT), EN 10226) Extension length: Stainless steel 316L (1.4404): Standard length, 170 mm (6.69 inch) . Approvals: CSA/FM Class II, Div. 1, Group E,F, G, Class III, ATEX II 1/2 D, RCM . . | ||||||||||||||||||||||||||||||
| Product family | SITRANS LVS100 | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 8LO / 8LO | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | ECCN : N / AL : N | ||||||||||||||||||||||||||||||
| Estimated dispatch time (Working Days) | 1 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 1,800 Kg | ||||||||||||||||||||||||||||||
| Packaging Dimension | 198000,00 x 409000,00 x 137000,00 | ||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | 4019169849401 | ||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||
| Commodity Code | 90318080 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-4 | ||||||||||||||||||||||||||||||
| Product Group | 4723 | ||||||||||||||||||||||||||||||
| Group Code | R3P0 | ||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 20.07.2017 | ||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| SCIP number | |||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN.pdf | 115 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
