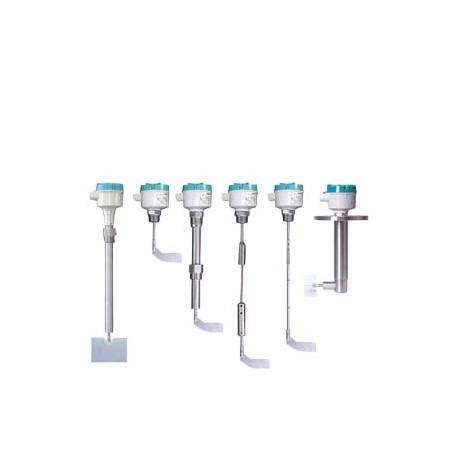

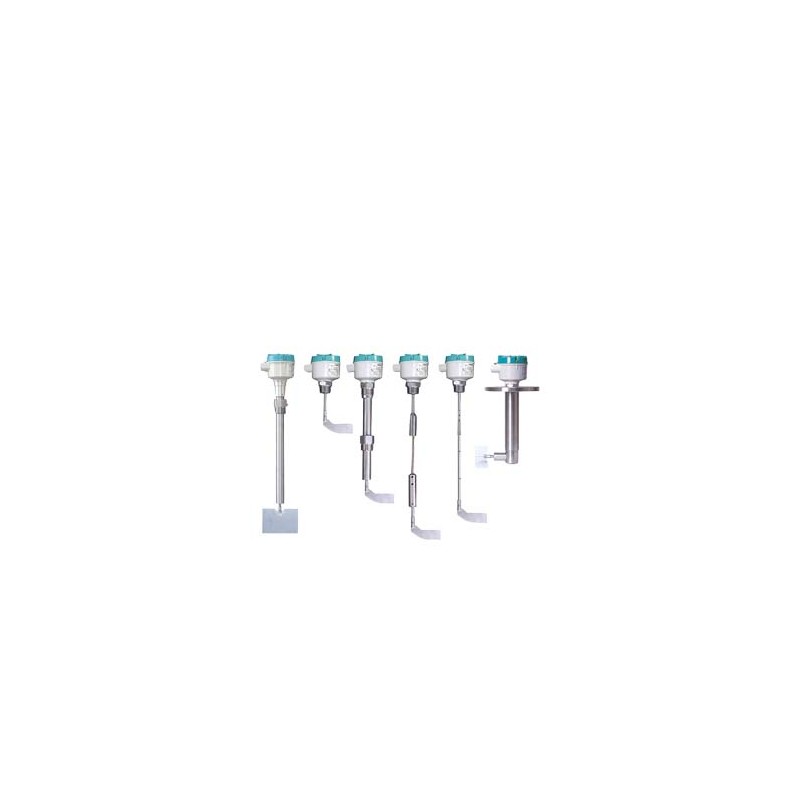

7ML5725-5EE11-2AC0 SIEMENS SITRANS LPS200 Rotary paddle point level switch, compact design: level detection ..
7ML5725-5EE11-2AC0
SIEMENS
Product on demand only, returns will not be accepted.
SITRANS LPS200 Rotary paddle point level switch, compact design: level detection in solids. Compact, side or top mount with extension options to 300 mm (11.81 inch). Process temperature: Up to +80 C (+176 F) basic version Aluminum Power supply: 115 V AC, 1 rev/min. Process connection Threaded: 1-1/4" NPT ((Taper), ANSI/ASME B1.20.1) Process pressure: Up to 0.5 bar (7.25 psi) Process connection material: Aluminum Extension length: 150 mm (5.91 inch) Measuring vane: Boot shaped, 35 x 106 mm (1.38 x 4.17 inch) Approvals: CSA/FM General Purpose, RCM, CE .
. SITRANS LPS200 Rotary vane level switch, compact version: solids level detection. Compact, top or side mount, with optional extensions up to 300 mm (11.81 inch). Process temperature: Up to +80 C (+176 F) base version aluminum auxiliary power: AC 115 V, 1 1/min Process connection thread: 1-1/4" NPT ((conical), ANSI/ASME B1.20.1) process pressure: Up to 0.5 bar (7.25 psi) Process connection material: aluminum Arm length: 150 mm (5.91 inches) Measuring blade: Diagonal shovel, 35 x 106 mm (1.38 x 4.17 inches) Approvals: CSA/FM General Purpose, RCM CE
SENSORS AND COMMUNICATIONS > Non-ultrasonic level measuring equipment
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | |||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7ML5725-5EE11-2AC0 | ||||||||||||||||||||||||
| Product Description | SITRANS LPS200 Rotary paddle point level switch, compact design: level detection in solids. Compact, side or top mount with extension options to 300 mm (11.81 inch). Process temperature: Up to +80 C (+176 F) basic version Aluminum Power supply: 115 V AC, 1 rev/min. Process connection Threaded: 1-1/4" NPT ((Taper), ANSI/ASME B1.20.1) Process pressure: Up to 0.5 bar (7.25 psi) Process connection material: Aluminum Extension length: 150 mm (5.91 inch) Measuring vane: Boot shaped, 35 x 106 mm (1.38 x 4.17 inch) Approvals: CSA/FM General Purpose, RCM, CE . | ||||||||||||||||||||||||
| Product family | SITRANS LPS200 | ||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 8LO / 8LO | ||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||
| Export Control Regulations | ECCN : N / AL : N | ||||||||||||||||||||||||
| Estimated dispatch time (Working Days) | 10 Day/Days | ||||||||||||||||||||||||
| Net Weight (kg) | 1,800 Kg | ||||||||||||||||||||||||
| Packaging Dimension | 197,00 x 411,00 x 131,00 | ||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||
| EAN | Not available | ||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||
| Commodity Code | 90318080 | ||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-4 | ||||||||||||||||||||||||
| Product Group | 4723 | ||||||||||||||||||||||||
| Group Code | R3P0 | ||||||||||||||||||||||||
| Country of origin | Malta | ||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 02.12.2013 | ||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||
| SCIP number | |||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||
| |||||||||||||||||||||||||
