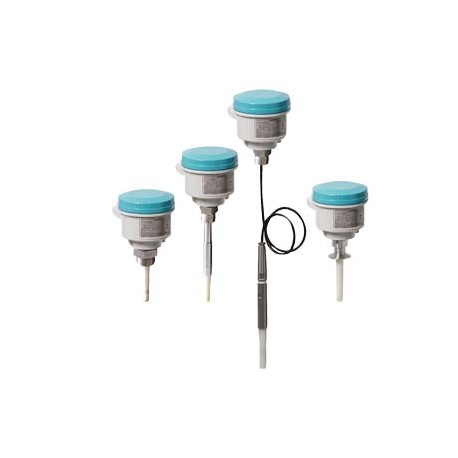

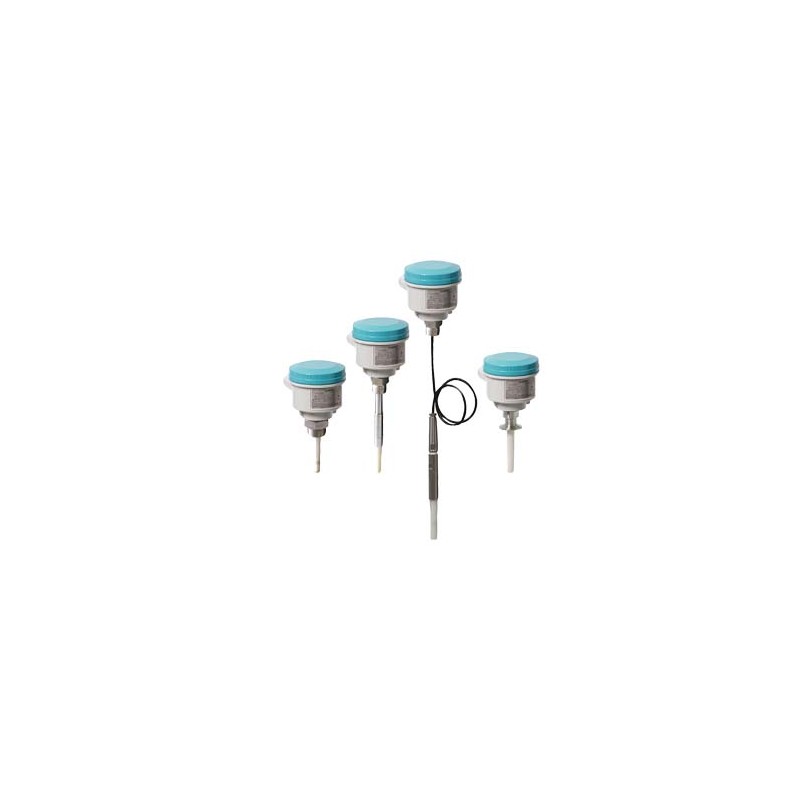

7ML5632-8BK10-0DA0 SIEMENS Pointek CLS200 RF level Switch capacitive, variant with rod health. Level detecti..
7ML5632-8BK10-0DA0
SIEMENS
Product on demand only, returns will not be accepted.
Pointek CLS200 RF level Switch capacitive, variant with rod health. Level detection and level/interface in liquids, solids, slurries and foam. Insertion length 5.5 m (18.04 ft) adjustable, sensitivity adjustable, with the ability to ignore build up in the probe. process connection: stainless Steel. health n.Th mat. 1.4404/316L: Clamp sanitary, 1 1/2" special Version: (length measured from face of process connection): Extension rod, 1750 mm (68,90") thermal Insulation: With insulation (for temperatures in the connection to the process above +85 °C (+185 F)) Together on the side of process: FKM Material of probe: stainless steel., n.° mat. 1.4404/316L with probe of PPS approvals: flame-proof Enclosure (explosion-proof) with intrinsic safety (IS) probe CE, C-TICK, ATEX II 1/2 G EEx d(ia) II
. Pointek CLS200 RF Capacitive Level Switch, Variant with Sanitary Rod. Level and level/interface detection of liquids, solids, slurries and foam. Insertion length 5.5 m (18.04 ft) adjustable, sensitivity adjustable, with the ability to ignore build-up in the probe. Process connection: Stainless steel. Sanitary No. Mat. 1.4404/316L: 1 1/2" sanitary clamp Special version: (length measured from the process connection face): Rod extension, 1750 mm (68.90") Thermal insulation: With thermal insulation (for process connection temperatures above +85 °C (+185 F)) Seals on the process side: FKM Probe material: stainless steel, mat no. 1.4404/316L with PPS probe approvals: Explosion-proof enclosure (explosion-proof) with intrinsically safe (IS) probe CE, C-TICK, ATEX II 1/2 G EEx d(ia) IIC T6... T
SENSORS AND COMMUNICATIONS > Non-ultrasonic level measuring equipment
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| product | ||||||||||||||||||||||
| Item number (market number) | 7ML5632-8BK10-0DA0 | |||||||||||||||||||||
| Product description | Pointek CLS200 RF Switch. capacitive level, variant with sanitary rod. Level and level/interface detection of liquids, solids, slurries and foam. Insertion length 5.5 m (18.04 ft) adjustable, sensitivity adjustable, with the ability to ignore build-up in the probe. Process connection: Stainless steel. Sanitary No. Mat. 1.4404/316L: 1 1/2" sanitary clamp Special version: (length measured from the process connection face): Rod extension, 1750 mm (68.90") Thermal insulation: With thermal insulation (for process connection temperatures above +85 °C (+185 F)) Seals on the process side: FKM Probe material: stainless steel, mat no. 1.4404/316L with PPS probe approvals: Explosion-proof enclosure (explosion-proof) with intrinsically safe (IS) probe CE, C-TICK, ATEX II 1/2 G EEx d(ia) IIC T6... T4, ATEX II 1/2 D T100 C Case & Lid: Aluminum, Epoxy Coated, 2 x 1/2" NPT via Adapter - Cable Entry, IP65 | |||||||||||||||||||||
| Product family | unavailable | |||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active product | |||||||||||||||||||||
| Price data | ||||||||||||||||||||||
| Price group / House and local price group | 39J/8L3 | |||||||||||||||||||||
| Metal factor | none | |||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||
| Export control regulations | ECCN : EAR99 / AL : N | |||||||||||||||||||||
| Delivery time | 15 Day/Days | |||||||||||||||||||||
| Net weight (kg) | 2,000 Kg | |||||||||||||||||||||
| Product Dimensions (W x L x H) | unavailable | |||||||||||||||||||||
| Packaging dimension | unavailable | |||||||||||||||||||||
| Unit of measurement package size | unavailable | |||||||||||||||||||||
| Unit of measurement | 1 piece | |||||||||||||||||||||
| Quantity per package | 1 | |||||||||||||||||||||
| Additional product information | ||||||||||||||||||||||
| Ean | unavailable | |||||||||||||||||||||
| Upc | unavailable | |||||||||||||||||||||
| Commodity code | 90261029 | |||||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-4 | |||||||||||||||||||||
| Product group | 4717 | |||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | RoHS compliant since: 07/20/17 | |||||||||||||||||||||
| Product class | C: manufactured products produced on demand, which cannot be reused or re-utilised or returned against credit. | |||||||||||||||||||||
| Mandatory category of return of electrical and electronic equipment after use | Yes | |||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||
| Classifications | ||||||||||||||||||||||
| ||||||||||||||||||||||
