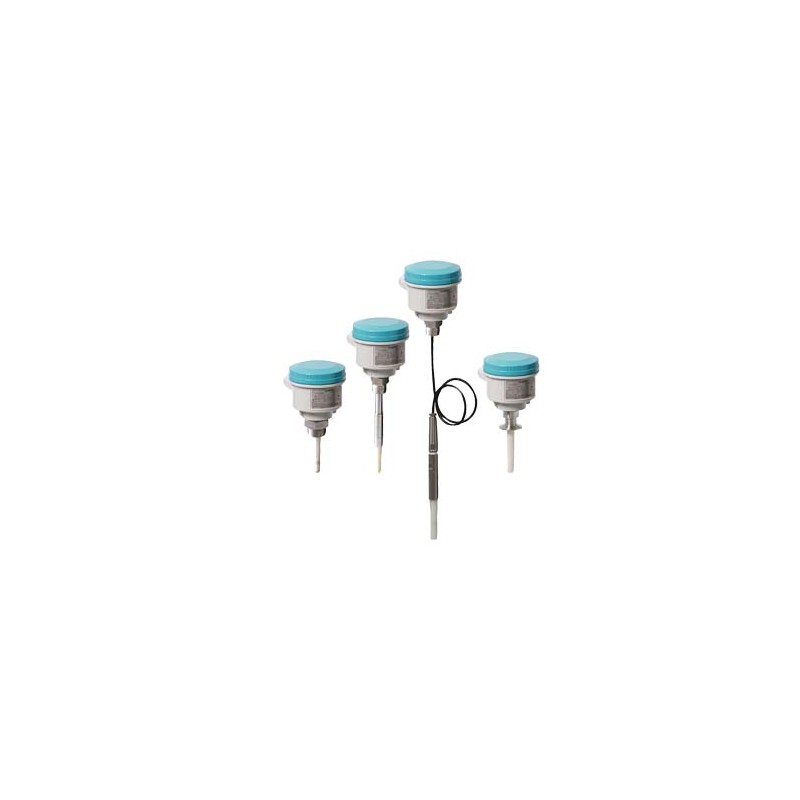

7ML5632-8AD01-1CB0 SIEMENS Pointek CLS200 RF level Switch capacitive, variant with rod health. Level detecti..

Pointek CLS200 RF level Switch capacitive, variant with rod health. Level detection and level/interface in liquids, solids, slurries and foam. Insertion length 5.5 m (18.04 ft) adjustable, sensitivity adjustable, with the ability to ignore build up in the probe. process connection: stainless Steel. health n.Th mat. 1.4404/316L: Clamp sanitary 1" special Version: (length measured from face of process connection): Extension rod, 500 mm (19.69") thermal Insulation: Without insulation Boards on the side of process: FFKM (for process temperatures above -20 °C (-4 F)) Material of probe: stainless steel., n.° mat. 1.4404/316L probe made of PVDF approvals: Ex Protection for dust CE, C-TICK, ATEX II 1/2 D T100 C Enclosure and lid: aluminum, coated with epoxy paint, 2 x M20 x 1.5 cable Entry, IP65

. Pointek CLS200 RF Capacitive Level Switch, Variant with Sanitary Rod. Level and level/interface detection of liquids, solids, slurries and foam. Insertion length 5.5 m (18.04 ft) adjustable, sensitivity adjustable, with the ability to ignore build-up in the probe. Process connection: Stainless steel. Sanitary No. Mat. 1.4404/316L: 1" Sanitary Clamp Special Version: (length measured from process connection face): Rod extension, 500 mm (19.69") Thermal insulator: Without thermal insulation Process side seals: FFKM (for process temperatures above -20 °C (-4 F)) Probe material: stainless steel, mat no. 1.4404/316L with PVDF probe Approvals: Ex protection for CE dust, C-TICK, ATEX II 1/2 D T100 C Case and lid: aluminium, epoxy coated, 2 x M20 x 1.5 Cable entry, IP65
