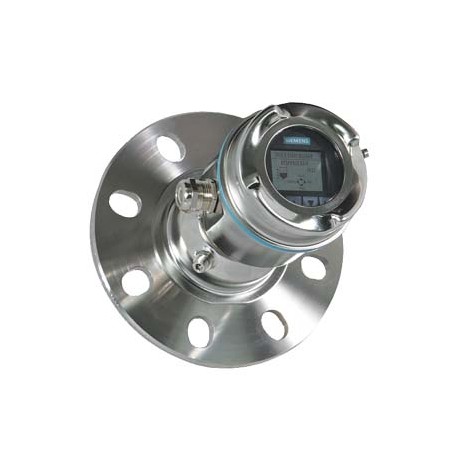

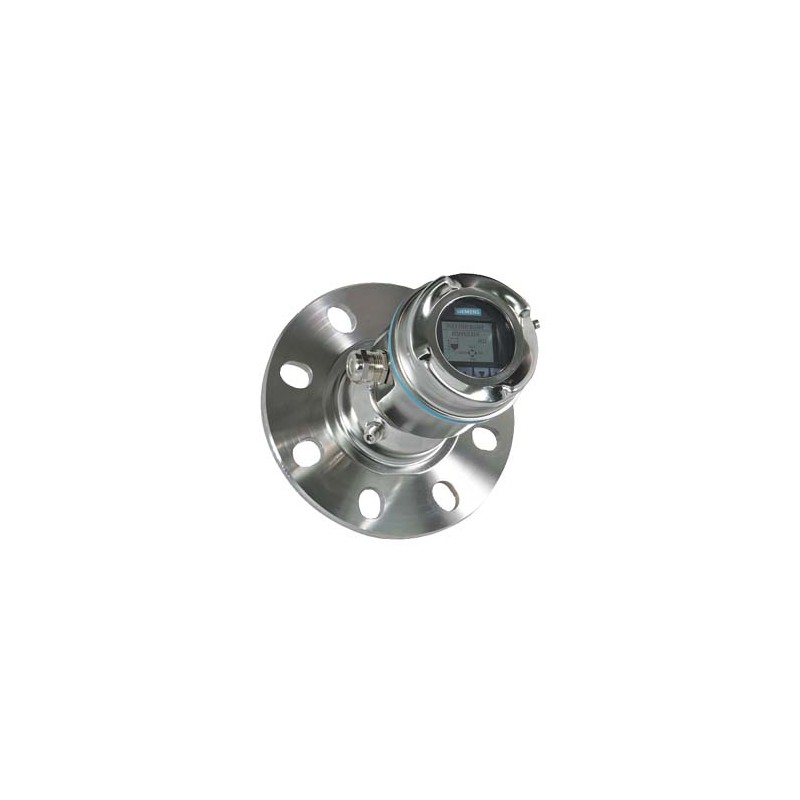

7ML5440-0DA00-0BA2 SIEMENS SITRANS LR560: 2-wire FMCW radar level transmitter frequency 78 GHz, for continuo..
7ML5440-0DA00-0BA2
SIEMENS
Product on demand only, returns will not be accepted.
SITRANS LR560: 2-wire FMCW radar level transmitter frequency 78 GHz, for continuous level monitoring of solid materials. The manual programmer must be ordered separately! Measurement range and process temperature: 40 m max. range, -40 ... +100 C Process connection Universal flat face flange compatible with ANSI/DIN/JIS flanges: 3" / 80 mm, 316L stainless steel Box (with cable entry): Stainless steel, 1 X 1/2" NPT. Label: Sitrans LR560 Pressure: 0.5 bar g (7.5 psi g) max. Output/Communications: PROFIBUS PA Approvals: General Purpose, FM CSAUS/C, Industry Canada, FCC, CE, RED, RCM User Interface (Local): With LDI (User Interface)
SITRANS LR560 Recessed Lens Radar Level Transmitter - continuous, non-contact measurement, 100 m (328 ft) range, for general applications with solids. Measurement range and process temperature: 40 m max. range, -40 ... +100 C Process connection Universal flat face flange compatible with ANSI/DIN/JIS flanges: 3" / 80 mm, 316L stainless steel Box (with cable entry): Stainless steel, 1 X 1/2" NPT. Label: Sitrans LR560 Pressure: 0.5 bar g (7.5 psi g) max. Output/Communications: PROFIBUS PA Approvals: Ordinary Locations/General Purpose (Non-Ex), FM, cCSAus, IC, FCC, CE, UKCA, RED, RCM User Interface (Local): With LDI (User Interface)
SENSORS AND COMMUNICATIONS > Non-ultrasonic level measuring equipment
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| product | ||||||||||||||||||||||
| Item number (market number) | 7ML5440-0DA00-0BA2 | |||||||||||||||||||||
| Product description | SITRANS LR560: 2-wire FMCW radar level transmitter frequency 78 GHz, for continuous level monitoring of solid materials. The manual programmer must be ordered separately! Measurement range and process temperature: 40 m max. range, -40 ... +100 C Process connection Universal flat face flange compatible with ANSI/DIN/JIS flanges: 3" / 80 mm, 316L stainless steel Box (with cable entry): Stainless steel, 1 X 1/2" NPT. Label: Sitrans LR560 Pressure: 0.5 bar g (7.5 psi g) max. Output/Communications: PROFIBUS PA Approvals: General Purpose, FM CSAUS/C, Industry Canada, FCC, CE, RED, RCM User Interface (Local): With LDI (User Interface) | |||||||||||||||||||||
| Product family | unavailable | |||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active product | |||||||||||||||||||||
| Price data | ||||||||||||||||||||||
| Price group / House and local price group | 39J/8L2 | |||||||||||||||||||||
| Metal factor | none | |||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||
| Export control regulations | ECCN: 3A991X / AL: N | |||||||||||||||||||||
| Delivery time | 14 Day/Days | |||||||||||||||||||||
| Net weight (kg) | 6,000 Kg | |||||||||||||||||||||
| Product Dimensions (W x L x H) | unavailable | |||||||||||||||||||||
| Packaging dimension | unavailable | |||||||||||||||||||||
| Unit of measurement package size | unavailable | |||||||||||||||||||||
| Unit of measurement | 1 piece | |||||||||||||||||||||
| Quantity per package | 1 | |||||||||||||||||||||
| Additional product information | ||||||||||||||||||||||
| Ean | unavailable | |||||||||||||||||||||
| Upc | unavailable | |||||||||||||||||||||
| Commodity code | 90261029 | |||||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-4 | |||||||||||||||||||||
| Product group | 4716 | |||||||||||||||||||||
| Country of origin | Canada | |||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | RoHS compliant since: 10/01/03 | |||||||||||||||||||||
| Product class | C: manufactured products produced on demand, which cannot be reused or re-utilised or returned against credit. | |||||||||||||||||||||
| Mandatory category of return of electrical and electronic equipment after use | Yes | |||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||
| Classifications | ||||||||||||||||||||||
| ||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN.pdf | 115 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
