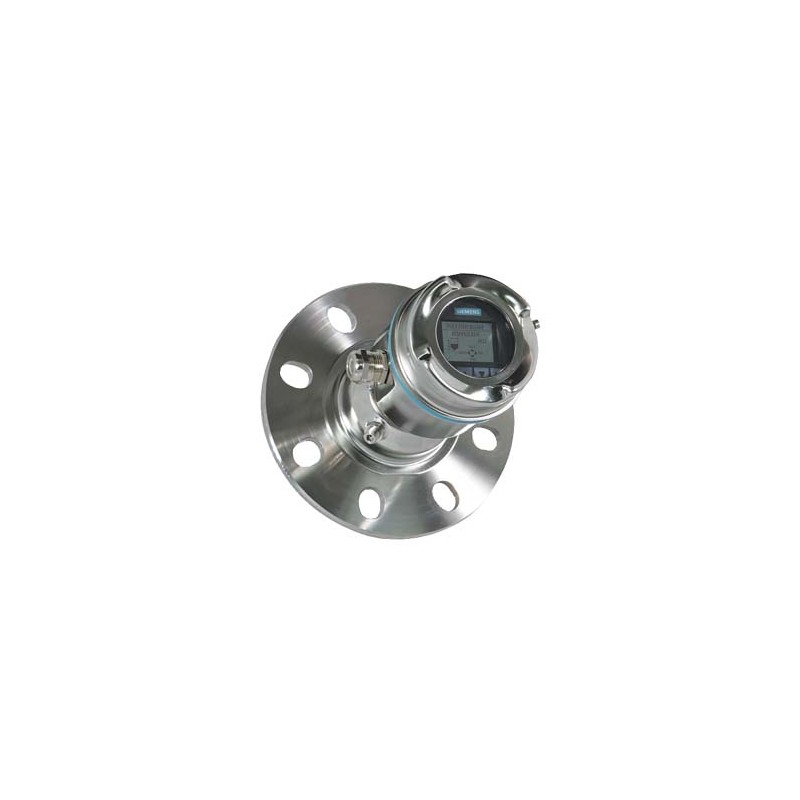

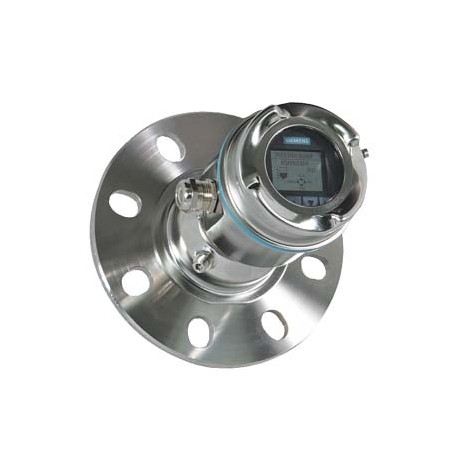

7ML5440-0BA00-0AA1 SIEMENS SITRANS LR560 Radar level transmitter with flush lens antenna: continuous, non-co..
7ML5440-0BA00-0AA1
SIEMENS
Product on demand only, returns will not be accepted.
SITRANS LR560 Radar level transmitter with flush lens antenna: continuous, non-contact, 100 m (328 ft) range, for general solids applications. Measurement and process temperature range: 40m (131 ft) max range, -40 C degrees to +100 C degrees Process connection: Universal flat-faced flange fits ANSI/DIN/JIS flanges: 4" / 100 mm, 304 stainless steel Enclosure (with cable inlet): Stainless Steel, 1 X 1/2" NPT . Label: Sitrans LR560 Pressure Rating: 0.5 bar g (7.5 psi g) maximum Output/communication: 4 to 20 mA, HART Approvals: Ordinary Locations/General Purpose (Non-Ex), FM, cCSAus, IC, FCC, CE, UKCA, RED, RCM Local display interface: Without LDI (local display interface)
SENSORS AND COMMUNICATIONS > Non-ultrasonic level measuring equipment
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7ML5440-0BA00-0AA1 | |||||||||||||||||||||||||||||||||
| Product Description | SITRANS LR560 Radar level transmitter with flush lens antenna: continuous, non-contact, 100 m (328 ft) range, for general solids applications. Measurement and process temperature range: 40m (131 ft) max range, -40 C degrees to +100 C degrees Process connection: Universal flat-faced flange fits ANSI/DIN/JIS flanges: 4" / 100 mm, 304 stainless steel Enclosure (with cable inlet): Stainless Steel, 1 X 1/2" NPT . Label: Sitrans LR560 Pressure Rating: 0.5 bar g (7.5 psi g) maximum Output/communication: 4 to 20 mA, HART Approvals: Ordinary Locations/General Purpose (Non-Ex), FM, cCSAus, IC, FCC, CE, UKCA, RED, RCM Local display interface: Without LDI (local display interface) | |||||||||||||||||||||||||||||||||
| Product family | SITRANS LR560 | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM400:Phase Out Started | |||||||||||||||||||||||||||||||||
| PLM Effective Date | Product phase-out since: 25.03.2024 | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 8L2 / 8L2 | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | ECCN : EAR99I / AL : N | |||||||||||||||||||||||||||||||||
| Estimated dispatch time (Working Days) | 14 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 6,000 Kg | |||||||||||||||||||||||||||||||||
| Package size unit of measure | Not available | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | Not available | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 90318020 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-4 | |||||||||||||||||||||||||||||||||
| Product Group | 4716 | |||||||||||||||||||||||||||||||||
| Group Code | R3P0 | |||||||||||||||||||||||||||||||||
| Country of origin | Canada | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 10.01.2003 | |||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| SCIP number | ||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN.pdf | 115 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 7ML5440-0BA00-0AA1 7ML5440-0BA00-0AA1 EN_7ML5440-0BA00-0AA1.pdf | 113 Kbytes |
|
