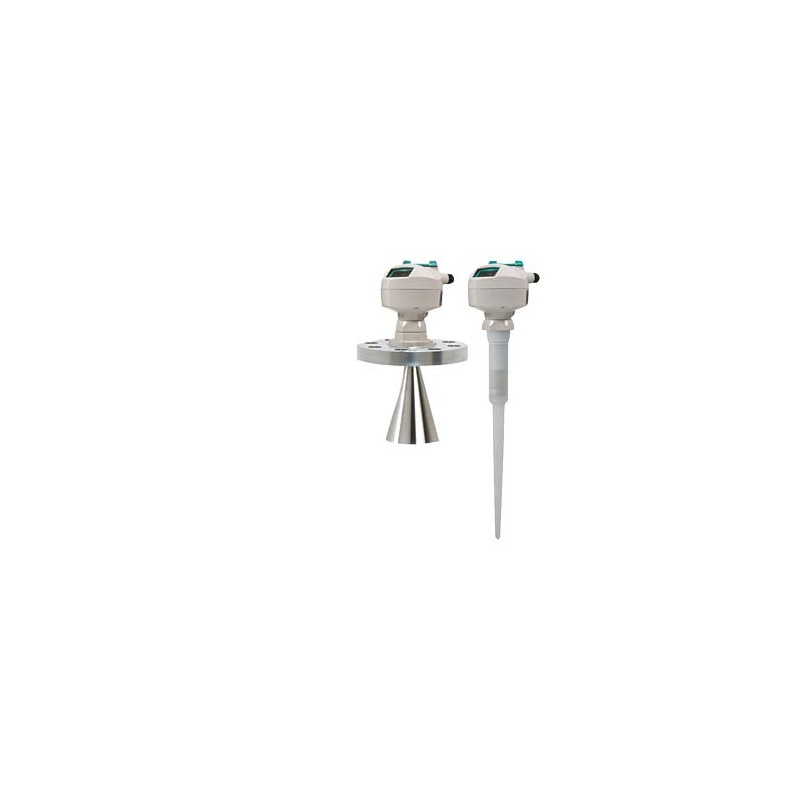

7ML5423-1CA41-2CD0 SIEMENS SITRANS LR200 Radar level transmitter with PTFE rod: continuous, non-contact, 20 ..
7ML5423-1CA41-2CD0
SIEMENS
Product on demand only, returns will not be accepted.
SITRANS LR200 Radar level transmitter with PTFE rod: continuous, non-contact, 20 m (66 ft) range, for liquids and slurries. Antenna material: PTFE Process Connection Flat faced flanges (316L stainless steel): DN 100 PN 16, Type A, flat faced Antenna Extention: 150 mm (6 inch) extension, 316 stainless steel shield Process Seal/Gasket: FKM O-ring, not available for FF flanges with Antenna options 0,1,2 Enclosure/Cable inlet: Aluminum, Epoxy painted, 2 x 1/2" NPT, Communication/Output: 4-20mA HART, start-up at <3.6mA Approvals: Intrinsically Safe, FM Class I, II, Div 1, Groups A, B, C, D, E, F, G, FCC Pressure rating: rating per pressure/temperature curves in instruction manual
SITRANS LR200 PTFE Rod Radar Level Transmitter - Continuous, non-contact, 20 m (66 ft) range measurement for liquids and slurries. Antenna Material: PTFE Process Connection Flat Flanges (316L Stainless Steel): DN 100 PN 16, Type A, Flat Flange Antenna Extender: 150 mm (6"), Extension, 1.4404/316L Stainless Steel Screen Gasket: FKM O-Ring, Not Available for Flat Flange Combined with Antenna Options 0, 1, 2 Cable Box/Entry: Epoxy Coated Aluminum 2 x 1/2" NPT, Siemens User Interface LUI (Local User Interface) communication/output: 4 ... 20 mA, HART, start with <3.6 mA approvals: FM, class I and II, Div I, group A-G, 6.3 GHz degree of protection intrinsically safe (IS) with appropriate barrier nominal pressure: According to the pressure/temperature curves in the operating instructions
SENSORS AND COMMUNICATIONS > Non-ultrasonic level measuring equipment
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7ML5423-1CA41-2CD0 | |||||||||||||||||||||||||||||||||
| Product Description | SITRANS LR200 Radar level transmitter with PTFE rod: continuous, non-contact, 20 m (66 ft) range, for liquids and slurries. Antenna material: PTFE Process Connection Flat faced flanges (316L stainless steel): DN 100 PN 16, Type A, flat faced Antenna Extention: 150 mm (6 inch) extension, 316 stainless steel shield Process Seal/Gasket: FKM O-ring, not available for FF flanges with Antenna options 0,1,2 Enclosure/Cable inlet: Aluminum, Epoxy painted, 2 x 1/2" NPT, Communication/Output: 4-20mA HART, start-up at <3.6mA Approvals: Intrinsically Safe, FM Class I, II, Div 1, Groups A, B, C, D, E, F, G, FCC Pressure rating: rating per pressure/temperature curves in instruction manual | |||||||||||||||||||||||||||||||||
| Product family | SITRANS LR200 | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM400:Phase Out Started | |||||||||||||||||||||||||||||||||
| PLM Effective Date | Product phase-out since: 25.03.2024 | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 8L2 / 8L2 | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | ECCN : EAR99I / AL : N | |||||||||||||||||||||||||||||||||
| Estimated dispatch time (Working Days) | 39 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 2,000 Kg | |||||||||||||||||||||||||||||||||
| Package size unit of measure | Not available | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | Not available | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 90261029 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-4 | |||||||||||||||||||||||||||||||||
| Product Group | 4716 | |||||||||||||||||||||||||||||||||
| Group Code | R3P0 | |||||||||||||||||||||||||||||||||
| Country of origin | Canada | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 20.07.2017 | |||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| SCIP number | ||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN.pdf | 115 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 7ML5423-1CA41-2CD0 7ML5423-1CA41-2CD0 EN_7ML5423-1CA41-2CD0.pdf | 114 Kbytes |
|
