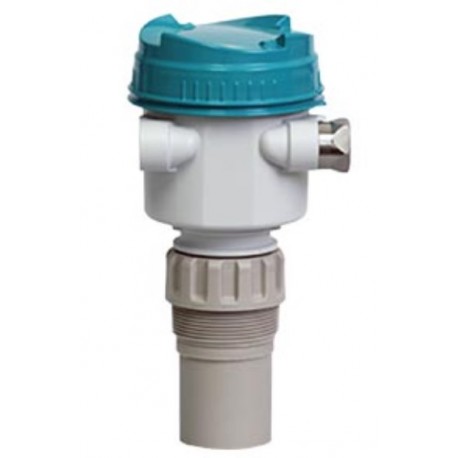

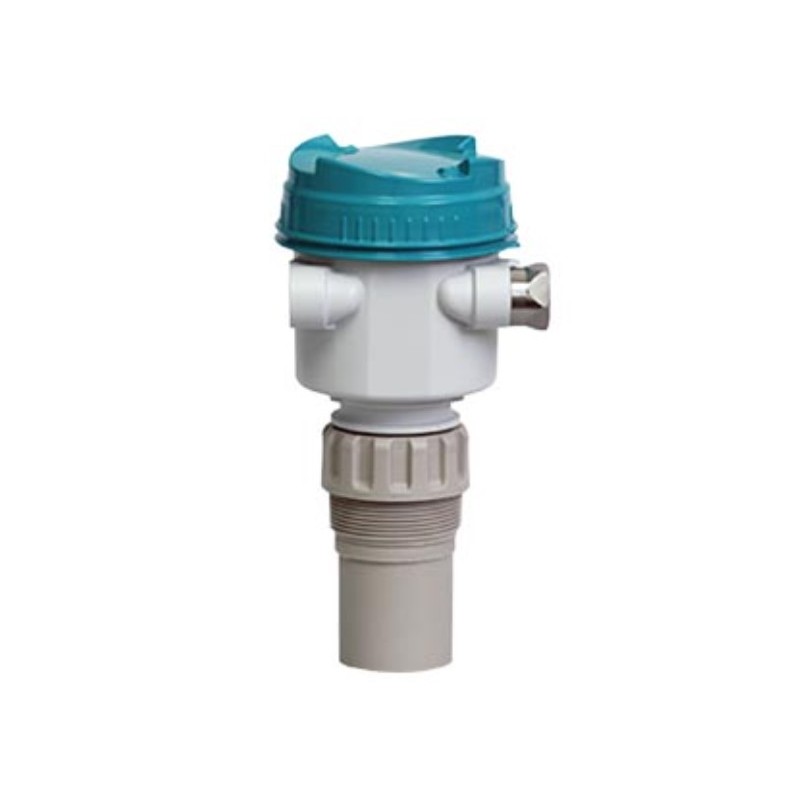

7ML5117-1DE07-4AF0 SIEMENS 7ML5117-1DE07-4AF0 SITRANS Probe LU240 Ultrasonic level transmitter ideal for lev..
7ML5117-1DE07-4AF0
SIEMENS
7ML5117-1DE07-4AF0 SITRANS Probe LU240 Ultrasonic level transmitter ideal for level, volume, and volume flow measurements. It works with liquids, slurries, and bulk materials up to 12 m (40 ft). . Communications: 4 to 20 mA level only Ingress protection: IP66, IP68, TYPE 4X, 6 Measurement range/ wetted parts: 200 ... 6000 mm (7.87 ... 236.22 inch), PVDF Copolymer Process connection: R 2" [(BSPT), EN 10226] . Non wetted parts: Plastic (PBT/PC material) Enclosure Type of protection: Ordinary Locations/General Purpose (Non-Ex), CCSAUS, CE, UKCA, KC, RCM, EAC Electrical connections/ cable entries: 2 x M20 x 1.5 (one general purpose Polyamide cable gland and one Polyamide blocking plug provided) Local HMI: Without display (blind lid of PBT/PC material)
SENSORS AND COMMUNICATIONS > Ultrasonic level measurement equipment
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲Specifications
Product related
Article number
7ML5117-1DE07-4AF0
Life cycle status
Active Product
Product Family
EAN
UPC
Commodity Code
90268020
Pricing related
Customer Price
–
List Price
–
Region Specific Price Group / Headquarter Price Group
8L1 / 8L1
Surcharge for raw material
Metal Factor
–
Delivery related
Export Control Regulations
ECCN : EAR99 / AL : N
Standard delivery time
15 Day/Days
Packaging dimensions (L x W x H)
Not available
Net weight
1,25 Kg
Quantity Unit
1 Piece
Packaging Quantity
1
Dangerous goods
No
Environment related
WEEE (2012/19/EU) Take-Back Obligations
Yes
Compliance with the substance restrictions according to RoHS directive
Since: 10.01.2003
REACH Art. 33 Duty to inform according to the current list of candidates
- Reach Information
SCIP Number
not available
Siemens specific
Product Group
4710
Catalog ID
FI01-4
Group Code
R3P0
Country of origin
Canada
Product class
C: products manufactured / produced to order, which cannot be reused or re-utilized or be returned against credit.
Classification
eClass
- Version : 14, Classification : 27-20-05-06
- Version : 12, Classification : 27-20-05-06
- Version : 9.1, Classification : 27-20-05-06
- Version : 9, Classification : 27-20-05-06
- Version : 8, Classification : 27-20-05-06
- Version : 7.1, Classification : 27-20-05-06
- Version : 6, Classification : 27-20-05-06
ETIM
- Version : 10, Classification : EC003001
- Version : 9, Classification : EC003001
- Version : 8, Classification : EC003001
- Version : 7, Classification : EC003001
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN.pdf | 115 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
