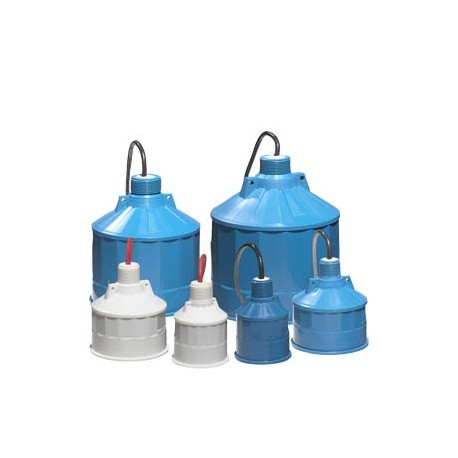

7ML1118-3BA30 SIEMENS Echomax XPS-15 High-frequency ultrasonic transducer for a wide variety of liquid and s..
7ML1118-3BA30
SIEMENS
Product on demand only, returns will not be accepted.

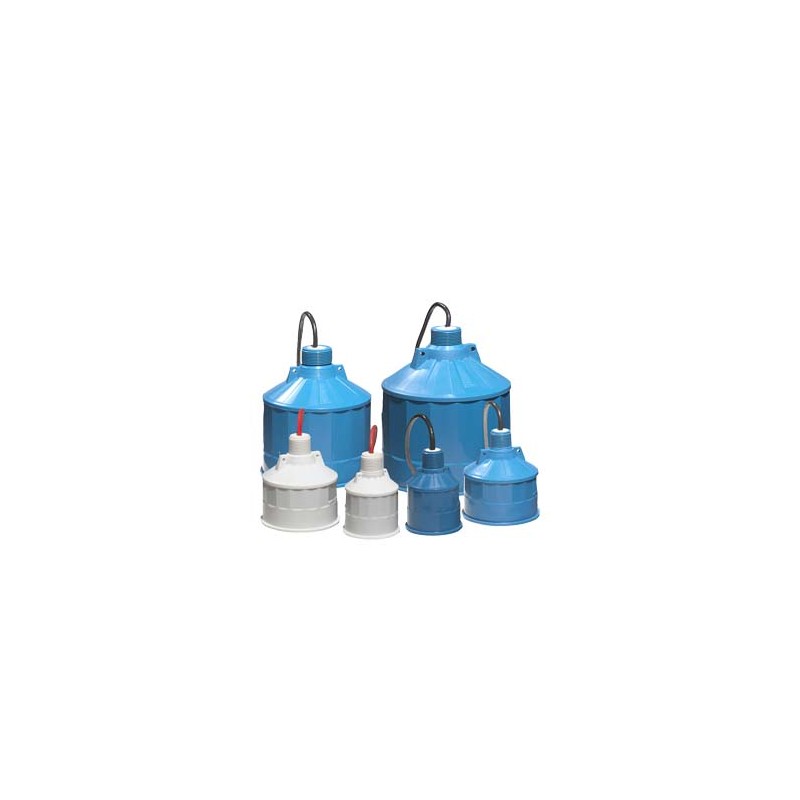

Echomax XPS-15 High-frequency ultrasonic transducer for a wide variety of liquid and solid applications, for use with approved controllers. Includes integral temperature sensor. Measuring range: min. 0.3m, max. 15 m Mounting thread and facing: R 1" ((BSPT) EN 10226-1) Cable length: 5 m (16.40 ft) Flange: No Mounting flange Approvals: ATEX II 2GD, FM Class I Div 2/SAA Class 1 Zone 1 Manual: Multi-Language,Quick Start
EchoMax XPS-15 Ultrasonic Level Sensor: Continuous, non-contact measurement, 15 m (49.21 ft) range, for liquids and solids. Process connection thread: 1" BSP, with standard coating. Connection cable length: 5 m. Without mounting flange. Certifications: ATEX II 2GD Ex mb IIC T4 Gb, ATEX II 2GD Ex tb IIIC T135°C Db, Ta = -40°C to +95°C; UKEX II 2GD Ex mb IIC T4 Gb, UKEX II 2GD Ex tb IIIC T135°C Db, Ta = -40°C to +95°C; IECEx SIR 13.0009X Ex mb IIC T4 Gb IECEx SIR 13.0009X Ex tb IIIC T135°C Db, Ta = -40°C to +95°C; FM Class I, Div. 2, Groups A, B, C, D; FM Class II, Div. 1, Groups E, F, G; FM Class III Instructions manual: Not included.
SENSORS AND COMMUNICATIONS > Ultrasonic level measurement equipment
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | ||||||||||||||||||||||
| Article Number (Market Facing Number) | 7ML1118-3BA30 | |||||||||||||||||||||
| Product Description | Echomax XPS-15 Transducer High-frequency ultrasonic transducer designed for a wide variety of liquid and solid applications, for use with approved controllers. Includes integral temperature sensor. Measuring range: min. 0.3m, max. 15 m Mounting thread and facing: R 1" ((BSPT) EN 10226-1) Cable length: 5 m (16.40 ft) Flange: No Mounting flange Approvals: ATEX II 2GD, FM Class I Div 2/SAA Class 1 Zone 1 Manual: Multi-Language,Quick Start | |||||||||||||||||||||
| Product family | Not available | |||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||
| Price data | ||||||||||||||||||||||
| Price Group | 8L1 | |||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||
| Export Control Regulations | ECCN : EAR99I / AL : N | |||||||||||||||||||||
| Standard lead time ex-works | 1 Day/Days | |||||||||||||||||||||
| Net Weight (kg) | 1,520 Kg | |||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | |||||||||||||||||||||
| Packaging Dimension | Not available | |||||||||||||||||||||
| Package size unit of measure | Not available | |||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||
| EAN | Not available | |||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||
| Commodity Code | 90329000 | |||||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-4 | |||||||||||||||||||||
| Product Group | 4710 | |||||||||||||||||||||
| Country of origin | Canada | |||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 10.01.2003 | |||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||
| Classifications | ||||||||||||||||||||||
| ||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN.pdf | 115 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
