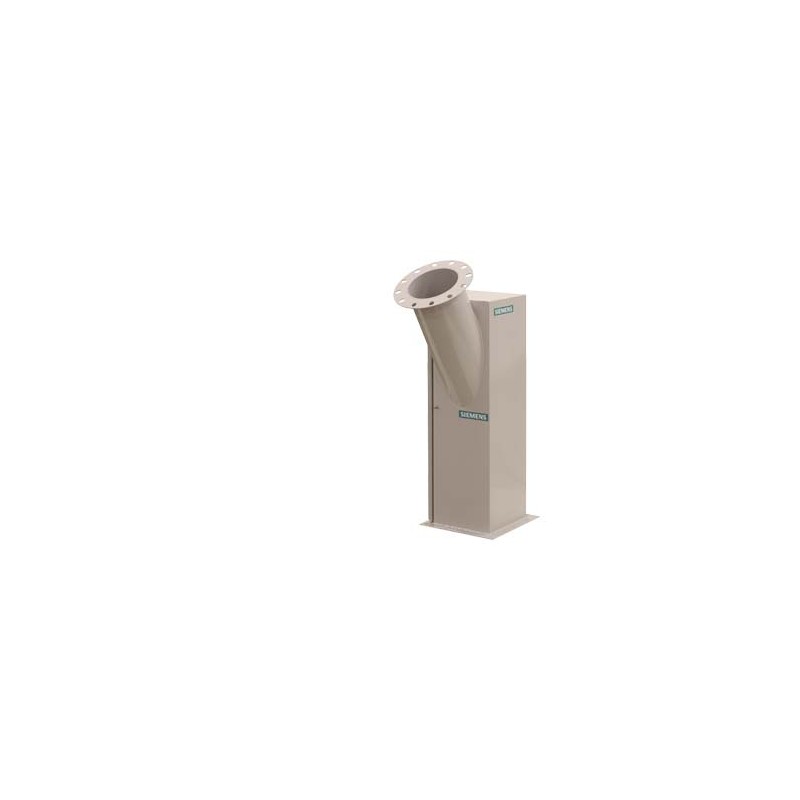

7MH7186-1EB10-1A SIEMENS SITRANS WF100 Solids flowmeter: impact solids flowmeter for low to medium capacity ..
7MH7186-1EB10-1A
SIEMENS
Product on demand only, returns will not be accepted.
SITRANS WF100 Solids flowmeter: impact solids flowmeter for low to medium capacity applications. Accuracy is ± 1 % or better, with capacity up to 200 t/h (220 STPH). Flowguide size (Universal flat- faced flange fits ANSI/DIN/JIS flanges): 4" / 100mm Fabrication: AISI 316 Stainless steel with PTFE coated infeed 4" (100mm) Flowguide Load Cell, Stainless steel (17-4 PH (1.4568) construction with 304 (1.4301) stainless steel cover): 5 Ib (2.3 kg) Sensing Plate Fabrication: 4" (100mm) AISI 304 Stainless steel Approvals: CSA/FM Class II, Div. 1, Groups E, F, G, Class III; ATEX II 2D Ex tb IIIC T80 °C Db IP65, Ta = -40 °C ... +65 °C; UKEX II 2D Ex tb IIIC T80 °C Db IP65, Ta = -40 °C ... +65°C; IECEx Ex tb IIIC T80 °C Db IP65, Ta = -40 °C ....
. SITRANS WF100 Bulk Solids Flowmeter: Impact Flowmeter for Low or Medium Capacity Applications. Min. accuracy ± 1%, capacity up to 200 t/h (220 STPH). Universal Flat Face Flange Compatible with ANSI/DIN/JIS Flanges: 4"/100 mm Construction: AISI 316 Stainless Steel Flow Guide with Teflon Lined Inlet Duct, 4" (100 mm) Load Cell, Stainless Steel (17-4 PH (1.4568) with 304 Stainless Steel Cover (1.4301)): 5 Ib (2.3 kg) Sensor Board Construction: 4" (100 mm), AISI 304 stainless steel Approvals: CSA/FM Class II, Div. 1, Groups E, F, G, Class III; ATEX II 2D Ex tb IIIC T80 °C Db IP65, Ta = -40 °C ... +65 °C; UKEX II 2D Ex tb IIIC T80 °C Db IP65, Ta = -40 °C ... +65°C; IECEx Ex tb IIIC T80 °C Db IP65, Ta = -40 °C ... +65 °C; EAC Ex, 0Ex tb IIIC T80 °C Db X; CE, UKCA, RCM
SITRANS WF-100 Impact solids flowmeter for low to medium capacity applications. Low cost compact unit improves processing, increases efficiency and provides significant cost savings. Flowguide size (Universal flat- faced flange fits ANSI/DIN/JIS flanges): 4" / 100mm Fabrication: AISI 316 Stainless steel with PTFE coated infeed 4" (100mm) Flowguide Load Cell, Stainless steel (17-4 PH (1.4568) construction with 304 (1.4301) stainless steel cover): 5 Ib (2.3 kg) Sensing Plate Fabrication: 4" (100mm) AISI 304 Stainless steel Approvals: CSA/FM Class II, Div. 1, Groups E, F, G and Class III, ATEX II 2D, Ex tD A21 IP65 T70 C, CE, IECEx, Ex tD A21 IP65 T70 C, EAC Ex .
SENSORS AND COMMUNICATIONS > SIWAREX weighing systems
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | |||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7MH7186-1EB10-1A | ||||||||||||||||||||||||
| Product Description | SITRANS WF100 Solids flowmeter: impact solids flowmeter for low to medium capacity applications. Accuracy is ± 1 % or better, with capacity up to 200 t/h (220 STPH). Flowguide size (Universal flat- faced flange fits ANSI/DIN/JIS flanges): 4" / 100mm Fabrication: AISI 316 Stainless steel with PTFE coated infeed 4" (100mm) Flowguide Load Cell, Stainless steel (17-4 PH (1.4568) construction with 304 (1.4301) stainless steel cover): 5 Ib (2.3 kg) Sensing Plate Fabrication: 4" (100mm) AISI 304 Stainless steel Approvals: CSA/FM Class II, Div. 1, Groups E, F, G, Class III; ATEX II 2D Ex tb IIIC T80 °C Db IP65, Ta = -40 °C ... +65 °C; UKEX II 2D Ex tb IIIC T80 °C Db IP65, Ta = -40 °C ... +65°C; IECEx Ex tb IIIC T80 °C Db IP65, Ta = -40 °C ... +65 °C; EAC Ex, 0Ex tb IIIC T80 °C Db X; CE, UKCA, RCM . | ||||||||||||||||||||||||
| Product family | SITRANS WF100 | ||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 8W1 / 8W1 | ||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||
| Export Control Regulations | ECCN : EAR99I / AL : N | ||||||||||||||||||||||||
| Estimated dispatch time (Working Days) | 66 Day/Days | ||||||||||||||||||||||||
| Net Weight (kg) | 11,365 Kg | ||||||||||||||||||||||||
| Package size unit of measure | Not available | ||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||
| EAN | Not available | ||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||
| Commodity Code | 90318080 | ||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | WT02 | ||||||||||||||||||||||||
| Product Group | 4715 | ||||||||||||||||||||||||
| Group Code | R3P5 | ||||||||||||||||||||||||
| Country of origin | Canada | ||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Given | ||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | ||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||
| SCIP number | |||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||
| |||||||||||||||||||||||||
