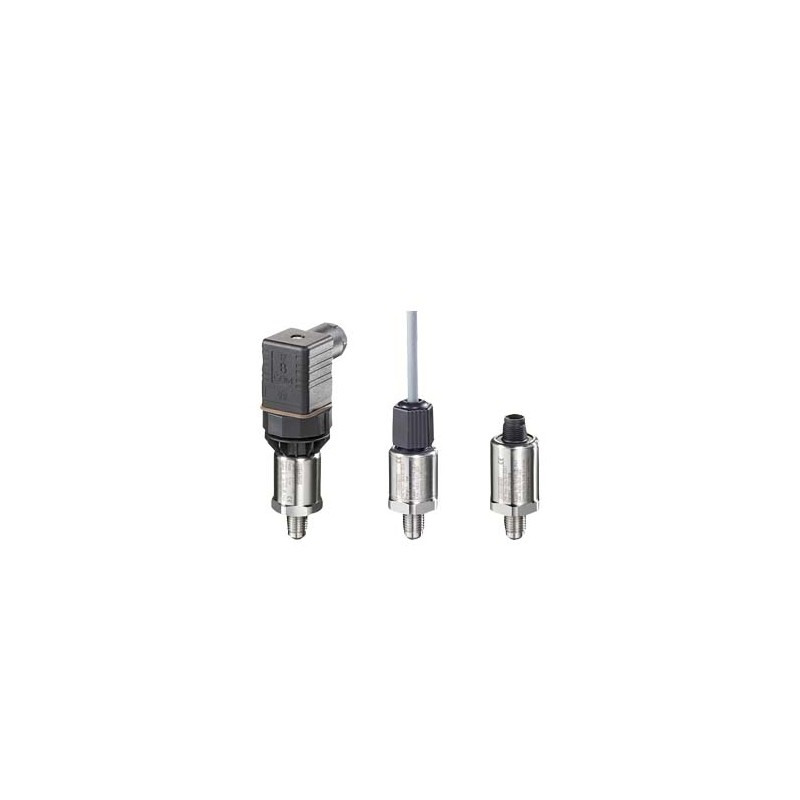

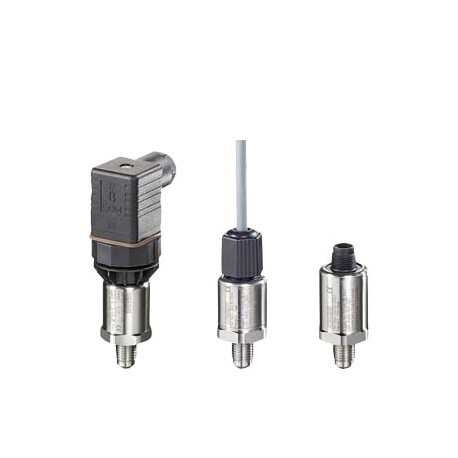

7MF1566-3AA01-6CD1 SIEMENS SITRANS P210 Transmitters for pressure and absolute pressure for low-pressure app..
7MF1566-3AA01-6CD1
SIEMENS
Product on demand only, returns will not be accepted.
SITRANS P210 Transmitters for pressure and absolute pressure for low-pressure applications Non-linearity: 0,25 percent (typically) wetted parts material: stainless steel plus sealing material; non-wetted parts material: stainless steel Measuring range for gauge: 0 to 100 mbar, Overload- pressure 400 mbar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V with Explosion protection: EEx ia IIC T4 Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland PG11 (with connector) Process connection: G1/4" male thread to EN837-1 (1/4"-BSP male) Sealing material between sensor and housing: EPDM Standard version
SENSORS AND COMMUNICATIONS > SITRANS P - Pressure transmitters
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | |||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7MF1566-3AA01-6CD1 | ||||||||||||||||||||||||
| Product Description | SITRANS P210 Transmitters for pressure and absolute pressure for low-pressure applications Non-linearity: 0,25 percent (typically) wetted parts material: stainless steel plus sealing material; non-wetted parts material: stainless steel Measuring range for gauge: 0 to 100 mbar, Overload- pressure 400 mbar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V with Explosion protection: EEx ia IIC T4 Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland PG11 (with connector) Process connection: G1/4" male thread to EN837-1 (1/4"-BSP male) Sealing material between sensor and housing: EPDM Standard version | ||||||||||||||||||||||||
| Product family | Not available | ||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||
| Price Group | 8P4 | ||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||
| Export Control Regulations | ECCN : N / AL : N | ||||||||||||||||||||||||
| Standard lead time ex-works | 20 Day/Days | ||||||||||||||||||||||||
| Net Weight (kg) | 0,200 Kg | ||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | ||||||||||||||||||||||||
| Packaging Dimension | Not available | ||||||||||||||||||||||||
| Package size unit of measure | Not available | ||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||
| EAN | Not available | ||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||
| Commodity Code | 90262020 | ||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-1 | ||||||||||||||||||||||||
| Product Group | 4778 | ||||||||||||||||||||||||
| Country of origin | Switzerland | ||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 20.07.2017 | ||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||
| |||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN.pdf | 115 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 7MF1566-3AA01-6CD1 7MF1566-3AA01-6CD1 EN_7MF1566-3AA01-6CD1.pdf | 82 Kbytes |
|
