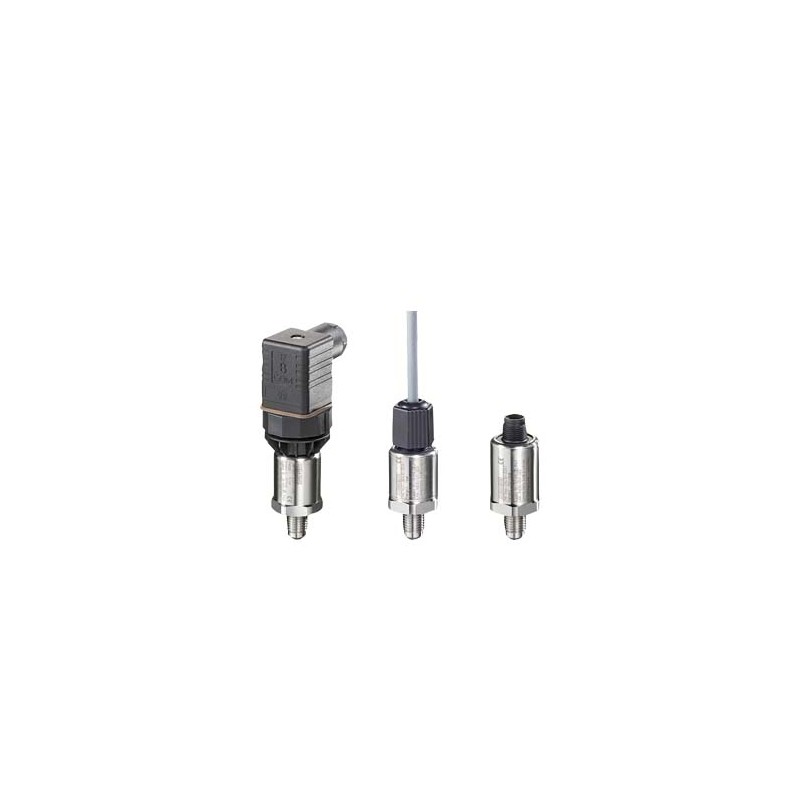

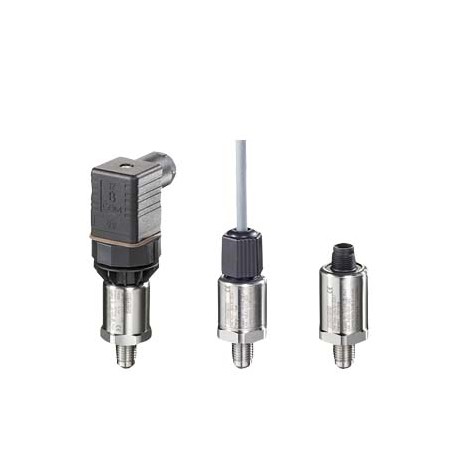

7MF1566-3AA00-1AA1 SIEMENS SITRANS P210 Transmitters for pressure and absolute pressure for low-pressure app..

SITRANS P210 Transmitters for pressure and absolute pressure for low-pressure applications Non-linearity: 0,25 percent (typically) wetted parts material: stainless steel plus sealing material; non-wetted parts material: stainless steel Measuring range for gauge: 0 to 100 mbar, Overload- pressure 400 mbar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland M16 (with connector) Process connection: G1/2" male to EN 837-1 (1/2" BSP male) (standard for metric pressure ranges mbar, bar) Sealing material between sensor and housing: Viton (FPM, Standard) Standard version

SITRANS P210 Transmitter for Pressure for Low Pressure Applications Deviation from the type characteristic 0.25 percent Material of the elements in contact with the fluid: stainless steel and sealing material; Material of the parts that are not in contact with the fluid: stainless steel Measurement range for relative pressure: from 0 to 100 mbar, overload pressure of 400 mbar output signal: 4 to 20 mA two-wire connection auxiliary power: DC 7 to 33 V (DC 10...30 V for ATEX equipment) without explosion protection Electrical connection: connector according to DIN EN 175301-803-A, M16 gland thread (with coupling) process connection: G1/2" external according to EN837-1 (1/2"-BSP exterior); (standard with metric pressure ranges mbar, bar) Sealing material between sensor and housing: Viton (F
