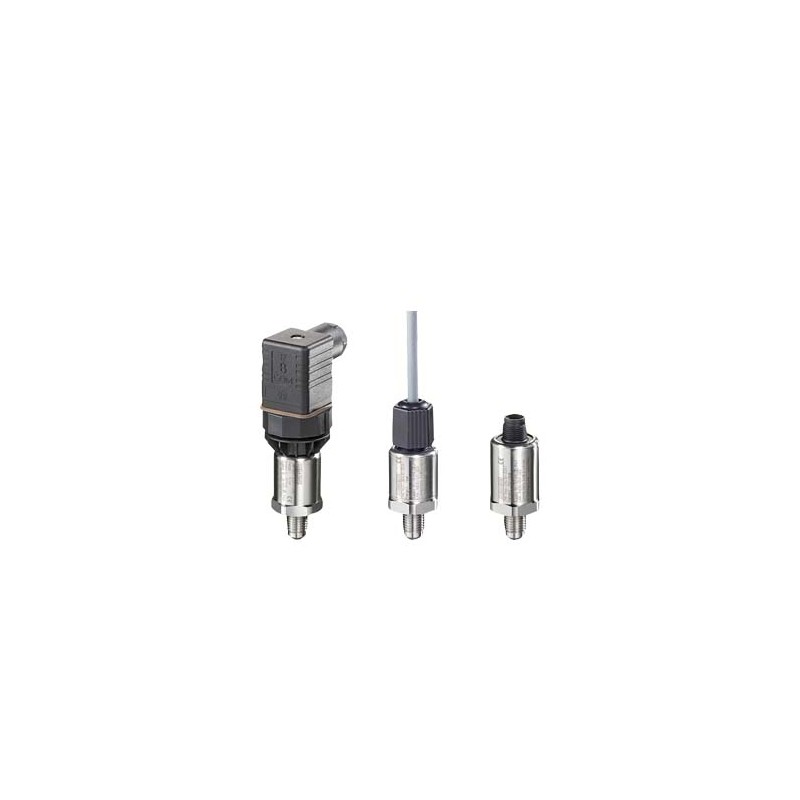

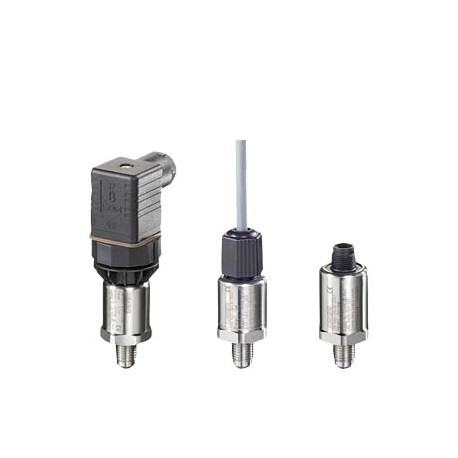

7MF1565-3CA00-1GA1 SIEMENS SITRANS P200 Transmitters for pressure and absolute pressure for general applicat..
7MF1565-3CA00-1GA1
SIEMENS
SITRANS P200 Transmitters for pressure and absolute pressure for general applications Non-linearity: 0,25 percent (typically) wetted parts material:ceramics, stainless steel plus sealing material; non-wetted parts material: stainless steel Measuring range for gauge: 0 to 10 bar, Overload- pressure 25 bar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland M16 (with connector) Process connection: 1/2"-14 NPT male Sealing material between sensor and housing: Viton (FPM, Standard) Standard version
SENSORS AND COMMUNICATIONS > SITRANS P - Pressure transmitters
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7MF1565-3CA00-1GA1 | ||||||||||||||||||||||||||||||||||||
| Product Description | SITRANS P200 Transmitters for pressure and absolute pressure for general applications Non-linearity: 0,25 percent (typically) wetted parts material:ceramics, stainless steel plus sealing material; non-wetted parts material: stainless steel Measuring range for gauge: 0 to 10 bar, Overload- pressure 25 bar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland M16 (with connector) Process connection: 1/2"-14 NPT male Sealing material between sensor and housing: Viton (FPM, Standard) Standard version | ||||||||||||||||||||||||||||||||||||
| Product family | SITRANS P200 | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 8P4 / 8P4 | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | ECCN : N / AL : N | ||||||||||||||||||||||||||||||||||||
| Estimated dispatch time (Working Days) | 1 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,200 Kg | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | Not available | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | Not available | ||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 90262020 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-1 | ||||||||||||||||||||||||||||||||||||
| Product Group | 4778 | ||||||||||||||||||||||||||||||||||||
| Group Code | R3P0 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Switzerland | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | not available | ||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| SCIP number | |||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN.pdf | 115 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 7MF1565-3CA00-1GA1 7MF1565-3CA00-1GA1 EN_7MF1565-3CA00-1GA1.pdf | 113 Kbytes |
|
