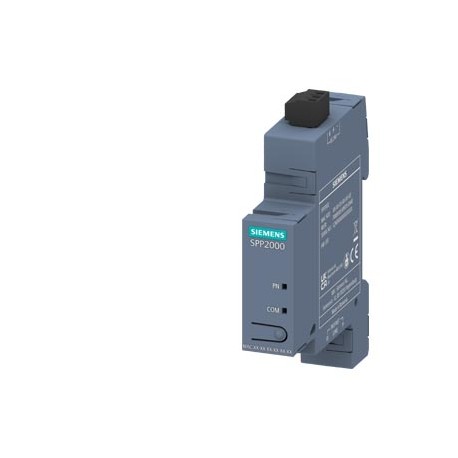

7KM9300-0PP20-0AA0 SIEMENS SENTRON PROFINET Proxy (SPP) connects Modbus TCP compatible variants of SENTRON a.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

7KM9300-0PP20-0AA0 SIEMENS SENTRON PROFINET Proxy (SPP) connects Modbus TCP compatible variants of SENTRON a..

7KM9300-0PP20-0AA0

SIEMENS

SENTRON PROFINET Proxy (SPP) connects Modbus TCP compatible variants of SENTRON appliances with PROFINET IO e.g. 7KM PAC2200 and other SPPs is an Ethernet and transparent switch for common. IP

SENTRON PROFINET Proxy (SPP) connects Modbus TCP compatible variants of SENTRON appliances with PROFINET IO e.g. 7KM PAC2200 and other SPPs is an Ethernet and transparent switch for common. IP. Cancelations and returns limited. Consult conditions.

More details


POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > SENTRON PAC network analyzers. Energy Management Software

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $793.25
Unit price: $793.25
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

SENTRON PROFINET Proxy (SPP) connects Modbus TCP compatible variants of SENTRON appliances with PROFINET IO e.g. 7KM PAC2200 and other SPPs is an Ethernet and transparent switch for common. IP
The version
product trade nameSENTRON
General technical data
port type / according to PROFINET2 ports (switch)
transfer rate type / for RJ45 connector typePROFINET with 100 Mbits/s
MTBF1 891.18 and
galvanic isolationMax insulation voltage: 500 V AC
reference designations / according to DIN 40719, extended according to IEC 204-2 / according to IEC 750P
number of interfaces / according to PROFINET2
interface type 1 / integrated switchYes
● protocol / on interface 1 / media redundancy protocolPROFINET MRP
● PROFINET IO-DeviceYes
transfer type / with Industrial EthernetPROFINET with 100 Mbits/s
product function / on Ethernet interface / auto-negotiationYes
product function / on Ethernet interface / AutocrossoverYes
open IE communicationYes
IRTYes
transfer rate / for connector type RJ45 / 100 Mbit/sYes
service / as PROFINET IO-Device / supports PROFIenergyYes
protocol / on interface 1 / media redundancy protocolYes
product function / PROFINET IO controller / supported / PROFINET system redundancyYes
for open IE communication
● TCP/IPYes
● SNMPYes
● LLDPYes
degree of contamination2, according to IEC 61131
Kind of protection
degree of IP protectionIP20
DEGREE OF IP /Front protectionIP20
combustibility class according to UL 94V 0
fitness for use
● Reactive wattmeterNo
Mechanical Design
height90 mm
width18 mm
depth73 mm
Environmental conditions
ambient temperature / during operation
Min.-25oC
Max.55 °C
ambient temperature / during storage
Min.-25oC
Max.70 °C
Certificates
reference designations / according to EN 61346-2P

Downloads and manuals

General Product Approval

Confirmation

Learn more
Information- and Downloadcenter (Catalogues, Brochures,...)
Industry Mall (online ordering system)
Service&Support (Manuals, Certificates, Features, FAQ,...)
Image database (product photos, 2D dimensioned drawings, 3D models, connection schemes, ...)
CAx-Online-Generator
Tender specifications
date
11/7/2022


Additional data

product
Item number (market number)7KM9300-0PP20-0AA0
Product descriptionSENTRON PROFINET Proxy (SPP) connects Modbus TCP compatible variants of SENTRON appliances with PROFINET IO e.g. 7KM PAC2200 and other SPPs is an Ethernet and transparent switch for common. IP
Product familySENTRON Expansion modules and accessories 7KM PAC
Product Lifecycle (PLM)PM300:Active product
Price data
Price group / House and local price group33B/ 1DD
Metal factornone
Delivery information
Export control regulationsAL : N / ECCN : EAR99
Delivery time2 Day/Days
Net weight (kg)0,070 Kg
Packaging dimension123.00 x 136.00 x 108.00
Unit of measurement package sizeMm
Unit of measurement1 piece
Quantity per package1
Additional product information
Ean4047624189328
Upcunavailable
Commodity code85389091
LKZ_FDB/ CatalogIDLV10
Product group5312
Group CodeQ360
Country of originRomania
Compliance with the substance restrictions according to RoHS directiveRoHS compliant from: 11/11/20
Product classB: Restricted return, contact your Siemens partner contact
Mandatory category of return of electrical and electronic equipment after useYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0.1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0.1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
versionclassification
eClass1.227-20-03-01
eClass627-20-03-01
eClass7.127-20-03-01
eClass827-20-03-01
eClass927-20-03-01
eClass9.127-20-03-01
ETIM7EC002301
ETIM8EC002301

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
7KM9300-0PP20-0AA0 EN_7KM9300-0PP20-0AA0.pdf 307 Kbytes 7KM9300-0PP20-0AA0 EN_7KM9300-0PP20-0AA0.pdf
