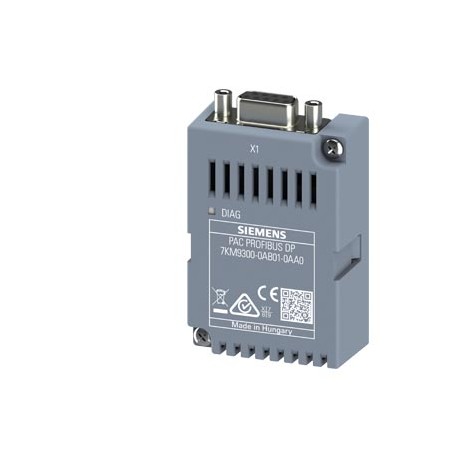

7KM9300-0AB01-0AA0 SIEMENS expansion module PROFIBUS DP plug-in, for 7KM PAC3200 / 3220 4200 / 3VA COM100 / .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

7KM9300-0AB01-0AA0 SIEMENS expansion module PROFIBUS DP plug-in, for 7KM PAC3200 / 3220 4200 / 3VA COM100 / ..

7KM9300-0AB01-0AA0

SIEMENS

expansion module PROFIBUS DP plug-in, for 7KM PAC3200 / 3220 4200 / 3VA COM100 / 800

More details


Devices for distribution board-/surface mounting > Multifunction measuring instrument

POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > SENTRON PAC network analyzers. Energy Management Software

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $402.99
Unit price: $402.99
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Technical data

expansion module PROFIBUS DP plug-in, for 7KM PAC3200 / 3220 4200 / 3VA COM100 / 800
Model
product brand nameSENTRON
product designationPROFIBUS DP expansion module
type of voltage supplyvia PAC 3200 / PAC4200 / COM100 / 800
General technical data
MTBF141.1 y
galvanic isolationMaximum insulation voltage: 500V AC
reference code / according to DIN 40719 extended according to IEC 204-2 / according to IEC 750P
degree of pollution2 according to IEC 61131
Protection class
protection class IPIP20
combustibility class according to UL 94V 0
suitability for use
● reactive power meterNo
Connections
type of electrical connection9-pole Sub-D plug according to IEC 61158
Mechanical Design
height63 mm
width43 mm
depth22 mm
fastening methodpluggable
Environmental conditions
ambient temperature / during operation
● minimum-5 °C
● maximum55 °C
ambient temperature / during storage
● minimum-25 °C
● maximum70 °C
Certificates
reference code / according to EN 61346-2P

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

Confirmation

KC

EAC

RCM

UK Declaration of Conformity

EC/EU-Declaration of Conformity

other

Miscellaneous

PROFIBUS-Certification

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/6/2022


Additional data

Product
Article Number (Market Facing Number)7KM9300-0AB01-0AA0
Product Descriptionexpansion module PROFIBUS DP plug-in, for 7KM PAC3200 / 3220 4200 / 3VA COM100 / 800
Product familySENTRON 7KM PAC Expansion Modules and Accessories
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group15N / 1DD
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,078 Kg
Packaging Dimension50,00 x 81,00 x 68,00
Package size unit of measureCM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209934016
UPC887621871505
Commodity Code85389091
LKZ_FDB/ CatalogIDLV10.1
Product Group5312
Group CodeP360
Country of originHungary
Compliance with the substance restrictions according to RoHS directiveSince: 14.09.2007
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-20-03-01
eClass7.127-20-03-01
eClass827-20-03-01
eClass927-20-03-01
eClass9.127-20-03-01
ETIM5EC002301
ETIM6EC002301
ETIM7EC002301
ETIM8EC002301
UNSPSC1441-11-37-08
UNSPSC1541-11-37-08

ETIM data

ETIM: EC002301 - Multifunction measuring instrument

Value Unit
Ampere meter (EF006555) false
Blind power meter (EF006556) false
With rotational speed meter (EF006557) false
Frequency meter (EF006558) false
Pulse counter (EF006559) false
Voltmeter (EF006560) false
Effective power measurement device (EF006561) false



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
7KM9300-0AB01-0AA0 7KM9300-0AB01-0AA0 EN_7KM9300-0AB01-0AA0.pdf 632 Kbytes 7KM9300-0AB01-0AA0 7KM9300-0AB01-0AA0 EN_7KM9300-0AB01-0AA0.pdf
