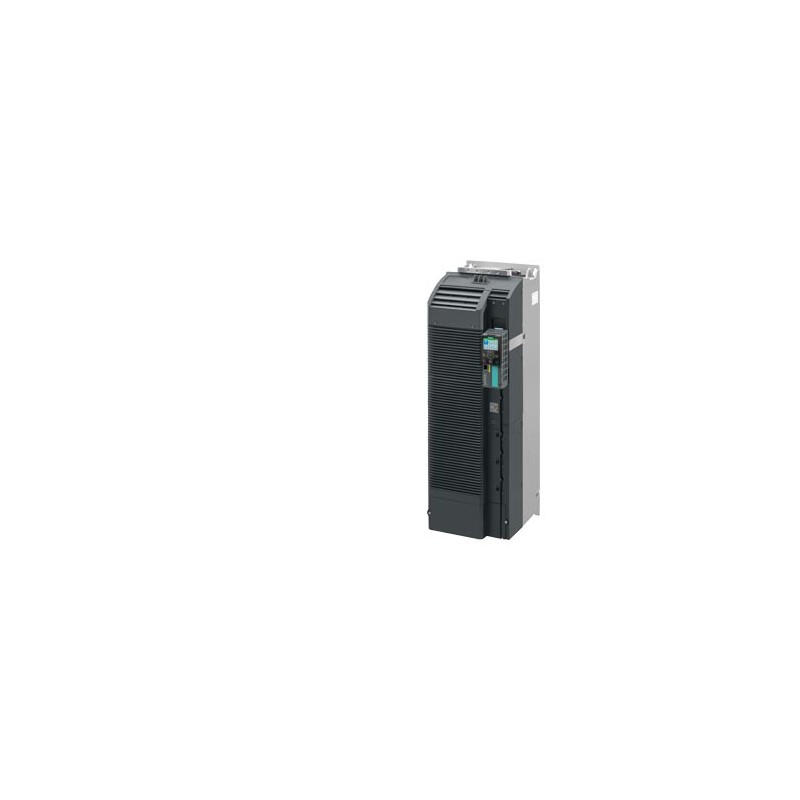

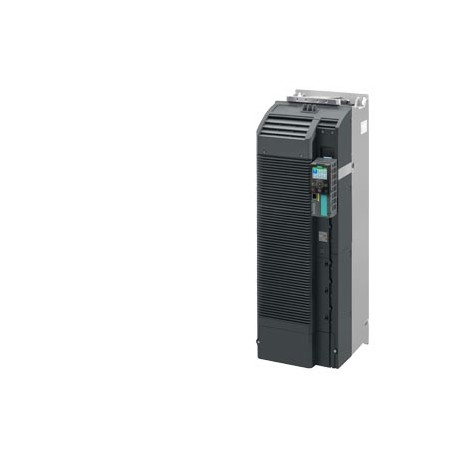

6SL3210-1PE33-0CL0 SIEMENS SINAMICS G120/S120 POWER MODULE PM240-2 FSG Integrated Filter EMC Class C3 WITH B..
6SL3210-1PE33-0CL0
SIEMENS
SINAMICS G120/S120 POWER MODULE PM240-2 FSG Integrated Filter EMC Class C3 WITH BUILT IN BRAKING CHOPPER 3AC380-480V+10/-10% 47-63Hz OUTPUT HIGH OVERLOAD: 132kW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 bis +50 DEG C (HO) OUTPUT LOW OVERLOAD: 160kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 bis +40 DEG C (LO) 1000x305x357 (HXWXD), FSG PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- Version V4.7 SP9 AND V5.1
Home > SIEMENS
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲Specifications
Product related
Article number
6SL3210-1PE33-0CL0
Life cycle status
Active Product
Product Family
Air-cooled Power Modules in blocksize formatEAN
4042948676790
UPC
804766567742
Commodity Code
85044095
Pricing related
Customer Price
21.730,04 EUR
List Price
21.730,04 EUR
Price Group / Headquarter Price Group
327 / 339
Surcharge for raw material
Metal Factor
–
Delivery related
Export Control Regulations
AL : N / ECCN : 9N9999
Standard delivery time
15 Day/Days
Packaging dimensions (L x W x H)
395,00 x 1.190,00 x 591,00 mm
Net weight
105,00 Kg
Quantity Unit
1 Piece
Packaging Quantity
1
Dangerous goods
No
Environment related
WEEE (2012/19/EU) Take-Back Obligations
Yes
Compliance with the substance restrictions according to RoHS directive
Since: 01/01/18
REACH Art. 33 Duty to inform according to the current list of candidates
- Lead CAS-No. 7439-92-1 > 0,1 % (w / w)
- Lead monoxide (lead oxide) CAS-No. 1317-36-8 > 0,1 % (w / w)
- 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol lblREACHCasNo0237 > 0,1 % (w / w)
- Cadmium oxide CAS-No. 1306-19-0 > 0,1 % (w / w)
SCIP Number
c6f63eb8-11f4-47db-b25c-a527cde749ed
Sustainability
Siemens specific
Product Group
2255
Catalog ID
D11.1SD
Group Code
R220
Country of origin
Germany
Product class
A: Standard product which is a stock item could be returned within the returns guidelines/period.
Classification
eClass
- Version : 14, Classification : 27-02-31-01
- Version : 12, Classification : 27-02-31-01
- Version : 9.1, Classification : 27-02-31-01
- Version : 9, Classification : 27-02-31-01
- Version : 8, Classification : 27-02-31-01
- Version : 7.1, Classification : 27-02-31-01
- Version : 6, Classification : 27-02-31-01
ETIM
- Version : 10, Classification : EC001857
- Version : 9, Classification : EC001857
- Version : 8, Classification : EC001857
- Version : 7, Classification : EC001857
IDEA
- Version : 4, Classification : 4139
UNSPSC
- Version : 15, Classification : 39-12-10-07
Datasheet - PDF
