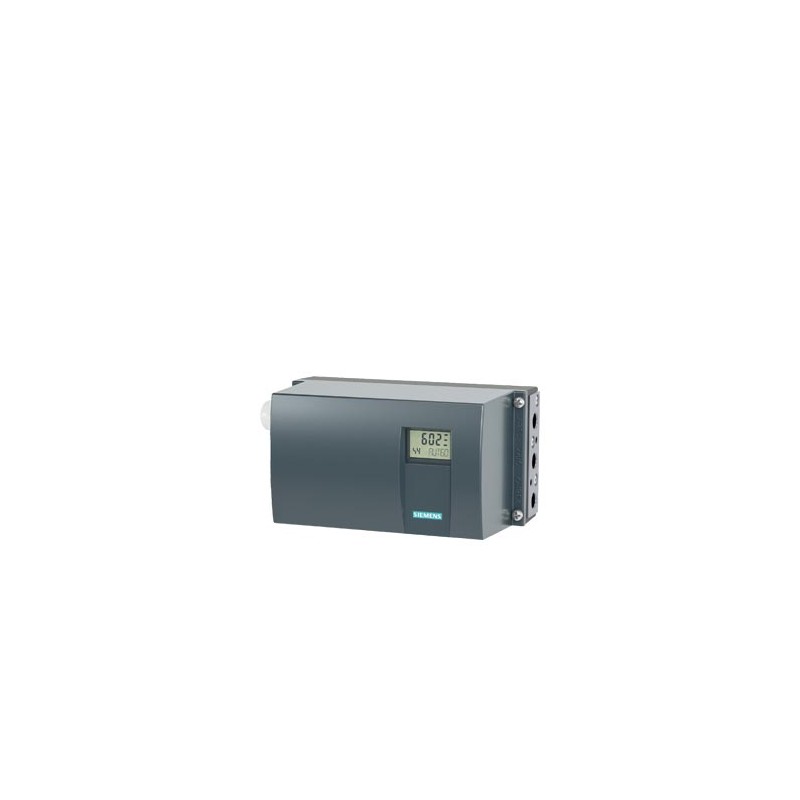

6DR5513-0KM11-0AA0 SIEMENS SIPART PS2 Smart, electropneumatic positioner, PROFIBUS PA, Ex/nEx, single-acting.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

6DR5513-0KM11-0AA0 SIEMENS SIPART PS2 Smart, electropneumatic positioner, PROFIBUS PA, Ex/nEx, single-acting..

6DR5513-0KM11-0AA0

SIEMENS

SIPART PS2 Smart, electropneumatic positioner, PROFIBUS PA, Ex/nEx, single-acting, aluminum enclosure, for pneumatic linear and part-turn actuators. Standard Type of protection (Ex): Intrinsic safety (Ex i), Increased safety (Ex e), Dust ignition protection by enclosure (Ex t). Output isolator SITRANS I200 separately orderable (7NG4131-1AA00). Connection thread el.: M20x1.5 / pneu.: 1/4" NPT Digital I/O Module (DIO), 1 digital input, 3 digital outputs (2 min. or max. limit values, 1 fault indicator). " Analog Output Module (AOM), analog position feedback 4 ... 20 mA. Device plug M12 optionally orderable with -Z D53. Isolating power supply SITRANS I100 separately orderable (7NG4124-1AA00). . Brief instructions English / German / Chinese..

SIPART PS2 Intelligent electro-pneumatic position regulator, PROFIBUS PA, Ex/nEx, single act, aluminum box, for linear pneumatic actuators and fraction turn. Standard Protection Mode (Ex): Intrinsic Safety (Ex i), Enhanced Safety (Ex e), Enclosure Dust Ignition Proof Protection (Ex t). SITRANS I200 Output Isolator, can be ordered separately (7NG4131-1AA00). thread the.: M20x1.5 / pneu.: 1/4" NPT Digital I/O Module (DIO), 1 digital input, 3 digital outputs (2 min. or max. limit values, 1 "fault warnings" output). Analog Output Module (AOM), Analog Position Feedback 4 ... 20 mA. Order option with fixed connector M12 -Z D53. Separately orderable SITRANS I100 insulating power supply (7NG4124-1AA00). . Short instructions English/German/Chinese. Standard / Fail-Safe - Purge actuator in case of auxiliary power failure (single effect only). Without Pressure Gauge Block / Booster.

More details


SENSORS AND COMMUNICATIONS > SIPART Positioners and process controllers

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Product
Article Number (Market Facing Number)6DR5513-0KM11-0AA0
Product DescriptionSIPART PS2 Smart, electropneumatic positioner, PROFIBUS PA, Ex/nEx, single-acting, aluminum enclosure, for pneumatic linear and part-turn actuators. Standard Type of protection (Ex): Intrinsic safety (Ex i), Increased safety (Ex e), Dust ignition protection by enclosure (Ex t). Output isolator SITRANS I200 separately orderable (7NG4131-1AA00). Connection thread el.: M20x1.5 / pneu.: 1/4" NPT Digital I/O Module (DIO), 1 digital input, 3 digital outputs (2 min. or max. limit values, 1 fault indicator). " Analog Output Module (AOM), analog position feedback 4 ... 20 mA. Device plug M12 optionally orderable with -Z D53. Isolating power supply SITRANS I100 separately orderable (7NG4124-1AA00). . Brief instructions English / German / Chinese. Standard / Fail-Safe - Depressurizing the actuator in case of failure of electrical auxiliary power (single acting only). Without Manometer block / Booster.
Product familySIPART PS2
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group8V1 / 8V1
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsECCN : N / AL : N
Estimated dispatch time (Working Days)4 Day/Days
Net Weight (kg)1,600 Kg
Package size unit of measureNot available
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EANNot available
UPCNot available
Commodity Code90328100
LKZ_FDB/ CatalogIDFI01-5
Product Group4759
Group CodeR3P2
Country of originFrance
Compliance with the substance restrictions according to RoHS directiveSince: 31.12.2016
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass1227-22-04-01
eClass1427-22-04-01
eClass7.127-22-04-01
eClass827-22-04-01
eClass927-22-04-01
eClass9.127-22-04-01
UNSPSC1532-15-17-03

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN.pdf 115 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
