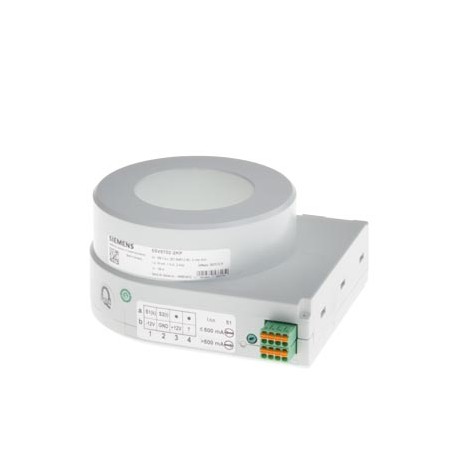

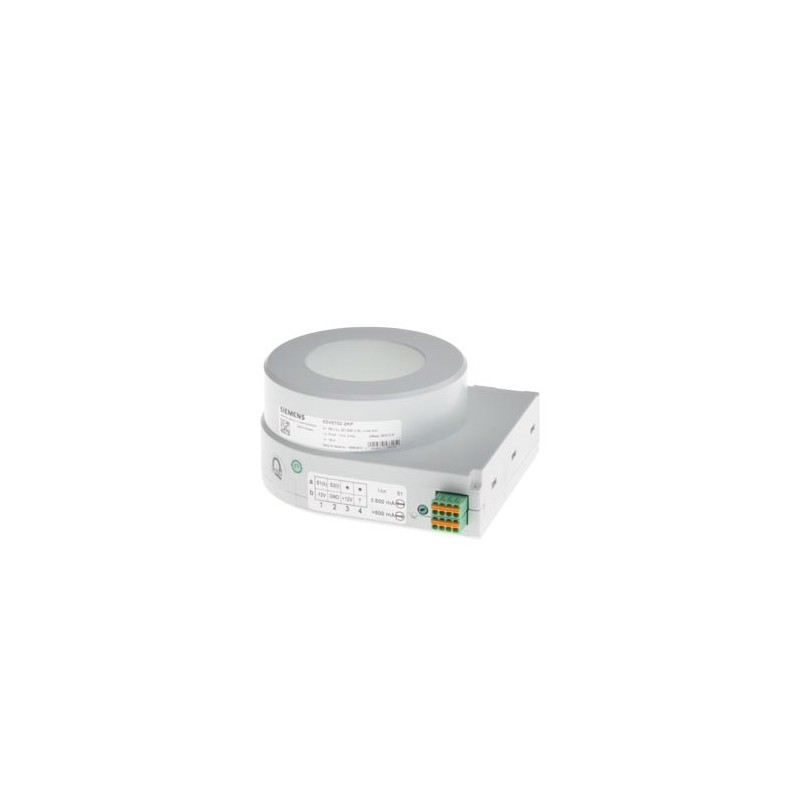

5SV8702-2KK SIEMENS Summation current transformer type B, 60 mm, 30 mA 1A
5SV8702-2KK
SIEMENS
Summation current transformer type B, 60 mm, 30 mA 1A
Relays > Residual current monitoring relay
POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Other Modular Systems
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Related products
▲Best sellers
▲More info
▲Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 5SV8702-2KK | ||||||||||||||||||||||||||||||||||||
| Product Description | Summation current transformer type B, 60 mm, 30 mA 1A | ||||||||||||||||||||||||||||||||||||
| Product family | SENTRON 5SV8 Residual Current Monitors | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 13B / 1BE | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 2 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,783 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 170,00 x 210,00 x 115,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4001869434773 | ||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 90309000 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5509 | ||||||||||||||||||||||||||||||||||||
| Group Code | P310 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.12.2010 | ||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC001445 - Residual current monitoring relay
| Value | Unit | |
|---|---|---|
| Number of contacts as normally open contact (EF008256) | - | |
| Voltage type for actuating (EF008242) | - | |
| Function (EF000030) | - | |
| Rated frequency (EF001663) | - | Hz |
| Number of contacts as change-over contact (EF008257) | - | |
| Number of contacts as normally closed contact (EF008255) | - | |
| With detachable clamps (EF003340) | - | |
| Type of electric connection (EF003961) | Plug-in connection | |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] | V |
| Rated voltage (EF003977) | ['-', '690'] | V |
| Indication of difference current (EF003424) | - | |
| Error registration possible (EF003423) | - | |
| Width (EF000008) | 135.0 | mm |
| Height (EF000040) | 67.0 | mm |
| Depth (EF000049) | 116.4 | mm |
| Response value amperage 1 (EF008204) | - | mA |
| Response value amperage 2 (EF008205) | - | mA |
| Max. permitted delay-on energization time (EF008189) | - | s |
| Min. adjustable delay-on energization time (EF008190) | - | s |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - | V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 5SV8702-2KK 5SV8702-2KK EN_5SV8702-2KK.pdf | 564 Kbytes |
|
