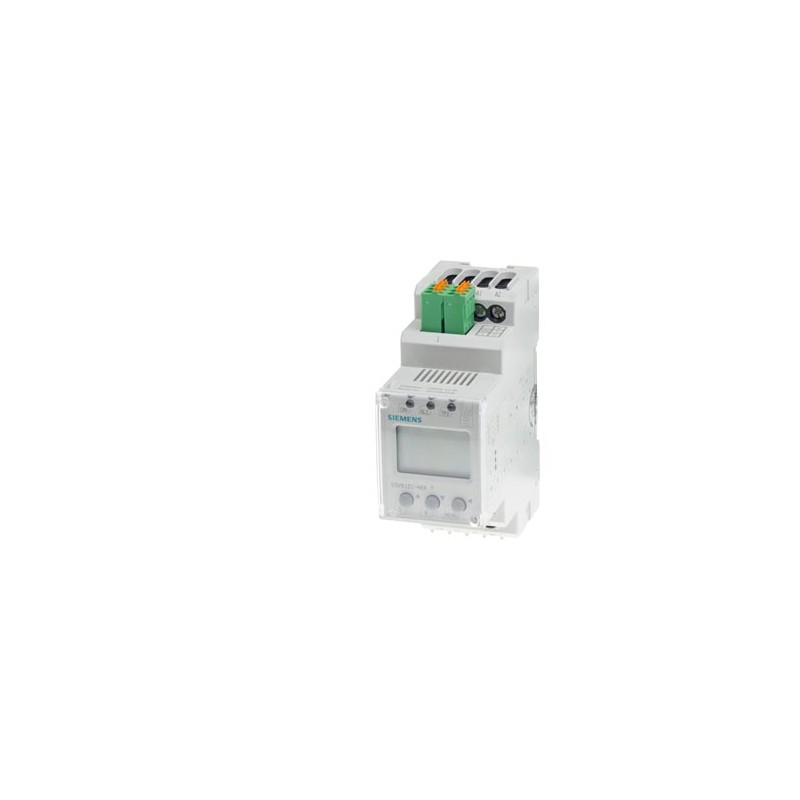

5SV8111-4KK SIEMENS Modular residual current device Type B, 24 V DC,LCD, IDN 30 mA 1A, 0 2000 Hz View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

5SV8111-4KK SIEMENS Modular residual current device Type B, 24 V DC,LCD, IDN 30 mA 1A, 0 2000 Hz

5SV8111-4KK

SIEMENS

Modular residual current device Type B, 24 V DC,LCD, IDN 30 mA 1A, 0 2000 Hz

Ap. differential current mod. Type B, 24VDC,LCD, IDN 30mA 1A, 0 2000 Hz

More details


POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Other Modular Systems

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $1,445.13
Unit price: $1,445.13
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Often bought together

▲

Best sellers

▲

More info

▲


Technical data

Modular residual current device Type B, 24 V DC,LCD, IDN 30 mA 1A, 0 2000 Hz
Model
product brand nameSENTRON
product designationmodular residual current device
design of the productDigital, type B
adjustable response delay time
● initial value0.06 s
● full-scale value10 s
frequency / of the measuring circuit / rated value
● minimum0 Hz
● maximum2 000 Hz
protection class IP / at connection all terminalsIP20
type of connectable summation current transformer5SV8701-2KK, 5SV8701-2KP, 5SV8702-2KK, 5SV8702-2KP, 5SV8703-2KK, 5SV8704-2KK
overvoltage categoryIII
degree of pollution3
type of voltage / of the operating voltage / for actuationDC
operating voltage
● at DC / rated value24 V
● at DC / rated value / minimum19.2 V
● at DC / rated value / maximum28.8 V
protection class IP / on the frontIP30
Dissipation
power loss [V∙A] / maximum6.5 VA
Current
adjustable current response value current / 2
● initial value30 mA
● full-scale value1 A
Auxiliary circuit
number of CO contacts / for auxiliary contacts2
Relay contacts
switching voltage / of relay contacts / rated value250 V
switching current / of relay contacts / rated value5 A
Product function
product function
● residual current displayYes
● error memoryYes
● password protectionYes
Connections
wire length / to the summation current transformer10 m
stripped length8 mm
connectable conductor cross-section / for flexible conductor
● minimum0.2 mm²
● maximum2.5 mm²
connectable conductor cross-section / for rigid conductor
● minimum0.2 mm²
● maximum4 mm²
tightening torque / with screw-type terminals
● minimum0.5 N·m
● maximum0.6 N·m
type of connectable conductor cross-sections / at AWG cables / for supply voltageAWG 24 ... AWG 14
type of electrical connectionscrew-type terminals
Mechanical Design
height85 mm
width36 mm
depth64 mm
fastening methodstandard rail
net weight150 g
material / of the enclosurePC
Environmental conditions
● Ambient temperature / during operation / minimum permissible-25 °C
● ambient temperature / during operation / maximum permissible55 °C
Certificates
reference code
● according to EN 61346-2F
● according to IEC 81346-2F

Downloads and manuals

General Product ApprovalDeclaration of Conformityother

Confirmation

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Miscellaneous

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/3/2022


Additional data

Product
Article Number (Market Facing Number)5SV8111-4KK
Product DescriptionModular residual current device Type B, 24 V DC,LCD, IDN 30 mA 1A, 0 2000 Hz
Product familySENTRON 5SV8 Residual Current Monitors
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group13B / 1BE
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,228 Kg
Packaging Dimension120,00 x 160,00 x 80,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869533117
UPCNot available
Commodity Code90303370
LKZ_FDB/ CatalogIDLV10
Product Group5509
Group CodeP310
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 06.02.2017
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-18-09
eClass7.127-37-18-09
eClass827-37-18-09
eClass927-37-18-09
eClass9.127-37-18-09
ETIM5EC001445
ETIM6EC001445
ETIM7EC001445
ETIM8EC001445
IDEA44727
UNSPSC1539-12-15-21

ETIM data

ETIM: EC001445 - Residual current monitoring relay

Value Unit
Rated frequency (EF001663) -Hz
With detachable clamps (EF003340) -
Voltage type for actuating (EF008242) -
Number of contacts as normally closed contact (EF008255) -
Number of contacts as normally open contact (EF008256) -
Function (EF000030) -
Number of contacts as change-over contact (EF008257) -
Type of electric connection (EF003961) Screw connection
Rated control supply voltage Us at DC (EF003980) ['9.6', '94']V
Rated voltage (EF003977) ['-', '-']V
Response value amperage 2 (EF008205) ['30.0', '1000.0']mA
Indication of difference current (EF003424) true
Error registration possible (EF003423) true
Width (EF000008) 36.0mm
Height (EF000040) 85.0mm
Depth (EF000049) 64.0mm
Response value amperage 1 (EF008204) -mA
Max. permitted delay-on energization time (EF008189) -s
Min. adjustable delay-on energization time (EF008190) -s
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V
