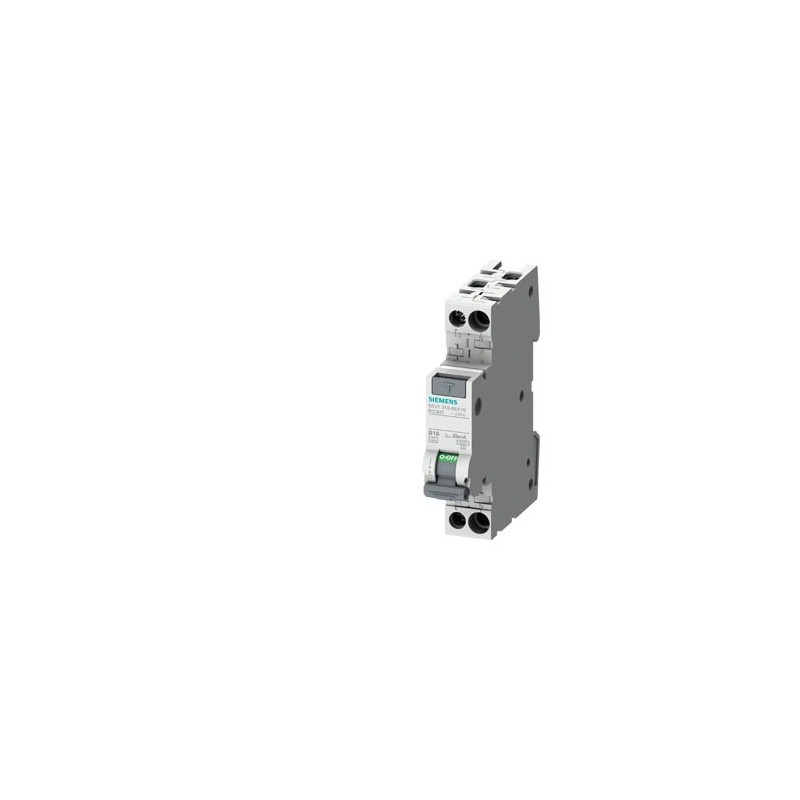

5SV1316-7KK02 SIEMENS RCBO compact 1P+N 6 kA type A 30 mA C2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

5SV1316-7KK02 SIEMENS RCBO compact 1P+N 6 kA type A 30 mA C2

5SV1316-7KK02

SIEMENS

RCBO compact 1P+N 6 kA type A 30 mA C2

Compact FI/LS 1P+N 6kA type A 30 mA C2. Cancelations and returns limited. Consult conditions.

More details


POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Tertiary differential switches up to 80 A

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $246.45
Unit price: $246.45
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

RCBO compact 1P+N 6 kA type A 30 mA C2
Model
product brand nameSENTRON
product designationRCBO
design of the productInstantaneous
General technical data
number of poles2
number of poles / with protection1
tripping characteristic classC
overvoltage categoryIII
degree of pollution2
Voltage
type of voltage / of the operating voltageAC
insulation voltage (Ui) / rated value253 V
surge voltage resistance / rated value4 000 V
surge current resistance / at (8/20) µs1 kA
Supply voltage
supply voltage
● at AC / rated value230 V
● for testing equipment / minimum195 V
operating frequency50 Hz
supply voltage frequency / rated value50 Hz
Protection class
protection class IPIP20, if the distribution board is installed, with connected conductors
Switching capacity
breaking capacity short-circuit current (Icn) / according to EN 61009-1 / rated value6 kA
switching capacity current
● according to EN 60898 / rated value6 kA
● according to IEC 60947-2 / rated value10 kA
rated residual switching capacity (IΔm) / according to IEC 61009-14.5 kA
energy limitation class3
Dissipation
power loss [W]
● for rated value of the current / at AC / in hot operating state / per pole0.65 W
● maximum1.3 W
Current
tripping fault current / rated value30 mA
operational current
● at 30 °C / rated value2 A
● at 40 °C / rated value1.9 A
● at 45 °C / rated value1.86 A
● at 50 °C / rated value1.8 A
● at 55 °C / rated value1.76 A
● at 60 °C / rated value1.7 A
● at 65 °C / rated value1.66 A
● at 70 °C / rated value1.6 A
● at AC / rated value2 A
residual current typeA
Product details
product component / neutral conductor switchingYes
product feature / touch protectionYes
product feature
● halogen-freeYes
● silicon-freeYes
Connections
connectable conductor cross-section / solid
● minimum0.75 mm²
● maximum16 mm²
connectable conductor cross-section / stranded
● minimum0.75 mm²
● maximum16 mm²
connectable conductor cross-section / finely stranded / with core end processing
● minimum0.75 mm²
● maximum10 mm²
tightening torque / with screw-type terminals
● minimum1.2 N·m
● maximum2 N·m
position / of power supply cordEither top or bottom
Mechanical Design
height90 mm
width18 mm
depth77 mm
installation depth70 mm
number of modular width units1
mounting positionany
net weight117 g
weight / with packaging133 g
Environmental conditions
influence of the surrounding temperatureMax. 95% humidity
ambient temperature / during operation
● minimum-25 °C
● maximum45 °C
ambient temperature / during storage
● minimum-40 °C
● maximum75 °C
number of test cycles / for environmental testing / according to IEC 60068-2-3028
Certificates
reference code
● according to EN 61346-2F
● according to IEC 81346-2F

Downloads and manuals

General Product ApprovalDeclaration of ConformityTest Certificates

Confirmation

VDE

EAC

EC/EU-Declaration of Conformity

Special Test Certificate

Miscellaneous

otherDangerous Good

Confirmation

Miscellaneous

Miscellaneous

Transport Information

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/3/2022


Additional data

Product
Article Number (Market Facing Number)5SV1316-7KK02
Product DescriptionRCBO compact 1P+N 6 kA type A 30 mA C2
Product familyRCBOs
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group13F / 1BC
Surcharge for Raw MaterialsNone
Metal FactorLOA-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works15 Day/Days
Net Weight (kg)0,132 Kg
Packaging Dimension21,00 x 93,00 x 83,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869557847
UPCNot available
Commodity Code85362010
LKZ_FDB/ CatalogIDLV10
Product Group5516
Group CodeP310
Country of originRomania
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2018
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-14-22-07
eClass7.127-14-22-07
eClass827-14-22-07
eClass927-14-22-07
eClass9.127-14-22-07
ETIM5EC000905
ETIM6EC000905
ETIM7EC000905
ETIM8EC000905
UNSPSC1539-12-16-03
