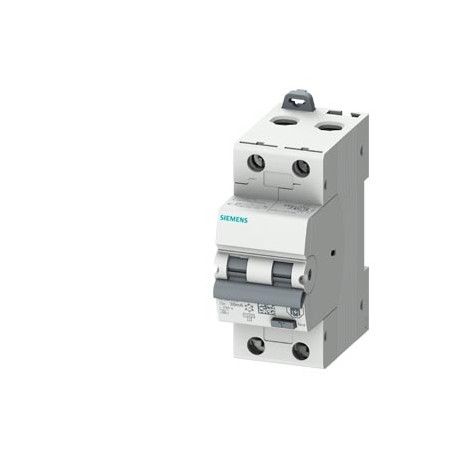

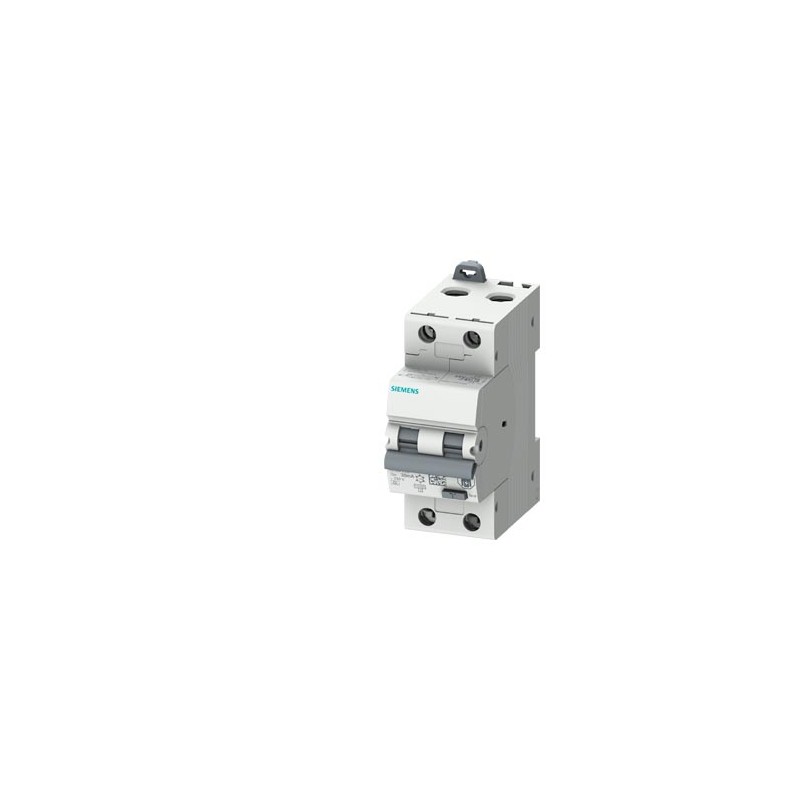

5SU1324-6FP06 SIEMENS RCBO, 10 kA, 2P Type A, 30 mA, B-Char, In: 06A Un: 230V View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

5SU1324-6FP06 SIEMENS RCBO, 10 kA, 2P Type A, 30 mA, B-Char, In: 06A Un: 230V

5SU1324-6FP06

SIEMENS

RCBO, 10 kA, 2P Type A, 30 mA, B-Char, In: 06A Un: 230V

RCBO, 10 kA, 2P Type A, 30 mA, B-Char, In: 06A A: 230V. Cancelations and returns limited. Consult conditions.

More details


POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Tertiary differential switches up to 80 A

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $381.56
Unit price: $381.56
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

RCBO, 10 kA, 2P Type A, 30 mA, B-Char, In: 06A Un: 230V
Model
product brand nameSENTRON
product designationRCBO
design of the productInstantaneous
General technical data
number of poles2
number of poles / with protection2
tripping characteristic classB
mechanical service life (switching cycles) / typical10 000
overvoltage categoryIII
degree of pollution3
Voltage
type of voltage / of the operating voltageAC
insulation voltage (Ui) / rated value500 V
surge voltage resistance / rated value4 000 V
surge current resistance / at (8/20) µs0.25 kA
Supply voltage
supply voltage
● at AC / rated value230/240 V
● for testing equipment / minimum195 V
operating frequency50 Hz
supply voltage frequency / rated value50 Hz
Protection class
protection class IPIP20, if the distribution board is installed, with connected conductors
Switching capacity
breaking capacity short-circuit current (Icn) / according to EN 61009-1 / rated value10 kA
switching capacity current
● according to EN 60898 / rated value10 kA
● according to IEC 60947-2 / rated value15 kA
rated residual switching capacity (IΔm) / according to IEC 61009-14.5 kA
energy limitation class3
Dissipation
power loss [W]
● for rated value of the current / at AC / in hot operating state / per pole0.53 W
● maximum1.1 W
Current
tripping fault current / rated value30 mA
operational current
● at 30 °C / rated value6 A
● at 40 °C / rated value5.7 A
● at 45 °C / rated value5.5 A
● at 50 °C / rated value5.3 A
● at 55 °C / rated value5.1 A
● at 60 °C / rated value5 A
● at AC / rated value6 A
residual current typeA
Product details
product component / neutral conductor switchingYes
product feature / touch protectionYes
product feature
● halogen-freeNo
Connections
connectable conductor cross-section / solid
● maximum35 mm²
connectable conductor cross-section / stranded
● maximum35 mm²
connectable conductor cross-section / finely stranded / with core end processing
● maximum35 mm²
tightening torque / with screw-type terminals
● minimum2 N·m
● maximum2 N·m
position / of power supply cordEither top or bottom
Mechanical Design
height85 mm
width36 mm
depth72 mm
installation depth70 mm
number of modular width units2
mounting positionAny
net weight224 g
weight / with packaging249 g
Environmental conditions
influence of the surrounding temperatureMax. 95% humidity
ambient temperature / during operation
● minimum-25 °C
● maximum40 °C
ambient temperature / during storage
● minimum-40 °C
● maximum70 °C
number of test cycles / for environmental testing / according to IEC 60068-2-3028
Certificates
reference code
● according to EN 61346-2F
● according to IEC 81346-2F

Downloads and manuals

General Product ApprovalDeclaration of Conformityother

Confirmation

Miscellaneous

EAC

EC/EU-Declaration of Conformity

Miscellaneous

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/15/2022


Additional data

Product
Article Number (Market Facing Number)5SU1324-6FP06
Product DescriptionRCBO, 10 kA, 2P Type A, 30 mA, B-Char, In: 06A Un: 230V
Product familyRCBOs
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group13F / 1BC
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works40 Day/Days
Net Weight (kg)0,236 Kg
Packaging Dimension40,00 x 96,00 x 82,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869561806
UPCNot available
Commodity Code85362010
LKZ_FDB/ CatalogIDLV10
Product Group5532
Group CodeP310
Country of originPortugal
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2017
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-14-22-07
eClass7.127-14-22-07
eClass827-14-22-07
eClass927-14-22-07
eClass9.127-14-22-07
ETIM5EC000905
ETIM6EC000905
ETIM7EC000905
ETIM8EC000905
UNSPSC1539-12-16-03
