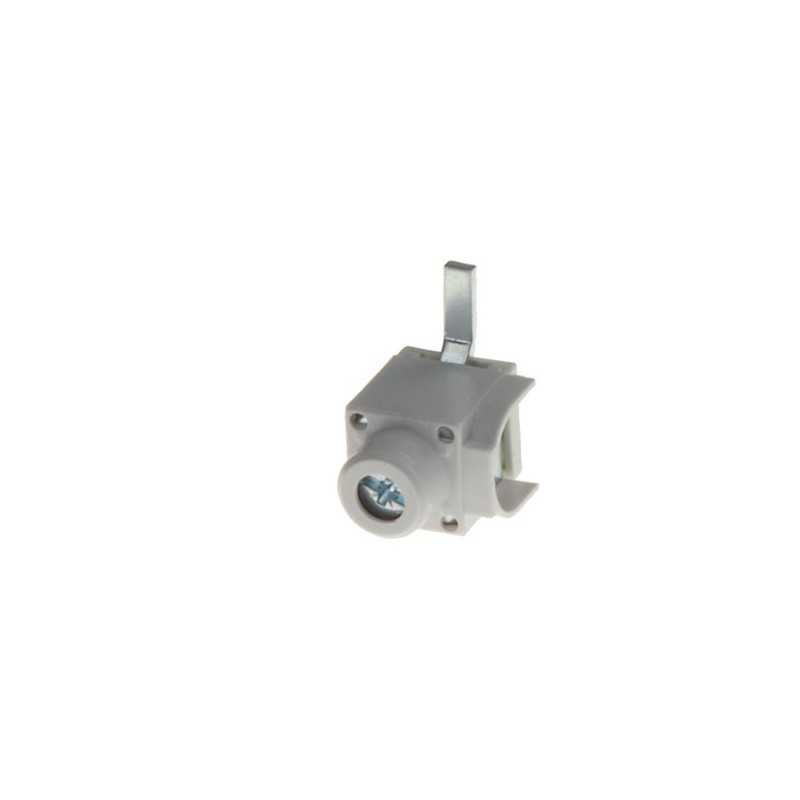

5ST3768-5 SIEMENS Connection terminal Cable entry right 690V AC, 1000 V DC, 80 A IP20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

5ST3768-5 SIEMENS Connection terminal Cable entry right 690V AC, 1000 V DC, 80 A IP20

5ST3768-5

SIEMENS

10

Connection terminal Cable entry right 690V AC, 1000 V DC, 80 A IP20

CABLE TERMINAL 25MM2 ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 10 Units ** ). Cancelations and returns limited. Consult conditions.

More details


Energy distribution systems > Accessories/spare parts for busbars

POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Other Modular Systems

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $105.47
Unit price: $10.55

Quantity Price
10+$10.55
20+$8.97
30+$8.33
40+$8.17
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Technical data

Connection terminal Cable entry right 690V AC, 1000 V DC, 80 A IP20
Model
product brand nameSENTRON
product designationBusbar systems
design of the productAccessories
Supply voltage
operating voltage / at AC / rated value690 V
operational current / at AC / rated value80 A
Accessories
accessoriesconnection terminal
Connections
tightening torque
● minimum1 N·m
● maximum2 N·m
type of connectable conductor cross-sections / for copper conductor / stranded6 - 25 mm²
Mechanical Design
height17.7 mm
width17.5 mm
depth13 mm
length26.5 mm
net weight13.5 g

Downloads and manuals

General Product ApprovalDeclaration of Conformityother

Confirmation

Miscellaneous

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/14/2022


Additional data

Product
Article Number (Market Facing Number)5ST3768-5
Product DescriptionConnection terminal Cable entry right 690V AC, 1000 V DC, 80 A IP20
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12E / 1AD
Surcharge for Raw MaterialsNone
Metal Factor--3-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works3 Day/Days
Net Weight (kg)0,014 Kg
Packaging Dimension85,00 x 100,00 x 55,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Minimum order quantity10
Additional Product Information
EAN4001869529196
UPCNot available
Commodity Code85369010
LKZ_FDB/ CatalogIDLV10
Product Group5506
Group CodeP310
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2007
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-14-11-90
eClass7.127-14-11-90
eClass827-14-11-90
eClass927-14-11-90
eClass9.127-14-11-90
ETIM5EC002270
ETIM6EC002270
ETIM7EC002270
ETIM8EC002270
UNSPSC1539-13-17-02

ETIM data

ETIM: EC002270 - Accessories/spare parts for busbars

Value Unit
Type of accessory/spare part (EF000215) Other
