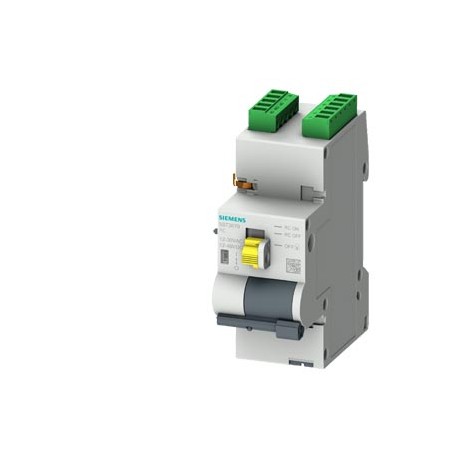

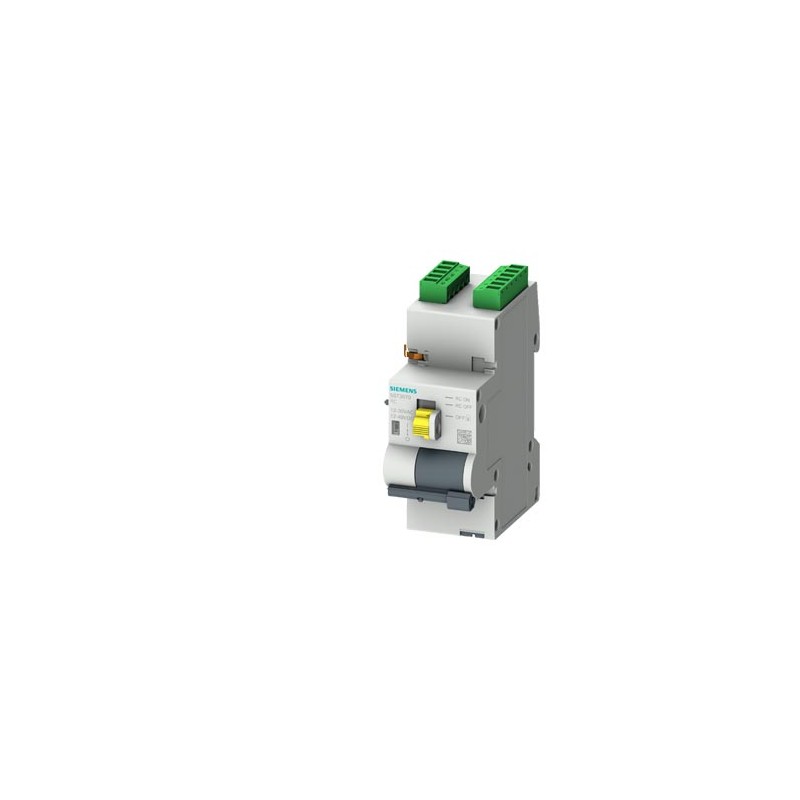

5ST3070 SIEMENS Remote operating mechanism power ext. req. For CB, residual current circuit breaker RC block.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

5ST3070 SIEMENS Remote operating mechanism power ext. req. For CB, residual current circuit breaker RC block..

5ST3070

SIEMENS

Remote operating mechanism power ext. req. For CB, residual current circuit breaker RC blocks, RCBO

Remote drive Power Req. ampl. for LS, differential switch differential blocks, FI/LS switch. Cancelations and returns limited. Consult conditions.

More details


POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Other Modular Systems

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $1,018.06
Unit price: $1,018.06
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Remote operating mechanism power ext. req. For CB, residual current circuit breaker RC blocks, RCBO
Model
product brand nameSENTRON
product designationRemote controlled mechanism Power extended
display version / LEDYes
design of the productMountable
design of the product / factory mountedNo
electrical endurance (switching cycles) / typical10 000
Supply voltage
operating voltage
● rated value24 V
● at AC / rated value / minimum12 V
● at AC / rated value / maximum30 V
● at DC / rated value / minimum12 V
● at DC / rated value / maximum48 V
operating frequency50/60 Hz
protection class IPIP20
Dissipation
power loss [V∙A] / during standby1 W
Control current
type of voltage / of control voltageAC/DC
Product details
product feature / interlockYes
product component
● fault signal contactYes
● auxiliary switchYes
number of fault signal contacts1
number of NC contacts0
number of NO contacts0
number of CO contacts1
design of the auxiliary switch1 CO, 2 A, 250 V AC
product extension / can be mountedUniversal
product extensionRemote controlled mechanism, extended
type of fault signal contact1 CO, 5 A, 250 V AC
number of remote reset / per minute2
Connections
wire length / in the control circuit1 500 m
connectable conductor cross-section
● minimum0.5 mm²
● maximum1.5 mm²
tightening torque / with screw-type terminals
● minimum0.2 N·m
● maximum0 N·m
type of connectable conductor cross-sections / at AWG cables14 ... 30
Mechanical Design
height90 mm
width36 mm
depth70 mm
number of modular width units2
net weight188 g
Environmental conditions
ambient temperature / during operation
● minimum-40 °C
● maximum70 °C
ambient temperature / during storage
● minimum permissible-40 °C
● maximum permissible70 °C

Downloads and manuals

General Product ApprovalDeclaration of Conformityother

Confirmation

Miscellaneous

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Miscellaneous

RailwayDangerous Good

Confirmation

Vibration and Shock

Transport Information

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/5/2022


Additional data

Product
Article Number (Market Facing Number)5ST3070
Product DescriptionRemote operating mechanism power ext. req. For CB, residual current circuit breaker RC blocks, RCBO
Product familyAdditional Components
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12E / 1AD
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)0,229 Kg
Packaging Dimension112,00 x 112,00 x 90,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869535623
UPCNot available
Commodity Code85389099
LKZ_FDB/ CatalogIDLV10
Product Group5506
Group CodeP310
Country of originChina
Compliance with the substance restrictions according to RoHS directiveSince: 01.02.2017
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-14-35-02
eClass7.127-14-35-02
eClass827-14-35-02
eClass927-14-35-02
eClass9.127-14-35-02
ETIM5EC001286
ETIM6EC001286
ETIM7EC001286
ETIM8EC001286

ETIM data

ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology

Value Unit
Type of accessory/spare part (EF000215) -



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
5ST3070 5ST3070 EN_5ST3070.pdf 575 Kbytes 5ST3070 5ST3070 EN_5ST3070.pdf
