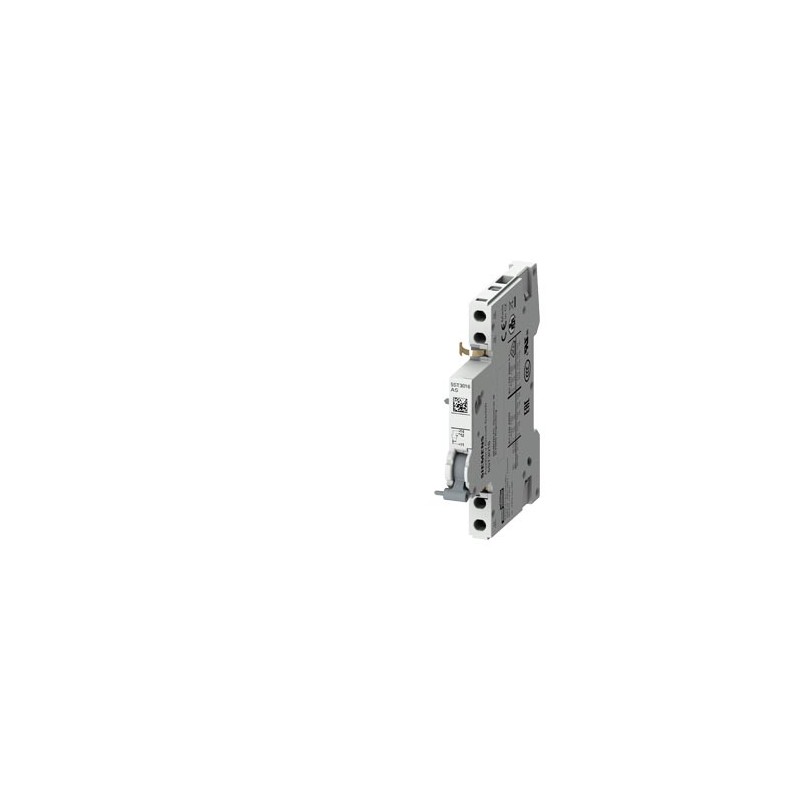

5ST3016 SIEMENS Auxiliary current switch 1 CO For MCB 5SL, 5SY, 5SP Incorporated switch 5TL1 RCBO 5SU1, RC 5.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

5ST3016 SIEMENS Auxiliary current switch 1 CO For MCB 5SL, 5SY, 5SP Incorporated switch 5TL1 RCBO 5SU1, RC 5..

5ST3016

SIEMENS

Auxiliary current switch 1 CO For MCB 5SL, 5SY, 5SP Incorporated switch 5TL1 RCBO 5SU1, RC 5SV

More details


POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Other Modular Systems

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $81.68
Unit price: $81.68
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Auxiliary current switch 1 CO For MCB 5SL, 5SY, 5SP Incorporated switch 5TL1 RCBO 5SU1, RC 5SV
Model
product brand nameSENTRON
product designationAuxiliary current switch
design of the productMountable
design of the product / factory mountedNo
electrical endurance (switching cycles) / typical10 000
Voltage
insulation voltage / rated value440 V
surge voltage resistance / rated value4 kV
Supply voltage
supply voltage / at DC / rated value
● minimum5 V
operating voltage
● rated value30 V
● at DC / rated value / minimum5 V
operating frequency50/60 Hz
protection class IPIP20
Control current
type of voltage / of control voltageAC/DC
Product details
product component
● auxiliary switchYes
number of fault signal contacts0
number of NC contacts0
number of NO contacts0
number of CO contacts1
product extension / can be mountedUniversal
product extensionauxiliary switch
product function / test function for fault current tripNo
Connections
connectable conductor cross-section
● minimum0.5 mm²
● maximum2.5 mm²
tightening torque / with screw-type terminals
● maximum1 N·m
type of connectable conductor cross-sections / at AWG cables24 ... 12
Mechanical Design
height90 mm
width9 mm
depth70 mm
number of modular width units0.5
net weight51 g
Environmental conditions
standardIEC/EN60947-5-1; IEC/EN62019
ambient temperature / during operation
● minimum-25 °C
● maximum55 °C
ambient temperature / during storage
● minimum permissible-40 °C
● maximum permissible75 °C

Downloads and manuals

General Product Approval

CCC

Confirmation

UR

VDE

Miscellaneous

EAC

Declaration of ConformityMarine / ShippingotherRailway

EC/EU-Declaration of Conformity

UK Declaration of Conformity

DNV / Det Norske Veritas

LR (Lloyds Register)

Miscellaneous

Confirmation

Railway

Vibration and Shock

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/15/2022


Additional data

Product
Article Number (Market Facing Number)5ST3016
Product DescriptionAuxiliary current switch 1 CO For MCB 5SL, 5SY, 5SP Incorporated switch 5TL1 RCBO 5SU1, RC 5SV
Product familyAdditional Components
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group11E / 1AD
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works55 Day/Days
Net Weight (kg)0,051 Kg
Packaging Dimension79,00 x 92,00 x 19,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869552613
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDLV10
Product Group5506
Group CodeP310
Country of originIndia
Compliance with the substance restrictions according to RoHS directiveSince: 01.01.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-14-35-02
eClass7.127-14-35-02
eClass827-14-35-02
eClass927-14-35-02
eClass9.127-14-35-02
ETIM5EC001286
ETIM6EC001286
ETIM7EC001286
ETIM8EC001286
UNSPSC1539-12-15-22
