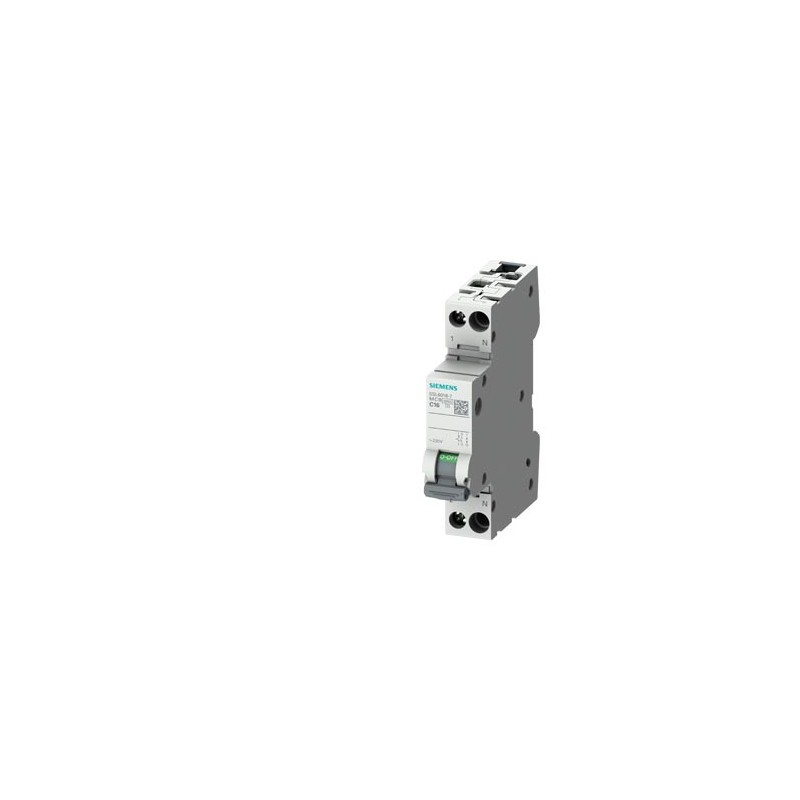

5SL6002-7 SIEMENS CIRCUIT BREAKER 230V 6KA, 1+N-POLE/1MW C2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

5SL6002-7 SIEMENS CIRCUIT BREAKER 230V 6KA, 1+N-POLE/1MW C2

5SL6002-7

SIEMENS

CIRCUIT BREAKER 230V 6KA, 1+N-POLE/1MW C2

Automatic circuit breaker 230 V 6 kA, 1+N poles/1 mód. C2. Cancelations and returns limited. Consult conditions.

More details


POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Tertiary circuit breakers from 6 kA

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $63.79
Unit price: $63.79
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

CIRCUIT BREAKER 230V 6KA, 1+N-POLE/1MW C2
Model
product brand nameSENTRON
product designationMiniature circuit breaker
design of the productMiniature circuit breaker compact
General technical data
design of pole1P+N
tripping characteristic classC
mechanical service life (switching cycles) / typical4 000
overvoltage categoryIII
degree of pollution2
Voltage
type of voltage / of the operating voltageAC
insulation voltage (Ui) / at AC / rated value250 V
Supply voltage
supply voltage
● at AC / rated value230 V
value range / of the supply voltage frequency50/60 Hz
operating voltage
● minimum24 V
● with single-phase operation / at AC / maximum250 V
Protection class
protection class IPIP20, with connected conductors
Switching capacity
switching capacity current
● according to EN 60898 / rated value6 kA
energy limitation class3
Dissipation
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole1.3 W
Current
operational current
● at 30 °C / rated value2 A
● at 40 °C / rated value1.92 A
● at 45 °C / rated value1.88 A
● at 50 °C / rated value1.84 A
● at 55 °C / rated value1.79 A
● at 60 °C / rated value1.75 A
● at AC / rated value2 A
Suitability
suitability for operationResidential buildings/infrastructure
Product details
product component / neutral conductor switchingYes
product feature / touch protectionYes
product component
● combined terminal topNo
● combined terminal bottomNo
product feature
● properties for main switches in accordance with EN 60204-1No
● halogen-freeYes
● sealableYes
● silicon-freeYes
product extension / installable / supplementary devicesYes
Connections
connectable conductor cross-section / solid
● minimum0.75 mm²
● maximum16 mm²
connectable conductor cross-section / stranded
● minimum0.75 mm²
● maximum16 mm²
connectable conductor cross-section / finely stranded / with core end processing
● minimum0.75 mm²
● maximum10 mm²
tightening torque [lbf·in] / with screw-type terminals
● minimum17.7 lbf·in
● maximum22.1 lbf·in
tightening torque / with screw-type terminals
● minimum2 N·m
● maximum2.5 N·m
position / of power supply cordAny
Mechanical Design
height90 mm
width18 mm
depth76 mm
installation depth70 mm
number of modular width units1
fastening methodstandard rail
mounting positionany
net weight113.2 g
Environmental conditions
vibration resistance / according to IEC 60068-2-6Yes
ambient temperature / during operation
● minimum-25 °C
● maximum60 °C
ambient temperature / during storage
● minimum-40 °C
● maximum75 °C
number of test cycles / for environmental testing / according to IEC 60068-2-306
Certificates
reference code
● according to EN 61346-2F
● according to IEC 81346-2F

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CCC

Confirmation

IMQ

VDE

EAC

UK Declaration of Conformity

Declaration of ConformityMarine / Shippingother

EC/EU-Declaration of Conformity

DNV-GL

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/12/2022


Additional data

Product
Article Number (Market Facing Number)5SL6002-7
Product DescriptionCIRCUIT BREAKER 230V 6KA, 1+N-POLE/1MW C2
Product familyBasic Devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12B / 1AC
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works50 Day/Days
Net Weight (kg)0,121 Kg
Packaging Dimension21,00 x 93,00 x 83,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869533889
UPCNot available
Commodity Code85362010
LKZ_FDB/ CatalogIDLV10
Product Group5503
Group CodeP310
Country of originRomania
Compliance with the substance restrictions according to RoHS directiveSince: 01.01.2017
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-14-19-01
eClass7.127-14-19-01
eClass827-14-19-01
eClass927-14-19-01
eClass9.127-14-19-01
ETIM5EC000042
ETIM6EC000042
ETIM7EC000042
ETIM8EC000042
UNSPSC1539-12-16-03
