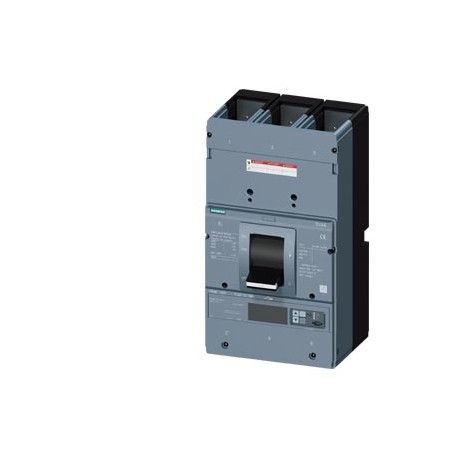

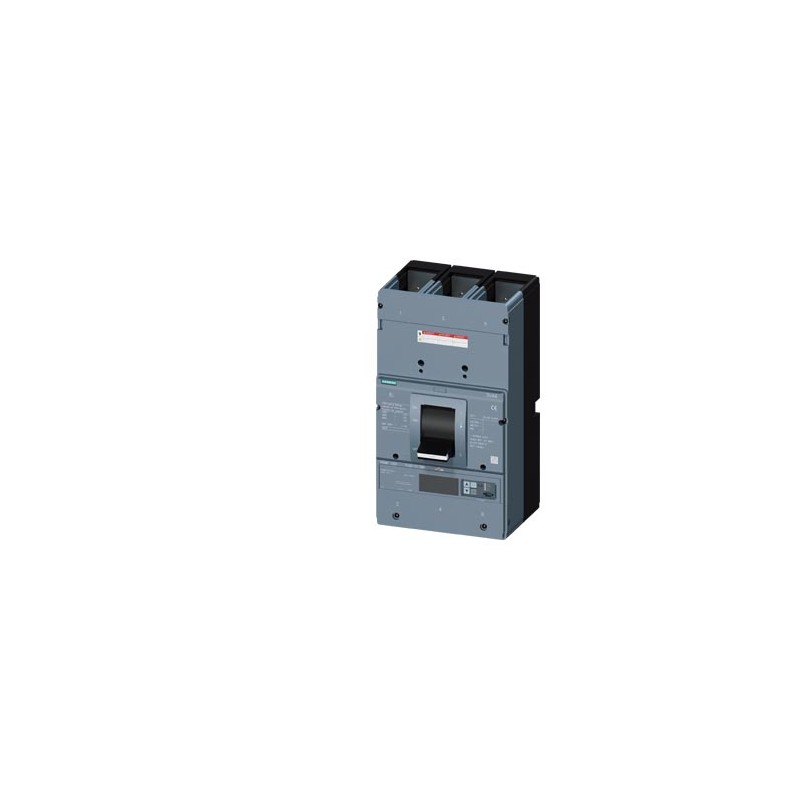

3VA6710-7KT31-0AA0 SIEMENS circuit breaker 3VA6 UL frame 1200 breaking capacity class C 100kA @ 480 V 3-pole.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3VA6710-7KT31-0AA0 SIEMENS circuit breaker 3VA6 UL frame 1200 breaking capacity class C 100kA @ 480 V 3-pole..

3VA6710-7KT31-0AA0

SIEMENS

circuit breaker 3VA6 UL frame 1200 breaking capacity class C 100kA @ 480 V 3-pole, line protection ETU856, LSI, In=1000A overload protection Ir=400A - 1000A short circuit protection Isd=0,6-10x In, Ii=1,5-12x In w/o connection

circuit breaker 3VA6 UL Frame 1200 cut-off power class C 100 kA to 480 V three-pole, cable protection ETU856, LSI, In=1000 A overload protection Ir=400 A - 1000 A short-circuit protection Isd=0.6-10x In, Ii=1.5-12x In offline. Made to order with no possibility of return or cancellation.

More details


POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Moulded Case Circuit Breakers 3VA SENTRON

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $12,978.98
Unit price: $12,978.98
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Product
Article Number (Market Facing Number)3VA6710-7KT31-0AA0
Product Descriptioncircuit breaker 3VA6 UL frame 1200 breaking capacity class C 100kA @ 480 V 3-pole, line protection ETU856, LSI, In=1000A overload protection Ir=400A - 1000A short circuit protection Isd=0,6-10x In, Ii=1,5-12x In w/o connection
Product family3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12P / 53H
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works30 Day/Days
Net Weight (kg)3,133 Kg
Packaging Dimension333,00 x 172,00 x 52,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869604367
UPCNot available
Commodity Code85362090
LKZ_FDB/ CatalogIDLV10
Product Group5383
Group CodeP360
Country of originMexico
Compliance with the substance restrictions according to RoHS directiveSince: 09.07.2019
Product classC: products manufactured / produced to order, which cannot be reused or re-utilized or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Silicic acid, lead salt

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass1227-37-04-09
eClass1427-37-04-09
eClass627-37-04-09
eClass7.127-37-04-09
eClass827-37-04-09
eClass927-37-04-09
eClass9.127-37-04-09
ETIM10EC000228
ETIM7EC000228
ETIM8EC000228
ETIM9EC000228
IDEA44850
UNSPSC1539-12-16-01

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3VA6710-7KT31-0AA0 EN_3VA6710-7KT31-0AA0.pdf 808 Kbytes 3VA6710-7KT31-0AA0 EN_3VA6710-7KT31-0AA0.pdf
