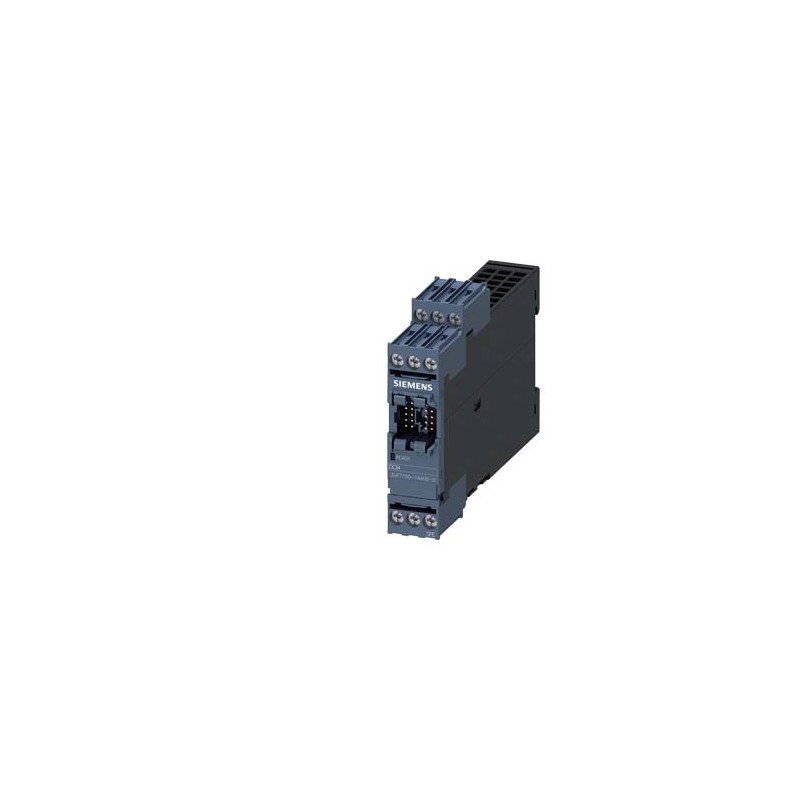

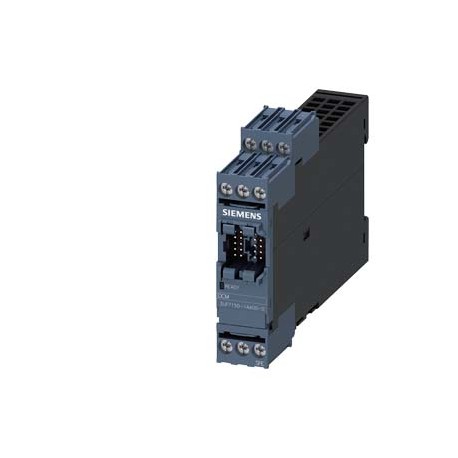

3UF7150-1AA00-0 SIEMENS Decoupling module for installation upstream of the current/voltage measuring module .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3UF7150-1AA00-0 SIEMENS Decoupling module for installation upstream of the current/voltage measuring module ..

3UF7150-1AA00-0

SIEMENS

Decoupling module for installation upstream of the current/voltage measuring module at the system interface for application in ungrounded supply systems

More details


CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC002572 - Motor management device

Value Unit
Switching function (EF000189) -
Degree of protection (NEMA) (EF011959) -
Type of interface (EF006977) -
Number of analogue outputs (EF001995) -
Number of analogue inputs (EF001994) -
Rated voltage Ue at AC 50 Hz (EF007029) ['-', '-']V
Rated voltage Ue at AC 60 Hz (EF007030) ['-', '-']V
Rated voltage Ue at DC (EF007031) ['-', '-']V
Current detection module (EF007501) false
Voltage detection module (EF007492) false
Type of connection system (EF008220) None
Rated control supply voltage Us at DC (EF003980) ['-', '-']V
Voltage type for actuating (EF008242) AC
Number of outputs, with contact (EF006936) 0
Number of electronic outputs (EF006929) -
Number of binary inputs (EF003817) -
Input for thermistor connection (EF007116) false
Input for earth fault detection (EF007115) -
Input for analogue temperature sensor (EF007114) -
Type of electrical connection for auxiliary- and control current circuit (EF006979) Screw connection
Degree of protection (IP) (EF005474) IP20
Rated operation frequency (EF007024) -Hz
Rated operation current Ie (EF006781) -A
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V


Decoupling module for installation upstream of the current/voltage measuring module at the system interface for application in ungrounded supply systems
Product brand nameSIRIUS
Product designationDecoupling module
General technical data
Product component
● input for thermistor connectionNo
Insulation voltage
● for wires of main circuit acc. to IEC 60947-1 rated value6 kV
Surge voltage resistance rated value4 000 V
Protection class IPIP20
Vibration resistance1-6 Hz / 15 mm; 6-500 Hz / 2 g
Reference code acc. to DIN EN 81346-2Q
Electromagnetic compatibility
EMC emitted interference
● acc. to IEC 60947-1class A
EMI immunity acc. to IEC 60947-1corresponds to degree of severity 3
Conducted interference
● due to burst acc. to IEC 61000-4-41 kV
● due to conductor-earth surge acc. to IEC 61000-4-52 kV
● due to conductor-conductor surge acc. to IEC 61000-4-51 kV
Field-bound parasitic coupling acc. to IEC 61000-4-310 V/m
Inputs/ Outputs
Number of outputs as contact-affected switching element0
Protective and monitoring functions
Product function
● voltage detectionNo
Product function
● Current detectionNo
Installation/ mounting/ dimensions
Mounting positionany
Mounting typescrew and snap-on mounting
Height92 mm
Width22.5 mm
Depth124 mm
Connections/ Terminals
Type of electrical connection
● for auxiliary and control current circuitscrew-type terminals
Ambient conditions
Installation altitude at height above sea level
● 3 maximum4 000 m
Ambient temperature
● during operation-25 ... +60 °C
Environmental category
● during operation acc. to IEC 607213K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
● during storage acc. to IEC 607211K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4
● during transport acc. to IEC 607212K2, 2C1, 2S1, 2M2
Relative humidity
● during operation5 ... 95 %
Safety related data
Safety Integrity Level (SIL) acc. to IEC 615081
Certificates/ approvals
General Product ApprovalEMCFor use in hazardous locationsDeclaration of Conformity

UL

EAC

RCM

ATEX-EC-Type-Examination-Certificate

EC/EU-Declaration of Conformity

Miscellaneous

Test CertificatesMarine / Shippingother

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

RMRS / Russian Maritime Register

DNV-GL

Confirmation

PROFINET-Certification

other

PROFIBUS-Certification

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Test report No. A0258, protective separation
last modified:07/20/2020


Product
Article Number (Market Facing Number)3UF7150-1AA00-0
Product DescriptionDecoupling module for installation upstream of the current/voltage measuring module at the system interface for application in ungrounded supply systems
Product familyNot available
Product Lifecycle (PLM)PM490:Start of final year of support
PLM Effective DateProduct discontinued since: 01.07.2020
Notes
Product was deleted without replacement
If you need assistance please contact our local Siemens office
Price data
Price Group42J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsECCN : N / AL : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,135 Kg
