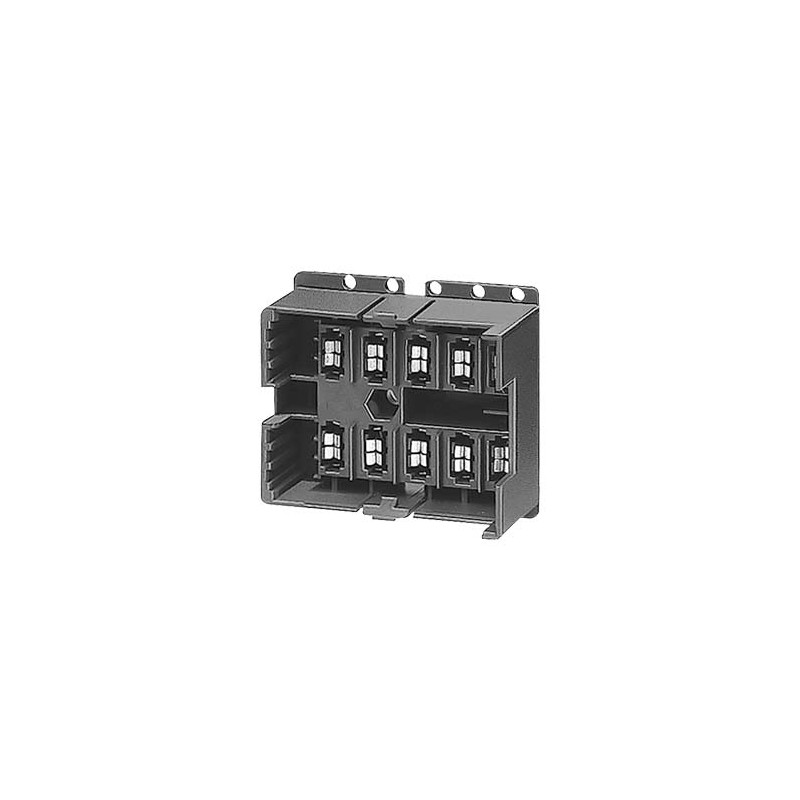

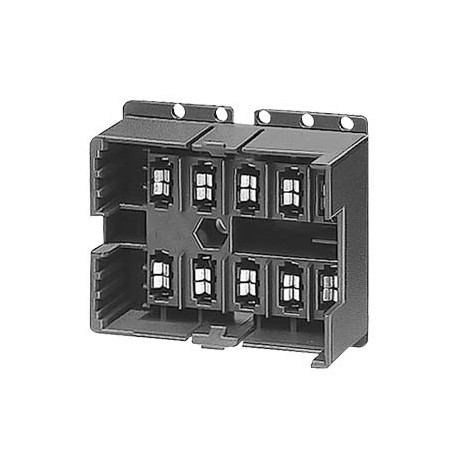

3TX4491-2A SIEMENS Plug-in base soldering pin connection for printed circuit boards for 3TF2, 3TH2, 3TK2, 45..
3TX4491-2A
SIEMENS
5
Plug-in base soldering pin connection for printed circuit boards for 3TF2, 3TH2, 3TK2, 45 mm wide
Low-voltage industrial components > Power contactor, AC switching
CONTROL AND CONTACTORS > Contactor relays
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲ETIM: EC000066 - Power contactor, AC switching
| Value | Unit | |
|---|---|---|
| Voltage type for actuating (EF008242) | - | |
| Rated operation current Ie at AC-1, 400 V (EF001393) | - | A |
| Number of normally closed contacts as main contact (EF001375) | - | |
| Number of auxiliary contacts as normally closed contact (EF001377) | - | |
| Rated operation current Ie at AC-4, 400 V (EF008495) | - | A |
| Rated operation power NEMA (EF011960) | - | kW |
| Modular version (EF001126) | - | |
| Rated operation power at AC-3, 400 V (EF001364) | - | kW |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - | V |
| Number of main contacts as normally open contact (EF001374) | - | |
| Rated operation current Ie at AC-3, 400 V (EF001392) | - | A |
| Rated control supply voltage Us at DC (EF003980) | - | V |
| Type of electrical connection of main circuit (EF006819) | - | |
| Number of auxiliary contacts as normally open contact (EF001376) | - | |
| Rated operation power at AC-4, 400 V (EF008496) | - | kW |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - | V |
| Product | ||
| Article Number (Market Facing Number) | 3TX4491-2A | |
| Product Description | Plug-in base soldering pin connection for printed circuit boards for 3TF2, 3TH2, 3TK2, 45 mm wide | |
| Product family | Not available | |
| Product Lifecycle (PLM) | PM410:Product cancellation | |
| PLM Effective Date | Product is cancelled since: 01.04.2020 | |
| Price data | ||
| Price Group | 41A | |
| Surcharge for Raw Materials | None | |
| Metal Factor | None | |
| Delivery information | ||
| Export Control Regulations | ECCN : N / AL : N | |
| Standard lead time ex-works | 20 Day/Days | |
| Net Weight (kg) | 0,033 Kg | |
| Product Dimensions (W x L x H) | Not available | |
| Packaging Dimension | 55,00 x 229,00 x 34,00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Minimum order quantity | 5 | |
| Additional Product Information | ||
| EAN | 4011209054684 | |
| UPC | 754554203348 | |
| Commodity Code | 85369095 | |
| LKZ_FDB/ CatalogID | CC-IC10 | |
| Product Group | 5800 | |
| Group Code | R711 | |
| Country of origin | Turkey | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |
| Classifications | ||
| Not available | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3TX4491-2A 3TX4491-2A EN_3TX4491-2A.pdf | 162 Kbytes |
|
