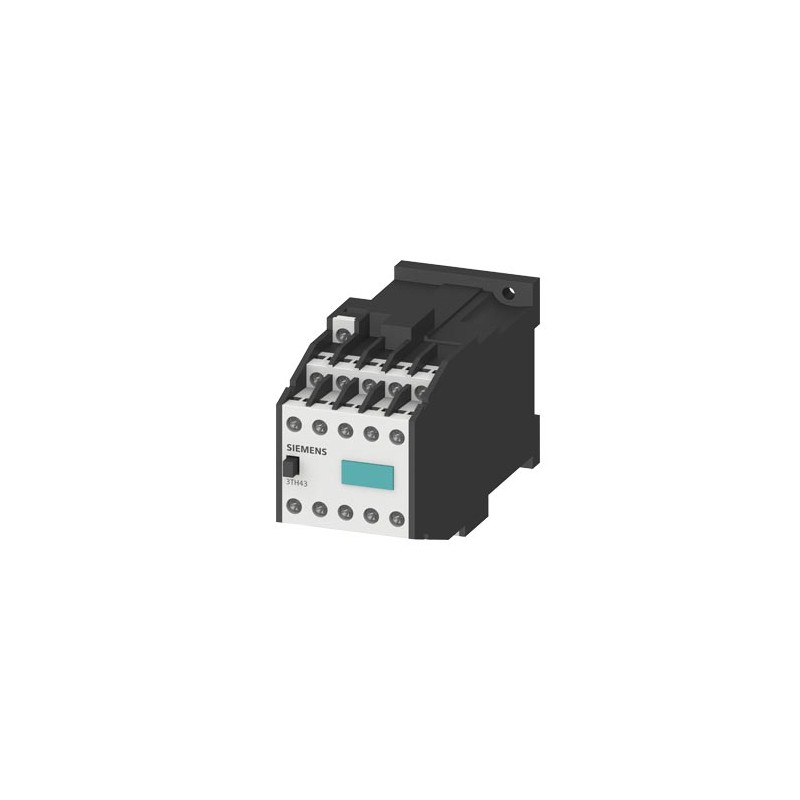

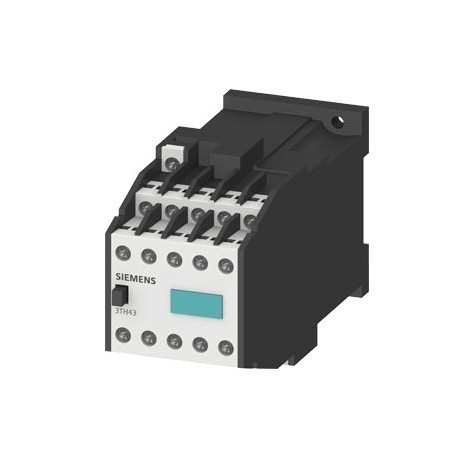

3TH4355-0LF4 SIEMENS For contactor relays 55E, EN 50011 5 NO + 5 NC, screw terminal DC operation DC operatio.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3TH4355-0LF4 SIEMENS For contactor relays 55E, EN 50011 5 NO + 5 NC, screw terminal DC operation DC operatio..

3TH4355-0LF4

SIEMENS

For contactor relays 55E, EN 50011 5 NO + 5 NC, screw terminal DC operation DC operation 110 V DC Integr. varistor

More details


Low-voltage industrial components > Contactor relay

CONTROL AND CONTACTORS > Contactor relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $244.32
Unit price: $244.32
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

For contactor relays 55E, EN 50011 5 NO + 5 NC, screw terminal DC operation DC operation 110 V DC Integr. varistor
product designationAuxiliary contactor
product type designation3TH4
size of contactor0
reference code according to IEC 81346-2K
Substance Prohibitance (Date)03/01/2017
ambient temperature during operation-40 ... +70 °C
type of voltage of the control supply voltageDC
control supply voltage at DC
● rated value110 V
design of the surge suppressorwith varistor
number of NC contacts for auxiliary contacts5
● delayed switching0
● lagging switching0
● make-before-break switching0
number of NO contacts for auxiliary contacts5
● delayed switching0
● leading contact0
● make-before-break switching0
number of CO contacts for auxiliary contacts0
identification number and letter for switching elements55 E
operational current at AC-15
● at 230 V rated value10 A
● at 400 V rated value6 A
fastening methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
height78 mm
width55 mm
depth135 mm
type of electrical connection for auxiliary and control circuitscrew-type terminals
Safety related data
B10 value with high demand rate according to SN 319201 000 000; With 0.3 x Ie

Downloads and manuals

protection class IP on the front according to IEC 60529IP00
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Tripping characteristics, I²t, Let-through current
Further characteristics (e.g. electrical endurance, switching frequency)
last modified:12/23/2020
Date
5/10/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3TH4355-0LF4
Product DescriptionFor contactor relays 55E, EN 50011 5 NO + 5 NC, screw terminal DC operation DC operation 110 V DC Integr. varistor
Product family3TH4 contactor relays, 8- and 10-pole
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41A / 41A
Surcharge for Raw MaterialsNone
Metal FactorLBP-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)0,700 Kg
Packaging Dimension58,00 x 82,00 x 153,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209368187
UPCNot available
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5801
Group CodeR711
Country of originChina
Compliance with the substance restrictions according to RoHS directiveSince: 01.03.2017
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-10-01
eClass7.127-37-10-01
eClass827-37-10-01
eClass927-37-10-01
eClass9.127-37-10-01
ETIM5EC000196
ETIM6EC000196
ETIM7EC000196
ETIM8EC000196
IDEA44755
UNSPSC1539-12-15-29

ETIM data

ETIM: EC000196 - Contactor relay

Value Unit
Mounting method (EF000003) -
Manual operation possible (EF005881) -
Interface (EF000594) -
With LED indication (EF005950) -
Rated control supply voltage Us at DC (EF003980) ['-', '110']V
Voltage type for actuating (EF008242) DC
Rated operation current Ie, 400 V (EF001378) 6A
Connection type auxiliary circuit (EF006820) Screw connection
Number of auxiliary contacts as normally closed contact (EF001377) 5
Number of auxiliary contacts as normally open contact (EF001376) 5
Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) 0
Number of auxiliary contacts as normally open contact, leading (EF007282) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V
