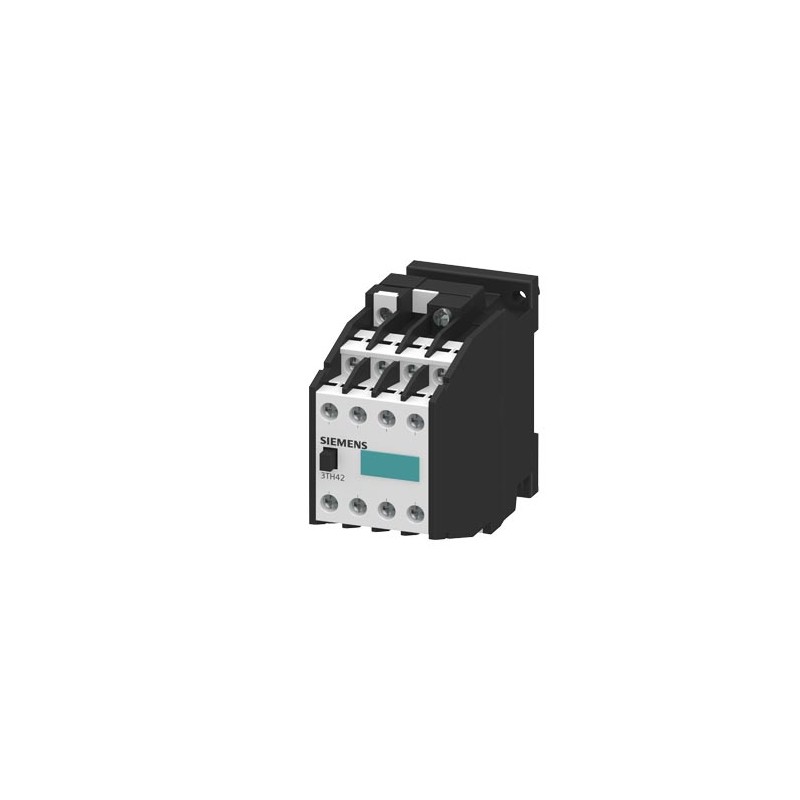

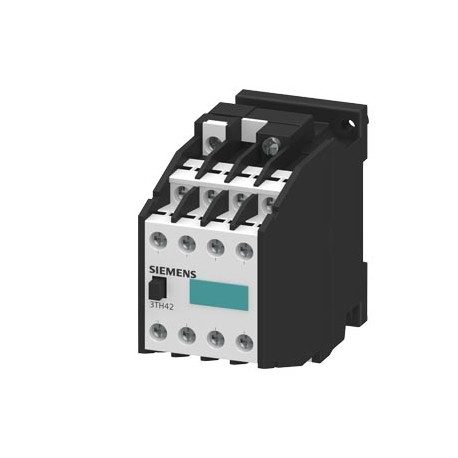

3TH4280-0AM0 SIEMENS Contactor relay, 80E, DIN EN 50011, 8 NO, screw terminal AC operation 220 V 50 Hz View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3TH4280-0AM0 SIEMENS Contactor relay, 80E, DIN EN 50011, 8 NO, screw terminal AC operation 220 V 50 Hz

3TH4280-0AM0

SIEMENS

Contactor relay, 80E, DIN EN 50011, 8 NO, screw terminal AC operation 220 V 50 Hz

SIRIUS Auxiliary contactor. 80 E DIN EN 50011 8NA, screw connection AC 220 V 50HZ DRIVE.

More details


CONTROL AND CONTACTORS > Contactor relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $103.38
Unit price: $103.38
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Contactor relay, 80E, DIN EN 50011, 8 NO, screw terminal AC operation 220 V 50 Hz
product designationAuxiliary contactor
product type designation3TH4
size of contactor0
reference code according to IEC 81346-2K
Substance Prohibitance (Date)12/31/2099
ambient temperature during operation-25 ... +55 °C
type of voltage of the control supply voltageAC
control supply voltage at AC
● at 50 Hz rated value220 V
● at 60 Hz rated value220 V
control supply voltage frequency
● 1 rated value50 Hz
● 2 rated value50 Hz
number of NC contacts for auxiliary contacts0
● delayed switching0
● lagging switching0
● make-before-break switching0
number of NO contacts for auxiliary contacts8
● delayed switching0
● leading contact0
● make-before-break switching0
number of CO contacts for auxiliary contacts0
identification number and letter for switching elements80 E
operational current at AC-15
● at 230 V rated value10 A
● at 400 V rated value6 A
fastening methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
height78 mm
width45 mm
depth102 mm
type of electrical connection for auxiliary and control circuitscrew-type terminals
Safety related data
B10 value with high demand rate according to SN 319201 000 000; With 0.3 x Ie

Downloads and manuals

protection class IP on the front according to IEC 60529IP00
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Tripping characteristics, I²t, Let-through current
Further characteristics (e.g. electrical endurance, switching frequency)
last modified:12/23/2020
Date
5/13/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3TH4280-0AM0
Product DescriptionContactor relay, 80E, DIN EN 50011, 8 NO, screw terminal AC operation 220 V 50 Hz
Product family3TH4 contactor relays, 8- and 10-pole
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41A / 41A
Surcharge for Raw MaterialsNone
Metal FactorLDO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)0,417 Kg
Packaging Dimension48,00 x 82,00 x 106,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209048782
UPC754554383323
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5801
Group CodeR711
Country of originTurkey
Compliance with the substance restrictions according to RoHS directiveProduct is not RoHS-compliant
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-10-01
eClass7.127-37-10-01
eClass827-37-10-01
eClass927-37-10-01
eClass9.127-37-10-01
ETIM5EC000196
ETIM6EC000196
ETIM7EC000196
ETIM8EC000196
IDEA44755
UNSPSC1439-12-23-31
UNSPSC1539-12-15-29

ETIM data

ETIM: EC000196 - Contactor relay

Value Unit
Mounting method (EF000003) -
Manual operation possible (EF005881) -
With LED indication (EF005950) -
Interface (EF000594) -
Rated control supply voltage Us at DC (EF003980) ['-', '-']V
Voltage type for actuating (EF008242) AC
Rated operation current Ie, 400 V (EF001378) 6A
Connection type auxiliary circuit (EF006820) Screw connection
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 8
Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) 0
Number of auxiliary contacts as normally open contact, leading (EF007282) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3TH4280-0AM0 3TH4280-0AM0 EN_3TH4280-0AM0.pdf 223 Kbytes 3TH4280-0AM0 3TH4280-0AM0 EN_3TH4280-0AM0.pdf
