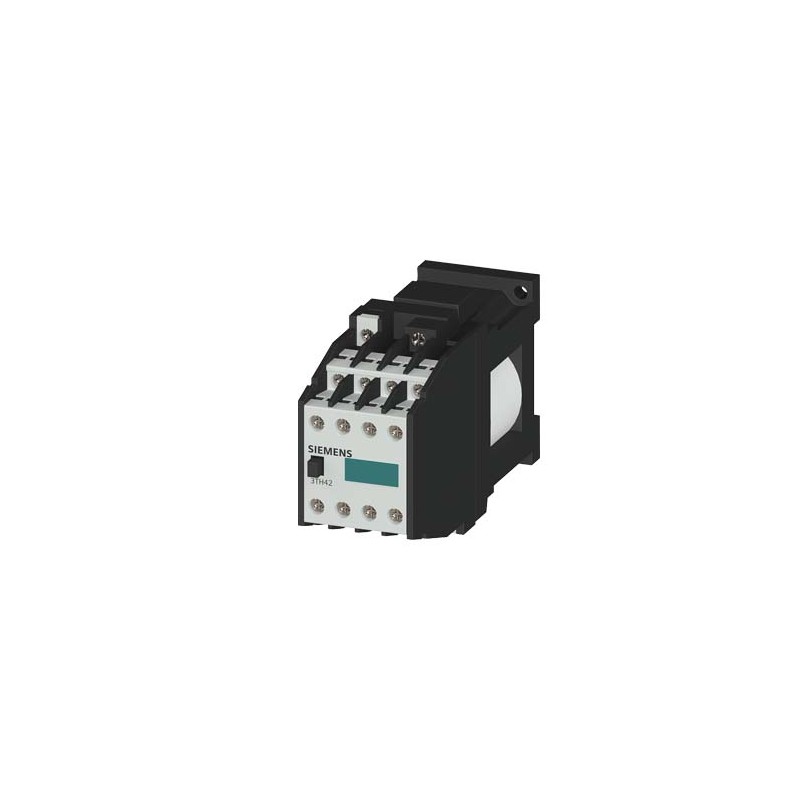

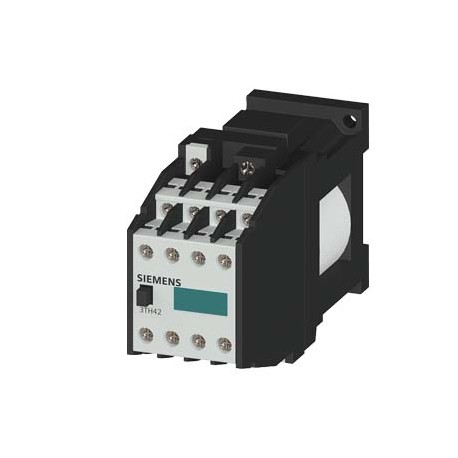

3TH4253-0LP4 SIEMENS Contactor relay, 53E, DIN EN 50011, for railway applications 5NO + 3NC, screw terminal ..
3TH4253-0LP4
SIEMENS
Contactor relay, 53E, DIN EN 50011, for railway applications 5NO + 3NC, screw terminal Operating range 0.7...1.25xUS connected to varistor 230 V DC
Low-voltage industrial components > Contactor relay
CONTROL AND CONTACTORS > Contactor relays
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲ETIM: EC000196 - Contactor relay
| Value | Unit | |
|---|---|---|
| Manual operation possible (EF005881) | - | |
| Interface (EF000594) | - | |
| With LED indication (EF005950) | - | |
| Mounting method (EF000003) | - | |
| Rated control supply voltage Us at DC (EF003980) | ['-', '230'] | V |
| Voltage type for actuating (EF008242) | DC | |
| Rated operation current Ie, 400 V (EF001378) | 6 | A |
| Connection type auxiliary circuit (EF006820) | Screw connection | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 3 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 5 | |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | 0 | |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | 0 | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - | V |
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3TH4253-0LP4 | ||||||||||||||||||||||||||||||||||||
| Product Description | Contactor relay, 53E, DIN EN 50011, for railway applications 5NO + 3NC, screw terminal Operating range 0.7...1.25xUS connected to varistor 230 V DC | ||||||||||||||||||||||||||||||||||||
| Product family | 3TH4 contactor relays, 8-pole | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Price Group | |||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | LBP----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 50 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,675 Kg | ||||||||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 48,00 x 82,00 x 153,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4011209339071 | ||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85364900 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5801 | ||||||||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Turkey | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2017 | ||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3TH4253-0LP4 3TH4253-0LP4 EN_3TH4253-0LP4.pdf | 140 Kbytes |
|
