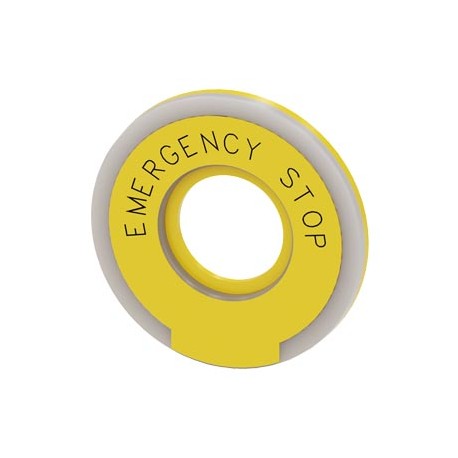

3SU1901-0BD31-0DA0 SIEMENS Washer round for EMERGENCY STOP mushroom pushbutton, yellow, illuminated, thickne.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1901-0BD31-0DA0 SIEMENS Washer round for EMERGENCY STOP mushroom pushbutton, yellow, illuminated, thickne..

3SU1901-0BD31-0DA0

SIEMENS

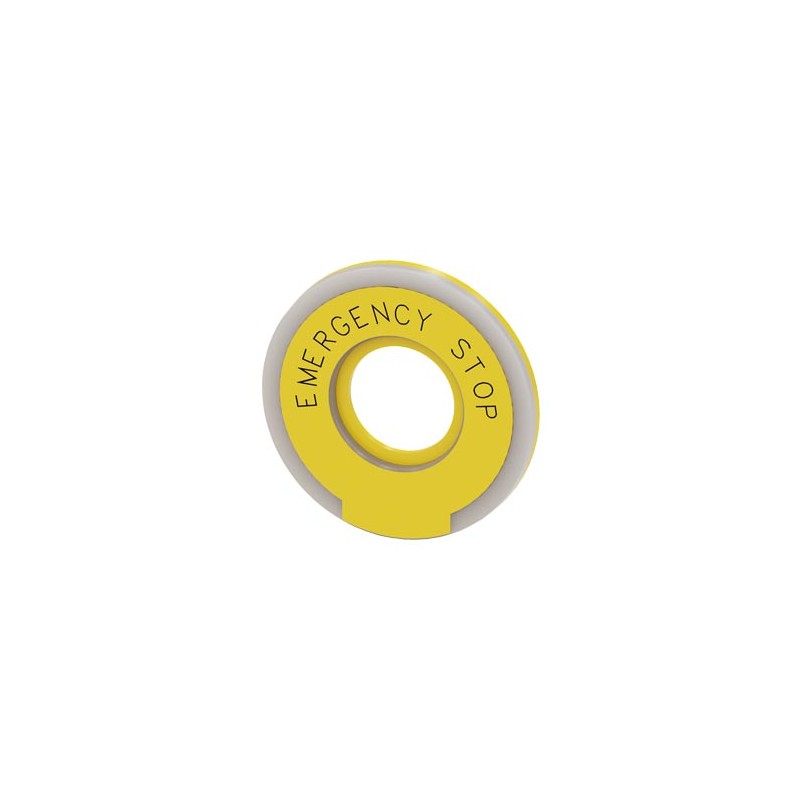

Washer round for EMERGENCY STOP mushroom pushbutton, yellow, illuminated, thickness 5 mm, outer diameter 60 mm, inside diameter 23 mm, with inscription: EMERGENCY STOP

ROUND BOTTOM PLATE FOR PUSHBUTTON SETA PARO EMERG., YELLOW, ILLUMINATED, THICKNESS 5MM, OUTER DIAMETER 75MM, INNER DIAMETER 23MM, WITH INSCRIPTION: EMERGENCY STOP

More details


Low-voltage industrial components > Text plate for command devices

CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $197.55
Unit price: $197.55
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Washer round for EMERGENCY STOP mushroom pushbutton, yellow, illuminated, thickness 5 mm, outer diameter 60 mm, inside diameter 23 mm, with inscription: EMERGENCY STOP
product brand nameSIRIUS ACT
product designationEMERGENCY STOP backing plate
design of the productilluminated (6-24 V AC/DC)
product type designation3SU1
General technical data
protection class IPIP65
degree of protection NEMA rating1, 2, 3R, 12, 13
shock resistance for railway applications according to EN 61373Category 1, Class B
vibration resistance for railway applications according to EN 61373Category 1, Class B
Substance Prohibitance (Date)10/01/2014
Ambient conditions
ambient temperature
● during operation70 ... -25 °C
● during storage and transport80 ... -40 °C
Accessories
material of accessoryPlastic
fastening method of labelstick
marking of backing plateEMERGENCY STOP
shape of backing plateRound
color of backing plateyellow (plate); black (text)
product function illuminated backing plateYes
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

Confirmation

UL

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Test Certificatesother

Type Test Certificates/Test Report

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:3/29/2022
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1901-0BD31-0DA0
Product DescriptionWasher round for EMERGENCY STOP mushroom pushbutton, yellow, illuminated, thickness 5 mm, outer diameter 60 mm, inside diameter 23 mm, with inscription: EMERGENCY STOP
Product familyLabels
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works55 Day/Days
Net Weight (kg)0,018 Kg
Packaging Dimension106,00 x 111,00 x 17,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209963849
UPC804766530241
Commodity Code85389099
LKZ_FDB/ CatalogIDCC-IC10
Product Group5454
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationNo
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-12-25
eClass7.127-37-12-25
eClass827-37-12-25
eClass927-37-12-25
eClass9.127-37-12-25
ETIM5EC000624
ETIM6EC000624
ETIM7EC000624
ETIM8EC000624
IDEA47963
UNSPSC1555-12-16-19

ETIM data

ETIM: EC000624 - Text plate for command devices

Value Unit
Shape (EF000051) -
Colour (EF000007) -
Imprint (EF000131) EMERGENCY STOP
Imprint ISO symbols (EF006094) Without imprint
Outer diameter (EF000015) 60.0mm
Height (EF000040) -mm
Width (EF000008) -mm



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3SU1901-0BD31-0DA0 3SU1901-0BD31-0DA0 EN_3SU1901-0BD31-0DA0.pdf 243 Kbytes 3SU1901-0BD31-0DA0 3SU1901-0BD31-0DA0 EN_3SU1901-0BD31-0DA0.pdf
