3SU1853-3NB00-1AD1
SIEMENS
1

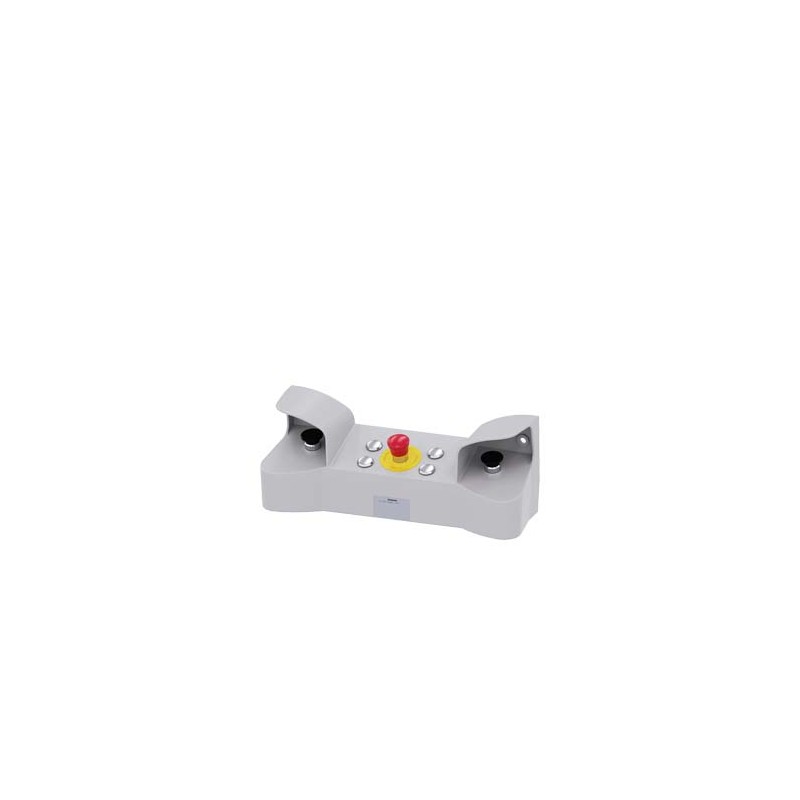

Two-hand operation console for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray, 3 control points metal, 4 additional drilled holes for 22 mm command devices 2 mushroom pushbuttons black 40 mm, 2x1NO+1NC, screw terminal, 1 EMERGENCY STOP red, 40 mm, 2 NC, screw terminal, Front mounting, with cable cut-outs for metric screw connections
Low-voltage industrial components > Two-hand control device
CONTROL AND CONTACTORS > Commanding and signaling devices
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Two-hand operation console for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray, 3 control points metal, 4 additional drilled holes for 22 mm command devices 2 mushroom pushbuttons black 40 mm, 2x1NO+1NC, screw terminal, 1 EMERGENCY STOP red, 40 mm, 2 NC, screw terminal, Front mounting, with cable cut-outs for metric screw connections | ||||||||||||||||||||||||||||||||||||||
product brand name | SIRIUS ACT | |||||||||||||||||||||||||||||||||||||
product designation | Two-hand operation console | |||||||||||||||||||||||||||||||||||||
product type designation | 3SU1 | |||||||||||||||||||||||||||||||||||||
manufacturer's article number | ||||||||||||||||||||||||||||||||||||||
● of supplied contact module | R2 = 3SU1400-1AA10-1BA0 / L2 = 3SU1400-1AA10-1BA0 / M1 = 3SU1400-1AA10-1CA0 / R1 = 3SU1400-1AA10-1CA0 / L1 = 3SU1400-1AA10-1CA0 / M2 = 3SU1400-1AA10-1CA0 | |||||||||||||||||||||||||||||||||||||
● of supplied contact module at the command point A 1 | 3SU1400-1AA10-1CA0 | |||||||||||||||||||||||||||||||||||||
● of supplied contact module at the command point A 3 | 3SU1400-1AA10-1BA0 | |||||||||||||||||||||||||||||||||||||
● of supplied contact module at the command point B 1 | 3SU1400-1AA10-1CA0 | |||||||||||||||||||||||||||||||||||||
● of supplied contact module at the command point B 3 | 3SU1400-1AA10-1CA0 | |||||||||||||||||||||||||||||||||||||
● of supplied contact module at the command point C 1 | 3SU1400-1AA10-1CA0 | |||||||||||||||||||||||||||||||||||||
● of supplied contact module at the command point C 3 | 3SU1400-1AA10-1BA0 | |||||||||||||||||||||||||||||||||||||
● of the supplied holder at the command point A | 3SU1550-0AA10-0AA0 | |||||||||||||||||||||||||||||||||||||
● of the supplied holder at the command point B | 3SU1550-0AA10-0AA0 | |||||||||||||||||||||||||||||||||||||
● of the supplied holder at the command point C | 3SU1550-0AA10-0AA0 | |||||||||||||||||||||||||||||||||||||
● of the supplied actuator at the command point A | 3SU1050-1BD10-0AA0 | |||||||||||||||||||||||||||||||||||||
● of the supplied actuator at the command point B | 3SU1050-1HB20-0AA0 | |||||||||||||||||||||||||||||||||||||
● of the supplied actuator at the command point C | 3SU1050-1BD10-0AA0 | |||||||||||||||||||||||||||||||||||||
● of supplied empty enclosure | 3SU1853-3AA00-0AA1 | |||||||||||||||||||||||||||||||||||||
● of supplied accessory | 3SU1950-0FA80-0AA0 | |||||||||||||||||||||||||||||||||||||
● of the supplied accessories at the command point B | 3SU1900-0BB31-0AT0 | |||||||||||||||||||||||||||||||||||||
Enclosure | ||||||||||||||||||||||||||||||||||||||
design of the housing | Two-hand operating console with standard components | |||||||||||||||||||||||||||||||||||||
material of the enclosure | metal | |||||||||||||||||||||||||||||||||||||
number of command points | 3 | |||||||||||||||||||||||||||||||||||||
color of the enclosure top part | grey | |||||||||||||||||||||||||||||||||||||
delivery state | ||||||||||||||||||||||||||||||||||||||
● as a kit | No | |||||||||||||||||||||||||||||||||||||
● pre-wired on strip terminal | No | |||||||||||||||||||||||||||||||||||||
fastening method of the enclosure | Horizontal | |||||||||||||||||||||||||||||||||||||
Actuator | ||||||||||||||||||||||||||||||||||||||
design of the actuating element | A = mushroom pushbutton / B = EMERGENCY STOP mushroom pushbutton / C = mushroom pushbutton | |||||||||||||||||||||||||||||||||||||
principle of operation of the actuating element | A = momentary contact / B = latching / C = momentary contact | |||||||||||||||||||||||||||||||||||||
product feature | ||||||||||||||||||||||||||||||||||||||
● lockout | No | |||||||||||||||||||||||||||||||||||||
● staggered switching | No | |||||||||||||||||||||||||||||||||||||
color of the actuating element | A = black / B = red / C = black | |||||||||||||||||||||||||||||||||||||
material of the actuating element | metal | |||||||||||||||||||||||||||||||||||||
shape of the actuating element | round | |||||||||||||||||||||||||||||||||||||
number of contact modules | 6 | |||||||||||||||||||||||||||||||||||||
type of unlocking device | A = none / B = rotate to unlock / C = none | |||||||||||||||||||||||||||||||||||||
Front ring | ||||||||||||||||||||||||||||||||||||||
product component front ring | Yes | |||||||||||||||||||||||||||||||||||||
material of the front ring | metal | |||||||||||||||||||||||||||||||||||||
color of the front ring | silver | |||||||||||||||||||||||||||||||||||||
Holder | ||||||||||||||||||||||||||||||||||||||
material of the holder | Metal | |||||||||||||||||||||||||||||||||||||
General technical data | ||||||||||||||||||||||||||||||||||||||
product function | ||||||||||||||||||||||||||||||||||||||
● positive opening | Yes | |||||||||||||||||||||||||||||||||||||
● EMERGENCY OFF function | Yes | |||||||||||||||||||||||||||||||||||||
● EMERGENCY STOP function | Yes | |||||||||||||||||||||||||||||||||||||
product component stand/pedestal | No | |||||||||||||||||||||||||||||||||||||
protection class IP | IP66 | |||||||||||||||||||||||||||||||||||||
degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 | |||||||||||||||||||||||||||||||||||||
shock resistance according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms | |||||||||||||||||||||||||||||||||||||
vibration resistance according to IEC 60068-2-6 | 10 ... 500 Hz: 5g | |||||||||||||||||||||||||||||||||||||
reference code according to IEC 81346-2 | S | |||||||||||||||||||||||||||||||||||||
continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A | |||||||||||||||||||||||||||||||||||||
continuous current of the quick DIAZED fuse link | 10 A | |||||||||||||||||||||||||||||||||||||
continuous current of the DIAZED fuse link gG | 10 A | |||||||||||||||||||||||||||||||||||||
Substance Prohibitance (Date) | 10/01/2014 | |||||||||||||||||||||||||||||||||||||
Auxiliary circuit | ||||||||||||||||||||||||||||||||||||||
design of the contact of auxiliary contacts | Silver alloy | |||||||||||||||||||||||||||||||||||||
number of NC contacts for auxiliary contacts | 4 | |||||||||||||||||||||||||||||||||||||
number of NO contacts for auxiliary contacts | 2 | |||||||||||||||||||||||||||||||||||||
Connections/ Terminals | ||||||||||||||||||||||||||||||||||||||
type of electrical connection on enclosure | Cable routing at the rear 2 x M25 | |||||||||||||||||||||||||||||||||||||
Safety related data | ||||||||||||||||||||||||||||||||||||||
B10 value with high demand rate according to SN 31920 | 100 000 | |||||||||||||||||||||||||||||||||||||
proportion of dangerous failures | ||||||||||||||||||||||||||||||||||||||
● with low demand rate according to SN 31920 | 20 % | |||||||||||||||||||||||||||||||||||||
● with high demand rate according to SN 31920 | 20 % | |||||||||||||||||||||||||||||||||||||
failure rate [FIT] with low demand rate according to SN 31920 | 100 FIT | |||||||||||||||||||||||||||||||||||||
Ambient conditions | ||||||||||||||||||||||||||||||||||||||
ambient temperature | ||||||||||||||||||||||||||||||||||||||
● during operation | -25 ... +70 °C | |||||||||||||||||||||||||||||||||||||
● during storage | -40 ... +80 °C | |||||||||||||||||||||||||||||||||||||
environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) | |||||||||||||||||||||||||||||||||||||
Installation/ mounting/ dimensions | ||||||||||||||||||||||||||||||||||||||
fastening method of modules and accessories | Front plate mounting | |||||||||||||||||||||||||||||||||||||
height | 185.6 mm | |||||||||||||||||||||||||||||||||||||
width | 492.4 mm | |||||||||||||||||||||||||||||||||||||
depth | 159.5 mm | |||||||||||||||||||||||||||||||||||||
Accessories | ||||||||||||||||||||||||||||||||||||||
number of backing plates | 1 | |||||||||||||||||||||||||||||||||||||
marking of backing plate | EMERGENCY-STOP | |||||||||||||||||||||||||||||||||||||
color of backing plate | Yellow | |||||||||||||||||||||||||||||||||||||
Certificates/ approvals | ||||||||||||||||||||||||||||||||||||||
Downloads and manuals | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
Further information | ||||||||||||||||||||||||||||||||||||||
Information- and Downloadcenter (Catalogs, Brochures,…) | ||||||||||||||||||||||||||||||||||||||
Industry Mall (Online ordering system) | ||||||||||||||||||||||||||||||||||||||
Cax online generator | ||||||||||||||||||||||||||||||||||||||
Service&Support (Manuals, Certificates, Characteristics, FAQs,...) | ||||||||||||||||||||||||||||||||||||||
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...) | ||||||||||||||||||||||||||||||||||||||
last modified: | 1/26/2022 | |||||||||||||||||||||||||||||||||||||
Date 5/14/2022 | Subject to change without notice © Copyright Siemens 2022 |
Product | |||||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3SU1853-3NB00-1AD1 | ||||||||||||||||||||||||||||||||||||
Product Description | Two-hand operation console for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray, 3 control points metal, 4 additional drilled holes for 22 mm command devices 2 mushroom pushbuttons black 40 mm, 2x1NO+1NC, screw terminal, 1 EMERGENCY STOP red, 40 mm, 2 NC, screw terminal, Front mounting, with cable cut-outs for metric screw connections | ||||||||||||||||||||||||||||||||||||
Product family | Two-hand operation consoles | ||||||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
Price data | |||||||||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 41J / 41J | ||||||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
Metal Factor | None | ||||||||||||||||||||||||||||||||||||
Delivery information | |||||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
Standard lead time ex-works | 55 Day/Days | ||||||||||||||||||||||||||||||||||||
Net Weight (kg) | 5,120 Kg | ||||||||||||||||||||||||||||||||||||
Packaging Dimension | 170,00 x 600,00 x 110,00 | ||||||||||||||||||||||||||||||||||||
Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
Additional Product Information | |||||||||||||||||||||||||||||||||||||
EAN | 4011209953802 | ||||||||||||||||||||||||||||||||||||
UPC | 804766075483 | ||||||||||||||||||||||||||||||||||||
Commodity Code | 85365080 | ||||||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
Product Group | 5454 | ||||||||||||||||||||||||||||||||||||
Group Code | R711 | ||||||||||||||||||||||||||||||||||||
Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 | ||||||||||||||||||||||||||||||||||||
Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | No | ||||||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
Classifications | |||||||||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Prewiring on terminal rail (EF002404) | false | |
Suitable for emergency stop (EF001433) | true | |
With switch lock (EF002405) | false | |
Number of contacts as normally closed contact (EF008255) | 4 | |
Number of contacts as normally open contact (EF008256) | 2 | |
Version as assembly kit (EF002406) | false | |
Scheme for two-hand control (EF002407) | true | |
With foot (EF002408) | false | |
Stepped switching (EF002409) | false |
