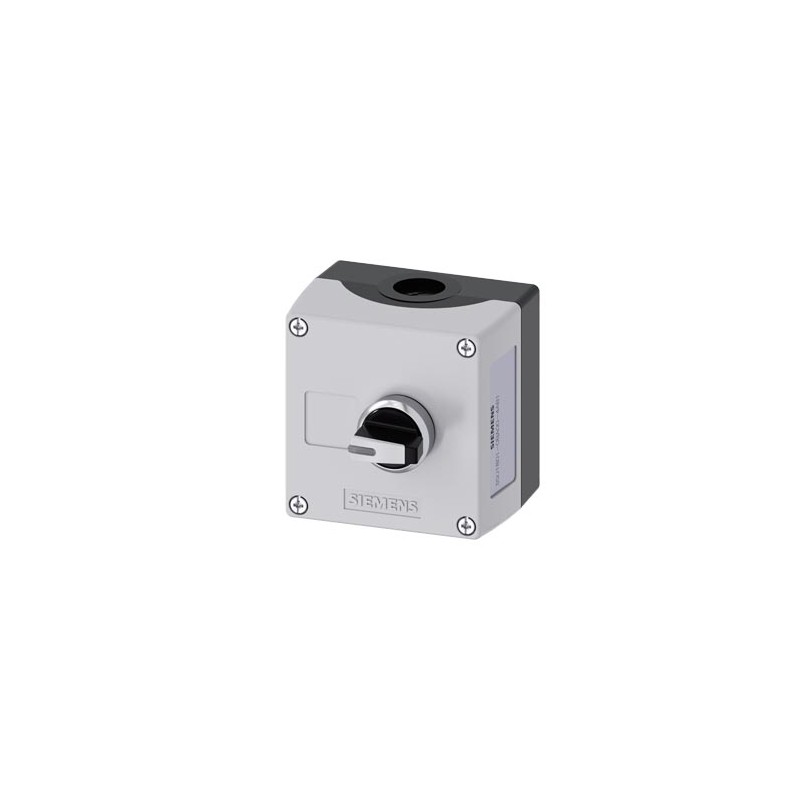

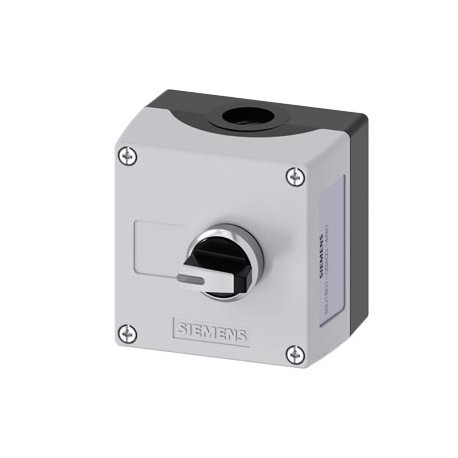

3SU1801-0BA00-4AB1 SIEMENS Enclosure for command devices 22 mm, round, enclosure material plastic, enclosure..
3SU1801-0BA00-4AB1
SIEMENS
Enclosure for command devices 22 mm, round, enclosure material plastic, enclosure top part gray, 1 control point, A = Selector switch, black, metal, 3 switch positions, momentary contact type, 1 NO, 1 NO, spring-type terminal, floor mounting, support terminal, recess for label, 1xM20 each on top and bottom
BOX FOR CONTROL AP., 22MM, ROUND, PLASTIC BOX, GREY TOP, 1 CONTROL POINT, A = BLACK CRUTCH, METAL, 3 POSITIONS, MOMENTARY, 1NA, 1NA, SPRING TERMINALS, FIXING IN BASE, SUPPORT TERMINAL, RECESS FOR INSERT, UP AND DOWN 1 X M20, OFFER 47079. Manufactured to order. Non-Cancelable Non-Returnable.
CONTROL AND CONTACTORS > Commanding and signaling devices
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲Additional data
| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3SU1801-0BA00-4AB1 | ||||||||||||||||||||||||||||||
| Product Description | Enclosure for command devices 22 mm, round, enclosure material plastic, enclosure top part gray, 1 control point, A = Selector switch, black, metal, 3 switch positions, momentary contact type, 1 NO, 1 NO, spring-type terminal, floor mounting, support terminal, recess for label, 1xM20 each on top and bottom | ||||||||||||||||||||||||||||||
| Product family | Pushbuttons and indicator lights in the enclosure for AS-Interface | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | LAO----- | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||
| Standard lead time ex-works | 55 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,365 Kg | ||||||||||||||||||||||||||||||
| Packaging Dimension | 100,00 x 130,00 x 100,00 | ||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | 4011209969148 | ||||||||||||||||||||||||||||||
| UPC | 195125186545 | ||||||||||||||||||||||||||||||
| Commodity Code | 85365080 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||
| Product Group | 5452 | ||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 | ||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000225 - Control circuit devices combination in enclosure
| Value | Unit | |
|---|---|---|
| Degree of protection (IP) (EF005474) | - | |
| Number of command positions (EF001372) | 1 | |
| Number of push buttons (EF005558) | 0 | |
| Number of indicator lights (EF001965) | 0 | |
| Number of key switches (EF005590) | 0 | |
| Number of selector switches (EF005567) | 0 | |
| Number of mushroom-shaped push-buttons (EF006670) | 0 | |
| Suitable for emergency stop (EF001433) | false | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['5', '500'] | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['5', '500'] | V |
| Rated control supply voltage Us at DC (EF003980) | ['5', '500'] | V |
| Colour housing cover (EF001373) | Grey | |
| Material housing (EF001596) | Plastic | |
| Number of contacts as normally open contact (EF008256) | 2 | |
| Number of contacts as normally closed contact (EF008255) | 0 | |
| Number of contacts as change-over contact (EF008257) | 0 | |
| Degree of protection (NEMA) (EF011959) | NEMA 1, 2, 3, 3R, 4, 4X, 12K, 13 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3SU1801-0BA00-4AB1 3SU1801-0BA00-4AB1 EN_3SU1801-0BA00-4AB1.pdf | 329 Kbytes |
|
