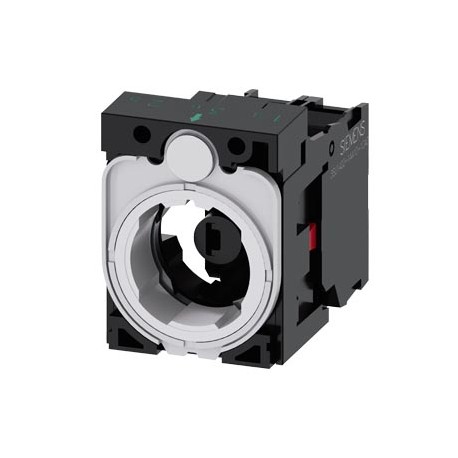

3SU1501-1AG20-1CA0 SIEMENS holder, 3-way, plastic, 1 NC, LED module, red, 6-24 V AC/DC, screw terminal View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

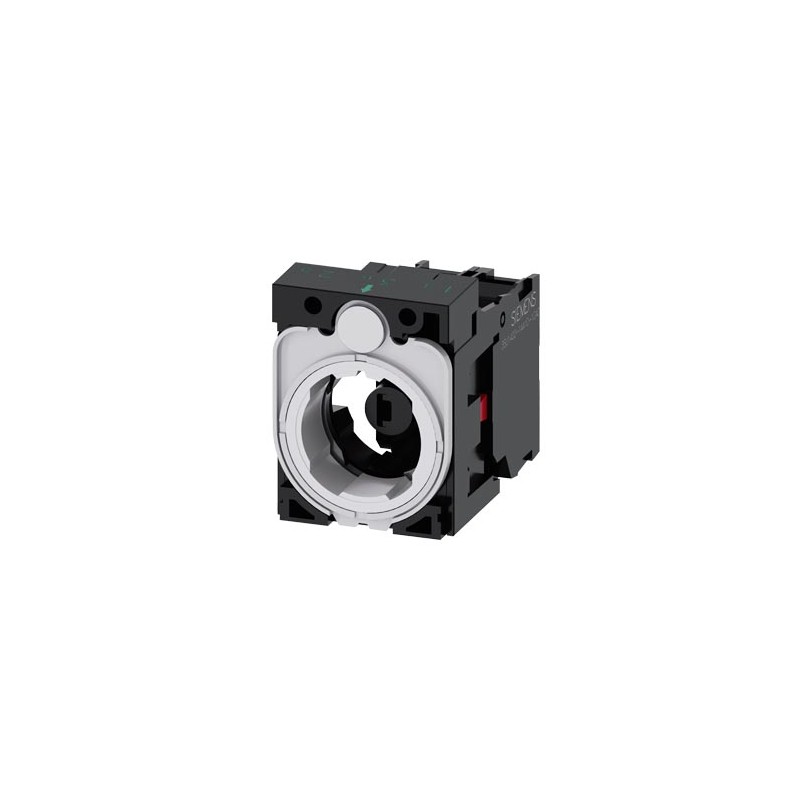

3SU1501-1AG20-1CA0 SIEMENS holder, 3-way, plastic, 1 NC, LED module, red, 6-24 V AC/DC, screw terminal

3SU1501-1AG20-1CA0

SIEMENS

holder, 3-way, plastic, 1 NC, LED module, red, 6-24 V AC/DC, screw terminal

SUPPORT FOR 3 MODULES, PLASTIC, 1NC, LED MODULE, RED, AC/DC 6-24V, SCREW TERMINALS. Manufactured to order. Non-Cancelable Non-Returnable.

More details


Low-voltage industrial components > Auxiliary contact block

CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $21.84
Unit price: $21.84
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

holder, 3-way, plastic, 1 NC, LED module, red, 6-24 V AC/DC, screw terminal
product brand nameSIRIUS ACT
product designationHolders
product type designation3SU1
manufacturer's article number
● of supplied contact module3SU1400-1AA10-1CA0
● of supplied contact module at position 13SU1400-1AA10-1CA0
● of supplied LED module3SU1401-1BG20-1AA0
● of the supplied holder3SU1500-0AA10-0AA0
Actuator
design of the actuating element3-way with module
number of contact modules1
Holder
material of the holderPlastic
Display
number of LED modules1
General technical data
product function positive openingYes
product component
● diodeYes
● lamp transformerNo
● light sourceYes
● series resistorNo
insulation voltage rated value320 V
degree of pollution3
surge voltage resistance rated value4 kV
protection class IP of the terminalIP20
shock resistance
● according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
● for railway applications according to EN 61373Category 1, Class B
vibration resistance
● according to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications according to EN 61373Category 1, Class B
operating frequency maximum3 600 1/h
mechanical service life (switching cycles) typical10 000 000
thermal current10 A
reference code according to IEC 81346-2U
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A
continuous current of the DIAZED fuse link gG10 A
Substance Prohibitance (Date)10/01/2014
operating voltage
● at AC
— at 50 Hz rated value6 ... 24 V
— at 60 Hz rated value6 ... 24 V
● at DC rated value6 ... 24 V
Power Electronics
contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)
Control circuit/ Control
inrush current of LED module maximum2 A
Auxiliary circuit
design of the contact of auxiliary contactsSilver alloy
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts0
operational current at AC-15 at 230 V rated value6 A
Connections/ Terminals
type of electrical connection
● of modules and accessoriesScrew-type terminal
type of connectable conductor cross-sections
● solid with core end processing2x (0.5 ... 0.75 mm²)
● solid without core end processing2x (1.0 ... 1.5 mm²)
● finely stranded with core end processing2x (0.5 ... 1.5 mm²)
● finely stranded without core end processing2x (1,0 ... 1,5 mm²)
● at AWG cables2x (18 ... 14)
tightening torque of the screws in the bracket1 ... 1.2 N·m
tightening torque
● with screw-type terminals0.8 ... 0.9 N·m
Lamp
type of light sourceLED
color of the light sourcered
light intensity450 ... 1 120 mcd
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted)
Installation/ mounting/ dimensions
fastening methodfront plate mounting
● of modules and accessoriesFront plate mounting
height40 mm
width30 mm
shape of the installation openinground
installation width30 mm
installation depth49.8 mm
thickness of the front plate usable1 ... 6 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

Confirmation

CCC

UL

EAC

EC/EU-Declaration of Conformity

Declaration of ConformityTest Certificatesother

UK Declaration of Conformity

Special Test Certificate

Type Test Certificates/Test Report

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/27/2022
Date
5/5/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1501-1AG20-1CA0
Product Descriptionholder, 3-way, plastic, 1 NC, LED module, red, 6-24 V AC/DC, screw terminal
Product familyHolders
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorLBO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works55 Day/Days
Net Weight (kg)0,042 Kg
Packaging Dimension40,00 x 45,00 x 30,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209964235
UPC804766074813
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-12-26
eClass7.127-37-12-26
eClass827-37-12-26
eClass927-37-12-26
eClass9.127-37-12-26
ETIM5EC001020
ETIM6EC001020
ETIM7EC001020
ETIM8EC001020
UNSPSC1539-12-22-21

ETIM data

ETIM: EC000041 - Auxiliary contact block

Value Unit
Type of electric connection (EF003961) -
Number of fault-signal switches (EF007613) -
Number of contacts as change-over contact (EF008257) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as normally closed contact (EF008255) 1
Rated operation current Ie at AC-15, 230 V (EF001385) 6A
Model (EF000010) -
Mounting method (EF000003) Front fastening
Lamp holder (EF000048) None
