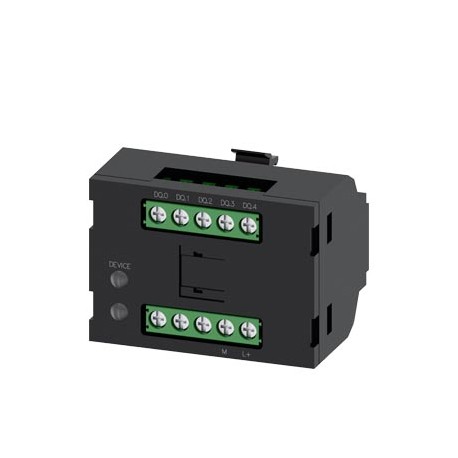

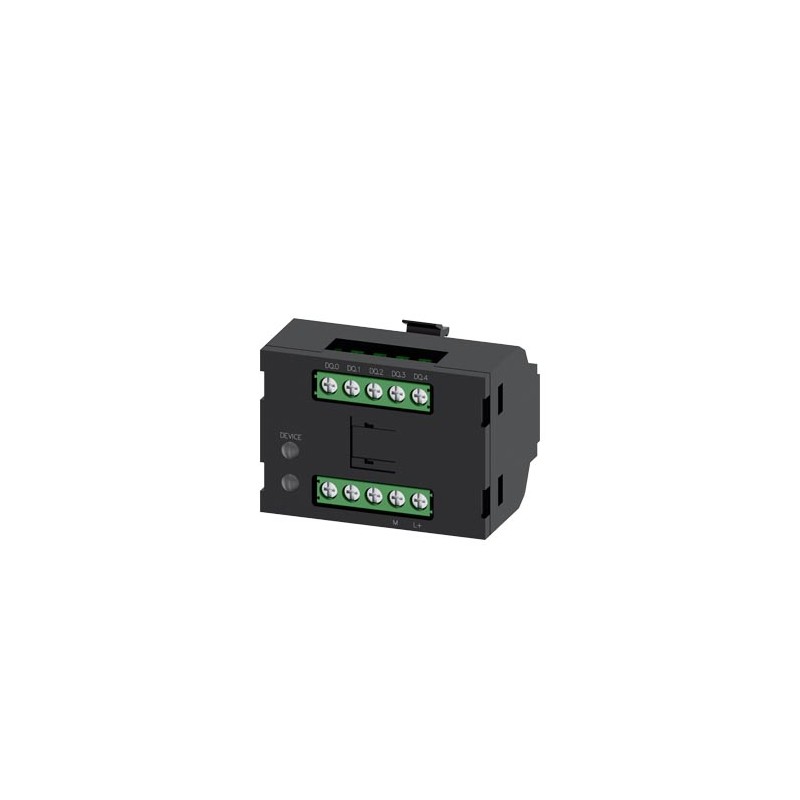

3SU1400-1GC10-1AA0 SIEMENS Electronics module for ID key-operated switch, black, Operating voltage 24 V DC, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1400-1GC10-1AA0 SIEMENS Electronics module for ID key-operated switch, black, Operating voltage 24 V DC, ..

3SU1400-1GC10-1AA0

SIEMENS

Electronics module for ID key-operated switch, black, Operating voltage 24 V DC, group ID, screw terminal, for front plate mounting

ELECTRONIC MODULE FOR SWITCH WITH KEY ID, BLACK, OPERATING VOLTAGE 24 V DC, GROUP-ID, SCREW TERMINALS, FOR FIXING ON FRONT PLATE

More details


CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $203.61
Unit price: $203.61
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Electronics module for ID key-operated switch, black, Operating voltage 24 V DC, group ID, screw terminal, for front plate mounting
product brand nameSIRIUS ACT
product designationElectronic module for ID key-operated switches
product type designation3SU1
Actuator
product extension optional light sourceNo
Contact block/ lampholder
socket designother
Display
number of LEDs4
General technical data
insulation voltage rated value30 V
degree of pollution3
type of voltage
● of the operating voltageDC
● of the input voltageDC
surge voltage resistance rated value0.8 kV
consumed current maximum49 mA
protection class IPIP20, clamping screw tightened
reference code according to IEC 81346-2P
Substance Prohibitance (Date)10/01/2014
operating voltage
● rated value18 ... 30 V
● at DC rated value24 V
operating voltage 1 at DC rated value24 V
Communication/ Protocol
protocol is supported IO-Link protocolNo
Auxiliary circuit
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts5
Inputs/ Outputs
number of digital inputs0
● safety-related0
number of digital outputs5
output voltage at digital output at DC rated value23.5 V
output current per output250 mA
Connections/ Terminals
type of electrical connectionscrew-type terminals
type of connectable conductor cross-sections
● solid without core end processing1x (0.2 ... 2.5 mm²)
● finely stranded with core end processing1x (0.25 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)
● finely stranded without core end processing1x (0.2 ... 2.5 mm²), 2x (0.2 ... 0.75 mm²)
● at AWG cables1x (26 ... 14)
tightening torque with screw-type terminals0.4 ... 0.4 N·m
Product Function
product function parameterizableNo
Safety related data
MTBF
● at 70 °C138 y
● at full load at 25 °C141 y
touch protection against electrical shockfinger-safe
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted)
Installation/ mounting/ dimensions
fastening methodfront plate mounting
● of modules and accessoriesFront plate mounting
height36 mm
width50 mm
depth36.4 mm
required spacing with side-by-side mounting
● forwards100 mm
● backwards100 mm
● upwards100 mm
● downwards100 mm
● at the side100 mm
Measuring circuit
product functionGroup ID 24 V DC
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of ConformityTest Certificates

Confirmation

UL

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Special Test Certificate

Test Certificatesother

Type Test Certificates/Test Report

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/27/2022
Date
5/4/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1400-1GC10-1AA0
Product DescriptionElectronics module for ID key-operated switch, black, Operating voltage 24 V DC, group ID, screw terminal, for front plate mounting
Product familyModules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorL-O-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works55 Day/Days
Net Weight (kg)0,060 Kg
Packaging Dimension50,00 x 81,00 x 65,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209946651
UPC804766073342
Commodity Code85365019
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-13-02
eClass7.127-37-13-02
eClass827-37-13-02
eClass927-37-13-02
eClass9.127-37-13-02
ETIM5EC000041
ETIM6EC000041
ETIM7EC000041
ETIM8EC000041
UNSPSC1546-17-15-05

ETIM data

ETIM: EC000041 - Auxiliary contact block

Value Unit
Model (EF000010) -
Number of fault-signal switches (EF007613) -
Lamp holder (EF000048) -
Mounting method (EF000003) -
Number of contacts as change-over contact (EF008257) 0
Number of contacts as normally open contact (EF008256) 5
Number of contacts as normally closed contact (EF008255) 0
Rated operation current Ie at AC-15, 230 V (EF001385) -A
Type of electric connection (EF003961) Screw connection



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3SU1400-1GC10-1AA0 3SU1400-1GC10-1AA0 EN_3SU1400-1GC10-1AA0.pdf 270 Kbytes 3SU1400-1GC10-1AA0 3SU1400-1GC10-1AA0 EN_3SU1400-1GC10-1AA0.pdf
