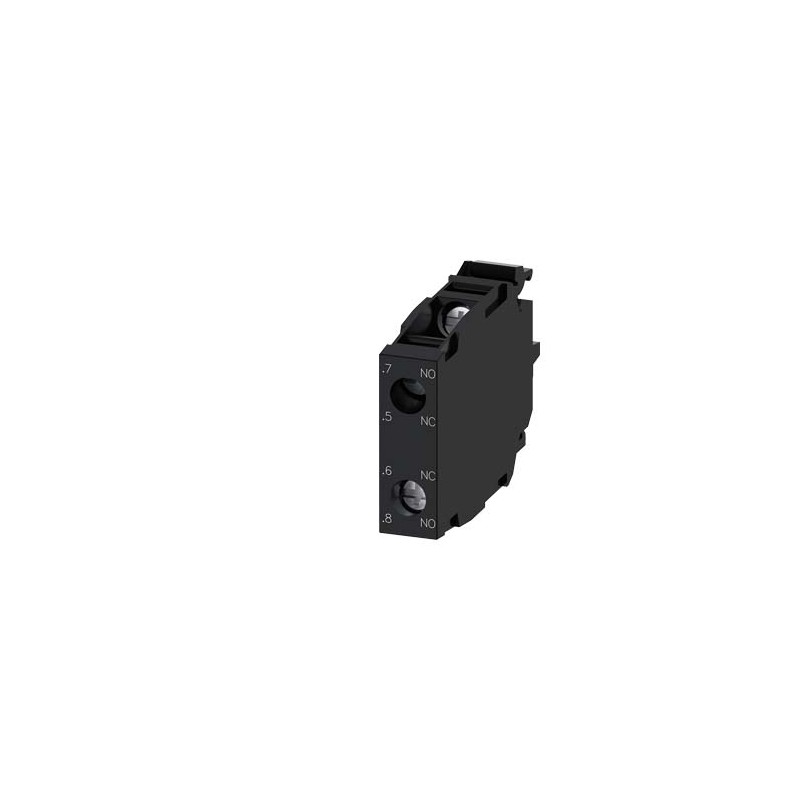

3SU1400-1AA10-1GA0 SIEMENS Contact module with 2 contact elements, 1 NO leading + 1 NC lagging, screw termin.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1400-1AA10-1GA0 SIEMENS Contact module with 2 contact elements, 1 NO leading + 1 NC lagging, screw termin..

3SU1400-1AA10-1GA0

SIEMENS

Contact module with 2 contact elements, 1 NO leading + 1 NC lagging, screw terminal, for front plate mounting

More details


CONTROL AND CONTACTORS > Commanding and signaling devices

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $10.18
Unit price: $10.18

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC000041 - Auxiliary contact block

Value Unit
Lamp holder (EF000048) -
Model (EF000010) -
Mounting method (EF000003) -
Number of fault-signal switches (EF007613) -
Number of contacts as change-over contact (EF008257) 1
Number of contacts as normally open contact (EF008256) 1
Number of contacts as normally closed contact (EF008255) 1
Rated operation current Ie at AC-15, 230 V (EF001385) 4A
Type of electric connection (EF003961) Screw connection


Contact module with 2 contact elements, 1 NO leading + 1 NC lagging, screw terminal, for front plate mounting
Product brand nameSIRIUS ACT
Product designationContact module
Product type designation3SU1
General technical data
Product function
● positive openingYes
Insulation voltage
● rated value500 V
Degree of pollution3
Type of voltage
● of the operating voltageAC/DC
● of the input voltageAC/DC
Surge voltage resistance rated value6 kV
Protection class IP
● of the enclosureIP40
● of the terminalIP20
Shock resistance
● acc. to IEC 60068-2-27Sinusoidal half-wave 50 g / 11 ms
● for railway applications acc. to DIN EN 61373Category 1, Class B
Vibration resistance
● acc. to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications acc. to DIN EN 61373Category 1, Class B
Operating frequency maximum3 600 1/h
Mechanical service life (switching cycles)
● typical10 000 000
Electrical endurance (switching cycles)
● typical10 000 000
Thermal current10 A
Reference code acc. to DIN EN 81346-2S
Reference code acc. to DIN EN 61346-2S
Continuous current of the C characteristic MCB10 A
Operating voltage
● at AC
— at 50 Hz rated value5 ... 500 V
— at 60 Hz rated value5 ... 500 V
● at DC
— rated value5 ... 500 V
Power Electronics
Contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)
Auxiliary circuit
Design of the contact of auxiliary contactsSilver alloy
Number of NC contacts for auxiliary contacts1
● lagging switching1
Number of NO contacts for auxiliary contacts1
● leading contact1
Operating current at AC-12
● at 24 V rated value10 A
● at 48 V rated value10 A
● at 110 V rated value10 A
● at 230 V rated value8 A
● at 400 V rated value6 A
Operating current at AC-15
● at 24 V rated value6 A
● at 48 V rated value6 A
● at 110 V rated value6 A
● at 230 V rated value4 A
● at 400 V rated value3 A
● at 500 V rated value1.4 A
Operating current at DC-12
● at 24 V rated value10 A
● at 48 V rated value5 A
Operating current at DC-13
● at 24 V rated value3 A
● at 48 V rated value1.5 A
● at 110 V rated value0.7 A
● at 230 V rated value0.3 A
● at 400 V rated value0.1 A
● at 500 V rated value0.1 A
Connections/ Terminals
Type of electrical connectionscrew-type terminals
Type of connectable conductor cross-sections
● solid with core end processing2x (0.5 ... 0.75 mm²)
● solid without core end processing2x (1.0 ... 1.5 mm²)
● finely stranded with core end processing2x (0.5 ... 1.5 mm²)
● finely stranded without core end processing2x (1,0 ... 1,5 mm²)
● at AWG conductors2x (18 ... 14)
Tightening torque
● with screw-type terminals0.8 ... 0.9 N·m
Ambient conditions
Ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
Environmental category during operation acc. to IEC 607213M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted)
Installation/ mounting/ dimensions
Mounting typefront panel mounting
● of modules and accessoriesFront plate mounting
Height34 mm
Width9.8 mm
Depth49.7 mm
Certificates/ approvals
General Product ApprovalDeclaration of Conformity

CCC

UL

KC

EAC

EC/EU-Declaration of Conformity

Miscellaneous

Test CertificatesMarine / Shipping

Type Test Certificates/Test Report

Special Test Certificate

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

Marine / Shippingother

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:08/06/2020


Product
Article Number (Market Facing Number)3SU1400-1AA10-1GA0
Product DescriptionContact module with 2 contact elements, 1 NO leading + 1 NC lagging, screw terminal, for front plate mounting
Product familyNot available
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group41J
Surcharge for Raw MaterialsNone
Metal FactorLBO-----
Delivery information
Export Control RegulationsECCN : N / AL : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)0,018 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension35,00 x 55,00 x 10,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209950986
UPC804766505386
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
Not available

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
3SU1400-1AA10-1GA0 3SU1400-1AA10-1GA0 EN_3SU1400-1AA10-1GA0.pdf 205 Kbytes 3SU1400-1AA10-1GA0 3SU1400-1AA10-1GA0 EN_3SU1400-1AA10-1GA0.pdf
