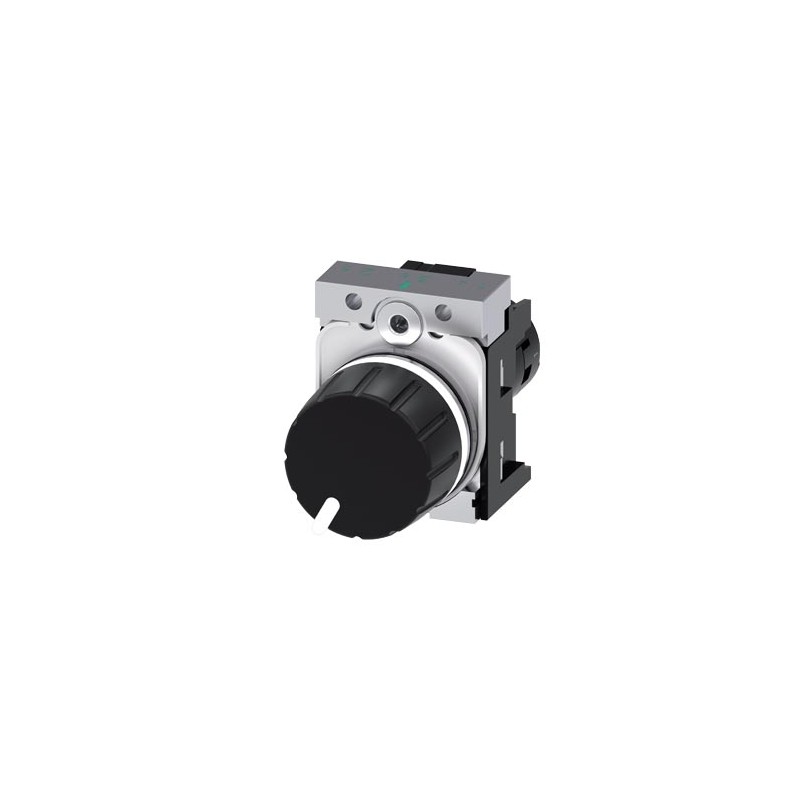

3SU1250-2PS10-1AA0 SIEMENS Potentiometer, compact, 22 mm, round, metal, black, 10k ohm, with holder, screw t.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1250-2PS10-1AA0 SIEMENS Potentiometer, compact, 22 mm, round, metal, black, 10k ohm, with holder, screw t..

3SU1250-2PS10-1AA0

SIEMENS

Potentiometer, compact, 22 mm, round, metal, black, 10k ohm, with holder, screw terminal

More details


Low-voltage industrial components > Potentiometer for command devices

CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete.

Go to successor article: 3SU1200-2PS10-1AA0 3SU1200-2PS10-1AA0

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


ETIM: EC001027 - Potentiometer for command devices

Value Unit
Resistance (EF002431) 10000.0Ohm
Power consumption (EF000346) 1.0W
Hole diameter (EF000079) 22.3mm
Number of revolutions (EF006943) ['270', '270']
Type of electric connection (EF003961) Screw connection
Degree of protection (IP) (EF005474) Other
Degree of protection (NEMA) (EF011959) NEMA 1, 2, 3, 3R, 4, 4X, 12, 13


Potentiometer, compact, 22 mm, round, metal, black, 10k ohm, with holder, screw terminal
Product brand nameSIRIUS ACT
Product designationPotentiometers
Design of the productCompact unit
Product type designation3SU1
Product lineMetal, shiny, 22 mm
Manufacturer's article number
● of the supplied holder3SU1550-0AA10-0AA0
Enclosure
Number of command points1
Actuator
Design of the operating mechanismRotary knob
Manner of function of the actuating elementInfinitely variable adjustment, angle of rotation 280°
Color
● of the actuating elementblack
Material of the actuating elementplastic
Shape of the actuating elementround
Outer diameter of the actuating element30 mm
Maximum deflection angle [°]280°
Front ring
Product component front ringNo
Holder
Material of the holderMetal
General technical data
Insulation voltage
● rated value500 V
Degree of pollution3
Protection class IPIP66, IP67, IP69(IP69K)
● of the terminalIP20
Degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
Shock resistance
● acc. to IEC 60068-2-27Sinusoidal half-wave 50 g / 11 ms
Vibration resistance
● acc. to IEC 60068-2-610 ... 500 Hz: 5g
Mechanical service life (switching cycles)
● typical25 000
Reference code acc. to DIN EN 81346-2S
Reference code acc. to DIN EN 61346-2S
Connections/ Terminals
Type of electrical connectionscrew-type terminals
Type of connectable conductor cross-sections
● solid with core end processing2x (0.5 ... 0.75 mm²)
● solid without core end processing2x (1.0 ... 1.5 mm²)
● finely stranded with core end processing2x (0.5 ... 1.5 mm²)
● finely stranded without core end processing2x (1,0 ... 1,5 mm²)
● at AWG conductors2x (18 ... 14)
Tightening torque of the screws in the bracket1 ... 1.2 N·m
Tightening torque
● with screw-type terminals0.8 ... 1 N·m
Ambient conditions
Ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
Environmental category during operation acc. to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
Height40 mm
Width30 mm
Shape of the installation openinground
Mounting diameter22.3 mm
Positive tolerance of installation diameter0.4 mm
Mounting height19.4 mm
Installation width30 mm
Installation depth46 mm
Certificates/ approvals
General Product ApprovalDeclaration of ConformityTest Certificates

CSA

UL

EAC

EC/EU-Declaration of Conformity

Miscellaneous

Type Test Certificates/Test Report

other

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:08/19/2020


Product
Article Number (Market Facing Number)3SU1250-2PS10-1AA0
Product DescriptionPotentiometer, compact, 22 mm, round, metal, black, 10k ohm, with holder, screw terminal
Product familyActuators and indicators, 22 mm, metal, shiny
Product Lifecycle (PLM)PM300:Active Product
PLM Effective DateProduct phase-out since: 01.10.2020
Price data
Price Group41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,114 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension126,00 x 92,00 x 37,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209954090
UPC804766190919
Commodity Code85334010
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originSwitzerland
Compliance with the substance restrictions according to RoHS directiveSince: 01.01.2016
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-12-27
eClass7.127-37-12-27
eClass827-37-12-27
eClass927-37-12-27
eClass9.127-37-12-27
ETIM4EC001027
ETIM5EC001027
ETIM6EC001027
ETIM7EC001027
IDEA45306
UNSPSC1539-12-22-46
