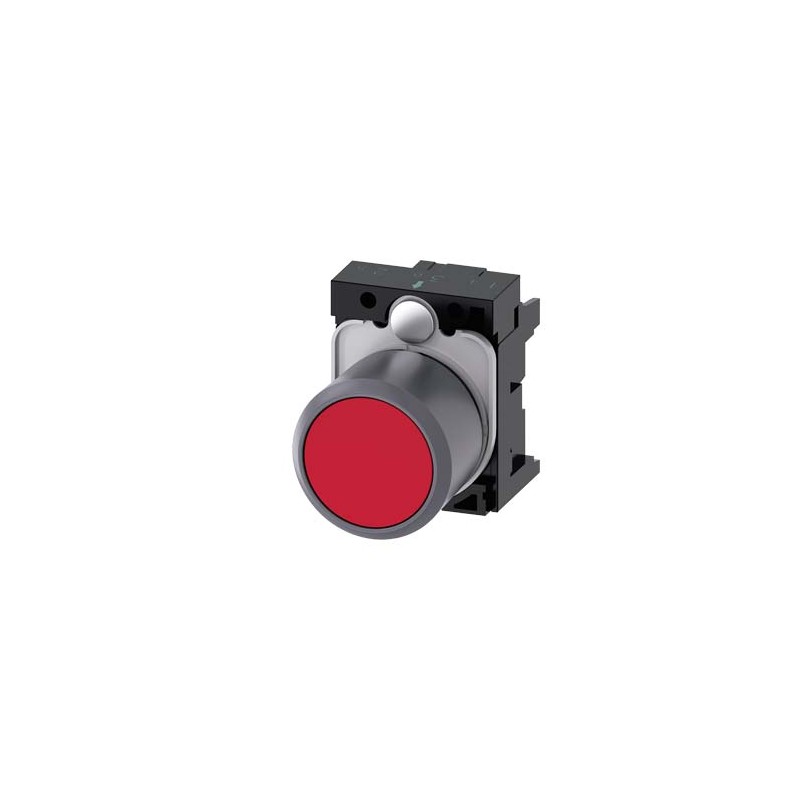

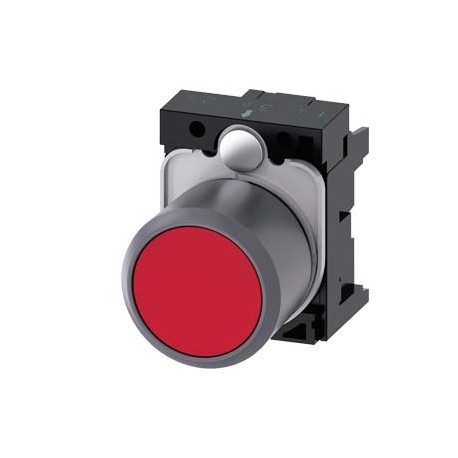

3SU1230-0EB20-0AA0 SIEMENS Pushbutton, compact, with extended stroke (12 mm), 22 mm, round, plastic with met..
3SU1230-0EB20-0AA0
SIEMENS
Pushbutton, compact, with extended stroke (12 mm), 22 mm, round, plastic with metal front ring, red, pushbutton, flat, momentary contact type, with holder
CONTROL AND CONTACTORS > Commanding and signaling devices
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲Technical data
Additional data
| Product | ||
| Article Number (Market Facing Number) | 3SU1230-0EB20-0AA0 | |
| Product Description | Pushbutton, compact, with extended stroke (12 mm), 22 mm, round, plastic with metal front ring, red, pushbutton, flat, momentary contact type, with holder | |
| Product family | Not available | |
| Product Lifecycle (PLM) | PM410:Product cancellation | |
| PLM Effective Date | Product is cancelled since: 01.05.2022 | |
| Notes | For this product a successor is available3SU1200-0EB20-0AA0 | |
| Successor information | ||
| Successor | 3SU1200-0EB20-0AA0 | |
| Successor Description | Pushbutton, compact, with extended stroke (12 mm), 22 mm, round, plastic, red, pushbutton, flat, momentary contact type, with holder | |
| Price data | ||
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J | |
| Surcharge for Raw Materials | None | |
| Metal Factor | None | |
| Delivery information | ||
| Export Control Regulations | ECCN : N / AL : N | |
| Standard lead time ex-works | 55 Day/Days | |
| Net Weight (kg) | 0,070 Kg | |
| Packaging Dimension | 60,00 x 120,00 x 30,00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 4011209961548 | |
| UPC | 804766073168 | |
| Commodity Code | 85389099 | |
| LKZ_FDB/ CatalogID | CC-IC10 | |
| Product Group | 5452 | |
| Group Code | R711 | |
| Country of origin | China | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 | |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |
| Classifications | ||
| Not available | ||
ETIM data
ETIM: EC000221 - Front element for push button
| Value | Unit | |
|---|---|---|
| With protective cover (EF005500) | - | |
| Labelled (EF001537) | - | |
| Degree of protection (NEMA), front side (EF011961) | - | |
| Colour button (EF000190) | Red | |
| Number of command positions (EF001372) | 1 | |
| Construction type lens (EF006253) | Round | |
| Hole diameter (EF000079) | 22.3 | mm |
| Width opening (EF004565) | 29.5 | mm |
| Height opening (EF004778) | 20.3 | mm |
| Type of button (EF001546) | Other | |
| Suitable for illumination (EF001142) | false | |
| Switching function latching (EF007447) | FALSE | |
| Spring-return (EF001407) | FALSE | |
| With front ring (EF006014) | true | |
| Material front ring (EF005972) | Metal | |
| Colour front ring (EF002429) | Grey | |
| Degree of protection (IP), front side (EF003118) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3SU1230-0EB20-0AA0 3SU1230-0EB20-0AA0 EN_3SU1230-0EB20-0AA0.pdf | 160 Kbytes |
|
