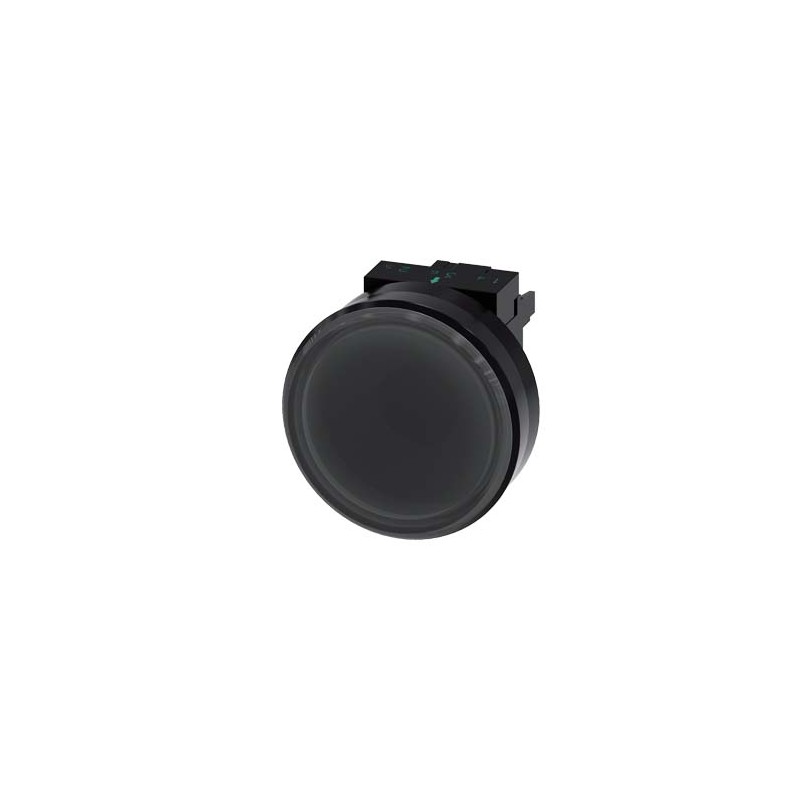

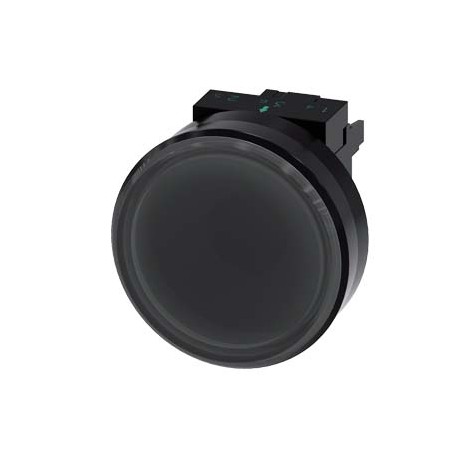

3SU1200-1SK10-2SA0 SIEMENS sensor switches, compact, 22 mm, round, plastic, black, momentary contact type, w.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1200-1SK10-2SA0 SIEMENS sensor switches, compact, 22 mm, round, plastic, black, momentary contact type, w..

3SU1200-1SK10-2SA0

SIEMENS

sensor switches, compact, 22 mm, round, plastic, black, momentary contact type, with holder, Operating voltage 24 V DC, M12 connector, 4-pole

More details


Low-voltage industrial components > Push button, complete

CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

sensor switches, compact, 22 mm, round, plastic, black, momentary contact type, with holder, Operating voltage 24 V DC, M12 connector, 4-pole
product brand nameSIRIUS ACT
product designationSensor switches
design of the productCompact unit
product type designation3SU1
product linePlastic, black, 22 mm
Enclosure
shape of the enclosure frontround
number of command points1
Actuator
principle of operation of the actuating elementcapacitive
product extension optional light sourceNo
color of the actuating elementblack
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element53.6 mm
Front ring
product component front ringNo
Holder
material of the holderPlastic
General technical data
product function positive openingNo
insulation voltage rated value32 V
degree of pollution3
type of voltage of the operating voltageDC
protection class IPIP66, IP67, IP69(IP69K)
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance
● according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
● for railway applications according to EN 61373Category 1, Class B
vibration resistance
● according to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications according to EN 61373Category 1, Class B
operating frequency maximum3 600 1/h
reference code according to IEC 81346-2S
Substance Prohibitance (Date)10/01/2014
operating voltage rated value24 V
Auxiliary circuit
design of the contact of auxiliary contactselectrical
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts1
Inputs/ Outputs
number of outputs as contact-affected switching element as NO contact for signaling function instantaneous contact1
Connections/ Terminals
type of electrical connectionM12 connector, 4-pole
tightening torque of the screws in the bracket1 ... 1.2 N·m
Lamp
type of light sourceLED
Safety related data
failure rate [FIT] with high demand rate according to SN 31920213 FIT
MTTFd1 071 y
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
fastening method
● of modules and accessoriesFront plate mounting
height40 mm
width30 mm
shape of the installation openinground
mounting diameter22.3 mm
positive tolerance of installation diameter0.4 mm
mounting height19.6 mm
installation width53.6 mm
installation depth34 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformity

Confirmation

TUEV

UL

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Test Certificatesother

Type Test Certificates/Test Report

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/27/2022
Date
5/12/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1200-1SK10-2SA0
Product Descriptionsensor switches, compact, 22 mm, round, plastic, black, momentary contact type, with holder, Operating voltage 24 V DC, M12 connector, 4-pole
Product familyActuators and indicators, 22 mm, round, plastic, black
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works55 Day/Days
Net Weight (kg)0,131 Kg
Packaging Dimension62,00 x 131,00 x 85,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209950580
UPC804766073137
Commodity Code85365019
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Imidazolidine-2-thione (2-imidazoline-2-thiol)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-12-28
eClass7.127-37-12-28
eClass827-37-12-28
eClass927-37-12-28
eClass9.127-37-12-28
ETIM5EC001028
ETIM6EC001028
ETIM7EC001028
ETIM8EC001028
IDEA45210
UNSPSC1539-12-22-16

ETIM data

ETIM: EC001028 - Push button, complete

Value Unit
Material front ring (EF005972) -
Number of command positions (EF001372) 1
Type of button (EF001546) Mushroom
Colour button (EF000190) Black
Construction type lens (EF006253) Round
Hole diameter (EF000079) 22.3mm
Width opening (EF004565) 53.6mm
Height opening (EF004778) 19.6mm
Suitable for illumination (EF001142) false
Switching function latching (EF007447) FALSE
Spring-return (EF001407) FALSE
Number of contacts as normally open contact (EF008256) 1
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as change-over contact (EF008257) 0
Type of electric connection (EF003961) Other
With front ring (EF006014) false
Colour front ring (EF002429) Other
Degree of protection (IP) (EF005474) IP67/IP69K
Degree of protection (NEMA) (EF011959) Other
Supply voltage lamp (EF006522) -V
