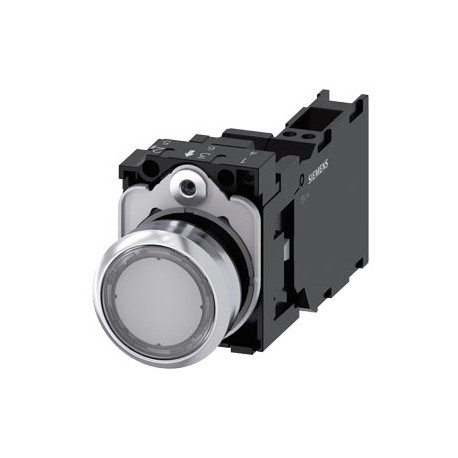

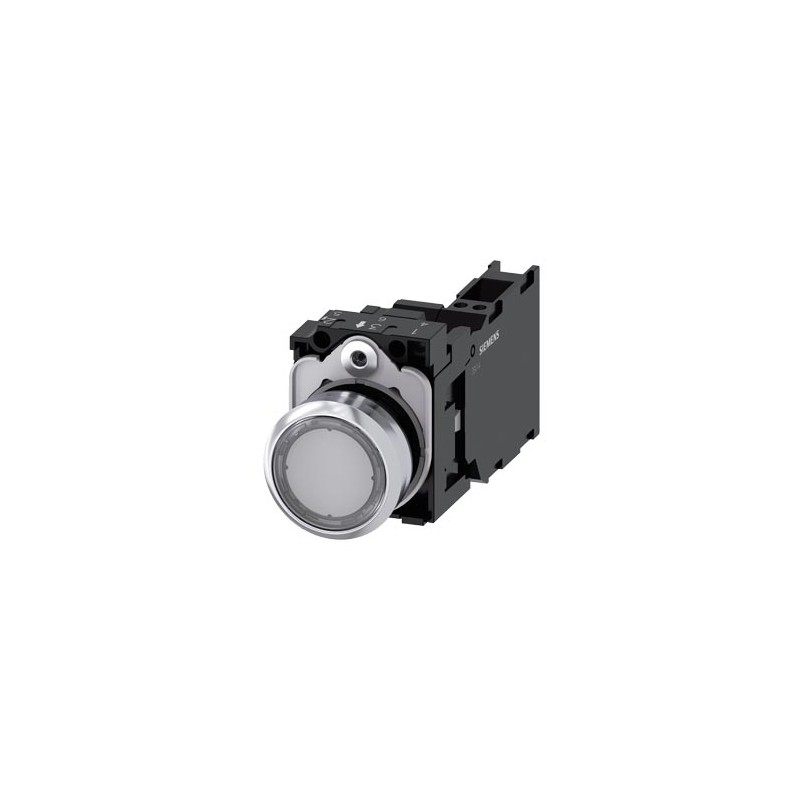

Illuminated pushbutton, 22 mm, round, metal, shiny, clear, pushbutton, flat, momentary contact type, with holder, 1 NO+1 NC, LED module with integrated LED 110 V AC, Spring-type terminal
ILLUMINATED PUSHBUTTON, 22MM, ROUND, METAL, BRIGHT, TRANSPARENT, BUTTON, GRADE, MOMENTARY, WITH STAND, 1NA+1NC, LED MODULE, WITH INTEGRATED LED 110V AC, SPRING TERMINALS. Manufactured to order. Non-Cancelable Non-Returnable.
Low-voltage industrial components > Push button, complete
CONTROL AND CONTACTORS > Commanding and signaling devices
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Illuminated pushbutton, 22 mm, round, metal, shiny, clear, pushbutton, flat, momentary contact type, with holder, 1 NO+1 NC, LED module with integrated LED 110 V AC, Spring-type terminal | ||||||||||||||||||||||||||||||||||||||
product brand name | SIRIUS ACT | |||||||||||||||||||||||||||||||||||||
product designation | Illuminated pushbuttons | |||||||||||||||||||||||||||||||||||||
design of the product | Complete unit | |||||||||||||||||||||||||||||||||||||
product type designation | 3SU1 | |||||||||||||||||||||||||||||||||||||
product line | Metal, shiny, 22 mm | |||||||||||||||||||||||||||||||||||||
manufacturer's article number | ||||||||||||||||||||||||||||||||||||||
● of supplied contact module at position 1 | 3SU1400-1AA10-3FA0 | |||||||||||||||||||||||||||||||||||||
● of supplied LED module | 3SU1401-1BC60-3AA0 | |||||||||||||||||||||||||||||||||||||
● of the supplied holder | 3SU1550-0AA10-0AA0 | |||||||||||||||||||||||||||||||||||||
● of the supplied actuator | 3SU1051-0AB70-0AA0 | |||||||||||||||||||||||||||||||||||||
number of command points | 1 | |||||||||||||||||||||||||||||||||||||
Actuator | ||||||||||||||||||||||||||||||||||||||
design of the actuating element | Button, flat | |||||||||||||||||||||||||||||||||||||
principle of operation of the actuating element | momentary contact type | |||||||||||||||||||||||||||||||||||||
product extension optional light source | Yes | |||||||||||||||||||||||||||||||||||||
color of the actuating element | clear | |||||||||||||||||||||||||||||||||||||
material of the actuating element | plastic | |||||||||||||||||||||||||||||||||||||
shape of the actuating element | round | |||||||||||||||||||||||||||||||||||||
outer diameter of the actuating element | 29.45 mm | |||||||||||||||||||||||||||||||||||||
number of contact modules | 1 | |||||||||||||||||||||||||||||||||||||
Front ring | ||||||||||||||||||||||||||||||||||||||
product component front ring | Yes | |||||||||||||||||||||||||||||||||||||
design of the front ring | Standard | |||||||||||||||||||||||||||||||||||||
material of the front ring | Metal, high gloss | |||||||||||||||||||||||||||||||||||||
color of the front ring | silver | |||||||||||||||||||||||||||||||||||||
Holder | ||||||||||||||||||||||||||||||||||||||
material of the holder | Plastic | |||||||||||||||||||||||||||||||||||||
Display | ||||||||||||||||||||||||||||||||||||||
number of LED modules | 1 | |||||||||||||||||||||||||||||||||||||
General technical data | ||||||||||||||||||||||||||||||||||||||
product function positive opening | Yes | |||||||||||||||||||||||||||||||||||||
product component light source | Yes | |||||||||||||||||||||||||||||||||||||
insulation voltage rated value | 320 V | |||||||||||||||||||||||||||||||||||||
degree of pollution | 3 | |||||||||||||||||||||||||||||||||||||
type of voltage of the operating voltage | AC/DC | |||||||||||||||||||||||||||||||||||||
surge voltage resistance rated value | 4 kV | |||||||||||||||||||||||||||||||||||||
protection class IP | IP66, IP67, IP69(IP69K) | |||||||||||||||||||||||||||||||||||||
● of the terminal | IP20 | |||||||||||||||||||||||||||||||||||||
degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 | |||||||||||||||||||||||||||||||||||||
shock resistance | ||||||||||||||||||||||||||||||||||||||
● according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms | |||||||||||||||||||||||||||||||||||||
vibration resistance | ||||||||||||||||||||||||||||||||||||||
● according to IEC 60068-2-6 | 10 ... 500 Hz: 5g | |||||||||||||||||||||||||||||||||||||
operating frequency maximum | 3 600 1/h | |||||||||||||||||||||||||||||||||||||
mechanical service life (switching cycles) typical | 3 000 000 | |||||||||||||||||||||||||||||||||||||
electrical endurance (switching cycles) typical | 10 000 000 | |||||||||||||||||||||||||||||||||||||
thermal current | 10 A | |||||||||||||||||||||||||||||||||||||
reference code according to IEC 81346-2 | S | |||||||||||||||||||||||||||||||||||||
continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A | |||||||||||||||||||||||||||||||||||||
continuous current of the quick DIAZED fuse link | 10 A | |||||||||||||||||||||||||||||||||||||
continuous current of the DIAZED fuse link gG | 10 A | |||||||||||||||||||||||||||||||||||||
Substance Prohibitance (Date) | 10/01/2014 | |||||||||||||||||||||||||||||||||||||
operating voltage | ||||||||||||||||||||||||||||||||||||||
● at AC | ||||||||||||||||||||||||||||||||||||||
— at 50 Hz rated value | 5 ... 500 V | |||||||||||||||||||||||||||||||||||||
— at 60 Hz rated value | 5 ... 500 V | |||||||||||||||||||||||||||||||||||||
● at DC rated value | 5 ... 500 V | |||||||||||||||||||||||||||||||||||||
Power Electronics | ||||||||||||||||||||||||||||||||||||||
contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) | |||||||||||||||||||||||||||||||||||||
Supply voltage | ||||||||||||||||||||||||||||||||||||||
type of voltage of the supply voltage of the light source | AC | |||||||||||||||||||||||||||||||||||||
supply voltage of the light source at AC | ||||||||||||||||||||||||||||||||||||||
● at 50 Hz rated value | 110 V | |||||||||||||||||||||||||||||||||||||
● at 60 Hz rated value | 110 V | |||||||||||||||||||||||||||||||||||||
Control circuit/ Control | ||||||||||||||||||||||||||||||||||||||
inrush current of LED module maximum | 3 A | |||||||||||||||||||||||||||||||||||||
Auxiliary circuit | ||||||||||||||||||||||||||||||||||||||
design of the contact of auxiliary contacts | Silver alloy | |||||||||||||||||||||||||||||||||||||
number of NC contacts for auxiliary contacts | 1 | |||||||||||||||||||||||||||||||||||||
number of NO contacts for auxiliary contacts | 1 | |||||||||||||||||||||||||||||||||||||
Connections/ Terminals | ||||||||||||||||||||||||||||||||||||||
type of electrical connection | spring-loaded terminals | |||||||||||||||||||||||||||||||||||||
● of modules and accessories | Spring-type terminal | |||||||||||||||||||||||||||||||||||||
type of connectable conductor cross-sections | ||||||||||||||||||||||||||||||||||||||
● solid without core end processing | 2x (0.25 ... 1.5 mm²) | |||||||||||||||||||||||||||||||||||||
● finely stranded with core end processing | 2x (0.25 ... 0.75 mm²) | |||||||||||||||||||||||||||||||||||||
● finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) | |||||||||||||||||||||||||||||||||||||
● at AWG cables | 2x (24 ... 16) | |||||||||||||||||||||||||||||||||||||
tightening torque of the screws in the bracket | 1 ... 1.2 N·m | |||||||||||||||||||||||||||||||||||||
Lamp | ||||||||||||||||||||||||||||||||||||||
type of light source | LED | |||||||||||||||||||||||||||||||||||||
color of the light source | white | |||||||||||||||||||||||||||||||||||||
light intensity | 900 ... 1 400 mcd | |||||||||||||||||||||||||||||||||||||
Ambient conditions | ||||||||||||||||||||||||||||||||||||||
ambient temperature | ||||||||||||||||||||||||||||||||||||||
● during operation | -25 ... +70 °C | |||||||||||||||||||||||||||||||||||||
● during storage | -40 ... +80 °C | |||||||||||||||||||||||||||||||||||||
environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) | |||||||||||||||||||||||||||||||||||||
Installation/ mounting/ dimensions | ||||||||||||||||||||||||||||||||||||||
fastening method | front plate mounting | |||||||||||||||||||||||||||||||||||||
● of modules and accessories | Front plate mounting | |||||||||||||||||||||||||||||||||||||
height | 40 mm | |||||||||||||||||||||||||||||||||||||
width | 30 mm | |||||||||||||||||||||||||||||||||||||
shape of the installation opening | round | |||||||||||||||||||||||||||||||||||||
mounting diameter | 22.3 mm | |||||||||||||||||||||||||||||||||||||
positive tolerance of installation diameter | 0.4 mm | |||||||||||||||||||||||||||||||||||||
mounting height | 11 mm | |||||||||||||||||||||||||||||||||||||
installation width | 29.5 mm | |||||||||||||||||||||||||||||||||||||
installation depth | 71.7 mm | |||||||||||||||||||||||||||||||||||||
Certificates/ approvals | ||||||||||||||||||||||||||||||||||||||
Downloads and manuals | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
Further information | ||||||||||||||||||||||||||||||||||||||
Information- and Downloadcenter (Catalogs, Brochures,…) | ||||||||||||||||||||||||||||||||||||||
Industry Mall (Online ordering system) | ||||||||||||||||||||||||||||||||||||||
Cax online generator | ||||||||||||||||||||||||||||||||||||||
Service&Support (Manuals, Certificates, Characteristics, FAQs,...) | ||||||||||||||||||||||||||||||||||||||
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...) | ||||||||||||||||||||||||||||||||||||||
last modified: | 1/26/2022 | |||||||||||||||||||||||||||||||||||||
Date 5/2/2022 | Subject to change without notice © Copyright Siemens 2022 |
Product | |||||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3SU1153-0AB70-3FA0 | ||||||||||||||||||||||||||||||||||||
Product Description | Illuminated pushbutton, 22 mm, round, metal, shiny, clear, pushbutton, flat, momentary contact type, with holder, 1 NO+1 NC, LED module with integrated LED 110 V AC, Spring-type terminal | ||||||||||||||||||||||||||||||||||||
Product family | Actuators and indicators, 22 mm, metal, shiny | ||||||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
Price data | |||||||||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 41J / 41J | ||||||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
Metal Factor | LAO----- | ||||||||||||||||||||||||||||||||||||
Delivery information | |||||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
Standard lead time ex-works | 55 Day/Days | ||||||||||||||||||||||||||||||||||||
Net Weight (kg) | 0,105 Kg | ||||||||||||||||||||||||||||||||||||
Packaging Dimension | 60,00 x 130,00 x 30,00 | ||||||||||||||||||||||||||||||||||||
Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
Additional Product Information | |||||||||||||||||||||||||||||||||||||
EAN | 4011209959101 | ||||||||||||||||||||||||||||||||||||
UPC | 804766475566 | ||||||||||||||||||||||||||||||||||||
Commodity Code | 85365080 | ||||||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
Product Group | 5452 | ||||||||||||||||||||||||||||||||||||
Group Code | R711 | ||||||||||||||||||||||||||||||||||||
Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 | ||||||||||||||||||||||||||||||||||||
Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
Classifications | |||||||||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Type of electric connection (EF003961) | - | |
Construction type lens (EF006253) | - | |
Number of command positions (EF001372) | 1 | |
Type of button (EF001546) | Mushroom | |
Colour button (EF000190) | Clear | |
Hole diameter (EF000079) | 22.3 | mm |
Width opening (EF004565) | 29.5 | mm |
Height opening (EF004778) | 11.0 | mm |
Suitable for illumination (EF001142) | true | |
Switching function latching (EF007447) | FALSE | |
Spring-return (EF001407) | FALSE | |
Supply voltage lamp (EF006522) | 110 | V |
Number of contacts as normally open contact (EF008256) | 1 | |
Number of contacts as normally closed contact (EF008255) | 1 | |
Number of contacts as change-over contact (EF008257) | 1 | |
With front ring (EF006014) | true | |
Material front ring (EF005972) | Plastic | |
Colour front ring (EF002429) | Chrome | |
Degree of protection (IP) (EF005474) | IP67/IP69K | |
Degree of protection (NEMA) (EF011959) | Other |
